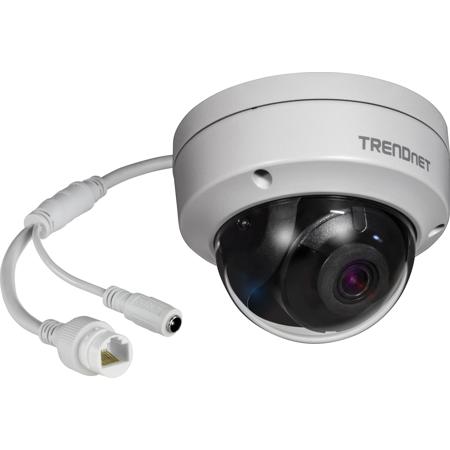

TRENDnet TV-IP315PI Indoor/Outdoor 4MP PoE Dome Day/Night Network Camera
See all TRENDnet items

TRENDnet TV-IP315PI Indoor/Outdoor 4MP PoE Dome Day/Night Network Camera, 4mm Focal Lens, 2688x1520 at 20 fps, Up to 98' Night Vision, H.264+, MJPEG, Version v1.0R

SKU: TNTVIP315PI

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TRENDnet TV-IP315PI Indoor/Outdoor 4MP PoE Dome Day/Night Network Camera Specifications

  • Lens

    Focal length: 4 mm, F2.0
    Focal depth: 20 cm +
    Lens: fixed focus
    Sensor: 1/3" progressive scan CMOS
    DNR: 3D DNR
    WDR: 120 dB
    Zoom: user define zoom area

  • Viewing Angle

    Horizontal: 83 deg.
    Vertical: 45 deg.
    Diagonal: 98 deg.

  • Minimum Illumination

    IR off: 0.01 lux
    IR on: 0 lux
    Built-in IR cut filter
    30 m IR illumination distance
    Smart IR

  • Video Resolution

    H.264, H.264+: 2688 x 1520 up to 20 fps (1920 x 1080 up to 30 fps)
    MJPEG: 640 x 360 up to 30 fps

  • Hardware Standards

    IEEE 802.1X
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3af

  • Device Interface

    10/100 Mbps PoE port
    Power port (for non-PoE installations, adapter sold separately)
    Reset button

  • Network Protocol

    IPv4, IPv6, UDP, TCP, ICMP, ONVIF Profile S and Profile G, PSIA
    DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
    NFS, SMB / CIFS
    HTTP, HTTPS
    PPPoE
    UPnP, Bonjour, RTSP, RTP, RTCP, SSL

  • Power

    Input: PoE (802.3af)
    Consumption: 5 Watts max.

  • Optional Power Supply

    Input: 100 - 240 V AC 50/60 Hz 0.5 A
    Output: 12 V DC 1 A
    5.5 mm barrel connector
    TRENDnet power adapter, model 12VDC1A (not included)

  • Management Interface

    Multi-language support: English, French, German, Russian and Spanish
    IP address filter
    QoS traffic prioritization
    Time, date and text overlay
    Image settings: brightness, contrast, saturation, hue, sharpness, smart IR, exposure time (1/3 - 1/100,000), scan rate, mirror, flip, D-WDR, back light compensation, white balance, digital noise reduction

  • Management Interface (Cont.)

    WDR enhances video quality in high contrast daytime lighting
    Digital Noise Reduction enhances night vision quality
    Recording: to computer, NAS, SMB / CIFS share, or through software
    Scheduled recording: continuous and motion detection
    Motion detection fields: define custom motion detection areas, motion sensitivity and dynamic motion analysis

  • Management Interface (Cont..)

    Privacy masks: define custom privacy mask areas
    Video tamper detection: email notification if the viewing field darkens suddenly
    Video playback interface: playback recorded video from remote storage
    Alert messages: storage full, storage error and illegal login
    Snapshot: real time snapshot, motion detection with schedule, video tamper detection with schedule

  • Management Interface (Cont...)

    Supported dynamic DNS services: Dyn.com and NO-IP.com
    Management Setting: maximum 32 user accounts
    Supports remote management
    Compatibility: Internet Explorer 9.0 or higher, Firefox 13.0 or higher, Safari 4.0 or higher

  • TRENDnetView Pro Software

    Supports up to 32 TRENDnet cameras
    Multiple language support
    Set recording options (motion detection, schedule, event trigger)
    Search and playback
    Custom viewing modes and options
    Compatibility: Windows 10, 8.1, 8, 7, Vista, XP, Windows Server 2003, 2008, 2012

  • TRENDnet IPView App

    Free iOS and Android app
    View your camera on your mobile device
    Take snapshots

  • Operating Temperature

    -30 to 60 deg. C / -22 to 140 deg. F

  • Operating Humidity

    Max. 95% non-condensing

  • Certifications

    CE
    FCC

  • Dimensions

    110 x 110 x 90mm / 4.33 x 4.33 x 3.54"

  • Weight

    476g / 16.79oz

  • UPC Code

    710931110869

About TRENDnet TV-IP315PI Indoor/Outdoor 4MP PoE Dome Day/Night Network Camera

The Indoor/Outdoor 4 MP PoE Dome Day/Night Network Camera, model TV-IP315PI, provides powerful 4-megapixel night vision in complete darkness for up to 30 meters (100 ft.) Even in extreme environments, this ultra-compact camera will function all year, thanks to an IP66 weather rated housing. Use the included pro-grade software to manage up to 32 TRENDnet cameras or download the free iOS or Android mobile app.

• 4 MP Full HD resolution
• Compact IP66 weather rated housing
• IK10 vandal proof protection
• Night vision up to 30 m (100 ft.)
• Save installation costs with Power over Ethernet (PoE)
• Program motion detection recording and email alerts
• Wide Dynamic Range image balancing
• ONVIF and IPv6 support

Power over Ethernet (PoE)
PoE offers cost savings and the flexibility to install this compact dome camera in the desired location.

Day/Night HD Surveillance
Powerful 4 MP video at 20 fps in H.264+ compression (2 MP 1080p at 30 fps) and 30 m rated night vision provide 24-hour surveillance.

Outdoor Ready
Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 - 60 deg.C (-22 - 140 deg.F).

Hardware

Compact Fixed Dome
Manually pan and tilt 75deg. to set the camera's final viewing field.

PoE
Save installation costs with Power over Ethernet (IEEE 802.3af).

Vandal Resistant
Impact protection rated with IK10.

Performance

4 Megapixel
Record 2688 x 1520 pixel video at 20 fps in H.264+ compression.

Night Vision
Night vision up to 30 m (100 ft.) in complete darkness.

Smart IR
Dynamic IR adjustment optimizes night visibility.

WDR
120 dB Wide Dynamic Range improves video quality in high contrast lighting environments.

Camera Management

Multi-Language Interface
Support for English, French, Spanish, German and Russian.

Advanced Playback
Advanced in-camera archived video review functionality.

Storage
SMB / CIFS support with notification if storage drive is full.

Motion Detection
Create motion detection windows with separate sensitivity settings and event triggers.

Recording Schedule
Define a weekly recording schedule.

Tamper Detection
Receive tamper detection video clips via email.

IPv6
IPv6 support.

ONVIF / PSIA
ONVIF (Profile S, Profile G) and PSIA compliant.

Free Apps
See live video on a mobile device with free iOS and Android apps.

Complimentary Software
Complimentary pro-grade software to manage up to TRENDnet 32 cameras.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TRENDnet TV-IP315PI Indoor/Outdoor 4MP PoE Dome Day/Night Network Camera
  • CD-ROM (Utility Software & User's Guide)
  • Quick Installation Guide
  • Camera Mounting Hardware
  • TRENDnet 3 Year Limited Warranty
