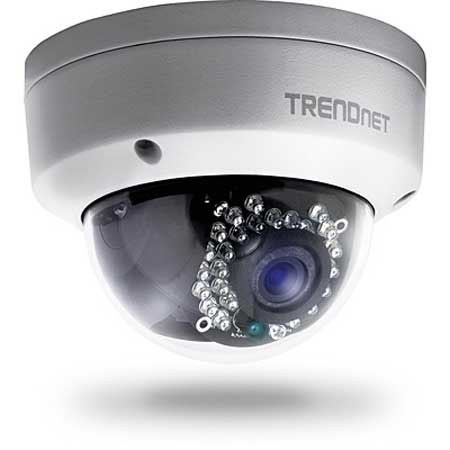

TRENDnet TV-IP321PI Outdoor HD Dome IR Network Camera
See all TRENDnet items

TRENDnet TV-IP321PI Outdoor HD Dome IR Network Camera, 1.3MP, Up to 82' Night Vision, 1280x960 Resolution at 30 fps, PoE

SKU: TNTVIP321PI
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TV-IP321PI Outdoor HD Dome IR Network Camera Specifications

  • Lens Focal length

    4mm

  • Focal depth

    20cm+

  • Aperture

    F2.0

  • Sensor

    1/3" progressive scan CMOS

  • Viewing Angle

    Horizontal: 70 deg.
    Vertical: 52 deg.
    Diagonal: 89 deg.

  • Zoom

    User-defined digital zoom

  • Minimum Illumination

    IR off: 0.01 lux
    IR on: 0 lux
    30 meter IR illumination distance
    Smart IR

  • Video

    D-WDR: 0-100 scale
    Shutter speed: 1/3 - 1/10,000
    H.264: 1280 x 960 up to 30 fps
    MJPEG: 704 x 480 up to 30 fps

  • Hardware Standards

    IEEE 802.1X
    IEEE 802.3
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3af

  • Device Interface

    10/100 Mbps PoE port
    Power port (for non-PoE installations, power adapter sold separately (12VDC1A))
    Grounding point
    Integrated articulated mounting base
    Reset button

  • Housing Weather rating

    IP66

  • Network Protocol

    IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2 DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
    NFS, SMB/CIFS
    HTTP, HTTPS
    PPPoE
    UPnP, Bonjour, RTSP, RTP, RTCP, SSL

  • Operating Temperature

    -30 - 60 deg. C (-22 - 140 deg. F)

  • Operating Humidity

    Max. 95% non-condensing

  • Certifications

    CE, FCC, UL 60950

  • Power Input

    PoE (802.3af)

  • Power Consumption

    7 Watts max.

  • Optional Power Supply (Sold separately)

    Output: 12 V DC 1 A
    5.5 mm barrel connector
    TRENDnet power adapter, model 12VDC1A, sold separately

  • Management Interface 1

    Multi-language support: English, French, German, Russian and Spanish
    IP address filter
    QoS traffic prioritization
    Time, date and text overlay
    Image settings: brightness, contrast, saturation, sharpness, smart IR, exposure time (1/3 - 1/100,000), video standard, day/night switch, sensitivity, switch time, mirror, D-WDR, white balance, digital noise reduction
    D-WDR enhances video quality in high contrast daytime lighting
    3D Digital Noise Reduction enhances night vision quality

  • Management Interface 2

    Scheduled recording: continuous and motion detection
    Video storage: to computer, NAS, SMB/CIFS share or through software
    Motion detection fields: define custom motion detection areas, motion sensitivity and dynamic motion analysis
    Privacy masks: define custom privacy mask areas
    Tamper detection: email notification if the viewing field darkens suddenly
    Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings

  • Management Interface 3

    Alert messages: storage full, storage error and illegal login
    Snapshot: real time snapshot, motion detection with schedule, video tamper detection with schedule
    Supported dynamic DNS services: Dyn.com and NO-IP.com
    Management Setting: maximum 32 user accounts
    Supports remote management
    Compatibility: Internet Explorer 9.0 or higher, Firefox 13.0 or higher, Safari 4.0 or higher, Chrome 24.0 or higher

  • TRENDnetView Pro Software

    Supports up to 32 TRENDnet cameras
    Multiple language support
    Set recording options (motion detection, schedule, event trigger)
    Search and playback
    Custom viewing modes and options
    Compatibility: Windows 8.1, 8, 7, Vista, XP, Windows Server 2003, 2008

  • TRENDnetVIEW App

    Free iOS and Android app
    View your camera on your mobile device
    Take snapshots
    Zoom

  • Dimensions

    111 x 111 x 82mm (4.37 x 4.37 x 3.22")

  • Weight

    370g / 13.05oz

  • UPC Code

    710931110517

0 Accessories for TRENDnet TV-IP321PI Outdoor HD Dome IR Network Camera, 1.3MP, Up to 82' Night Vision, 1280x960 Resolution at 30 fps, PoE

About TRENDnet TV-IP321PI Outdoor HD Dome IR Network Camera

The TRENDnet TV-IP321PI Outdoor HD Dome IR Network Camera, provides powerful 1.3 megapixel night vision in complete darkness for up to 25 m (82'). This ultra-compact vandal resistant fixed dome camera is outdoor ready with an IP66 weather rated housing. It comes with a free Apple and Android mobile app and complimentary pro-grade software to manage up to 32 TRENDnet cameras.

TRENDnet TV-IP321PI Outdoor HD Dome IR Network Camera Features

  • 1.3 Megapixel HD resolution
  • Compact IP66 weather rated fixed dome housing
  • Night vision up to 25 meters (82')
  • Save installation costs with Power over Ethernet (PoE)
  • Vandal resistant housing
  • Digital Wide Dynamic Range image balancing
  • ONVIF and IPv6 support
  • Manually pan 355deg. and tilt 75deg. to set the camera's final viewing field
  • Impact protection rated: IEC60068-275Eh, 50J; EN50102, exceeding IK10
  • Record 1280 x 960 pixel video at 30 fps in H.264 compression
  • Digital Wide Dynamic Range improves video quality in high contrast lighting environments
  • SMB/CIFS support with notification if storage drive is full
  • Create motion detection windows with separate sensitivity settings and event triggers
  • Define a weekly recording schedule
  • Receive tamper detection video clips via email
  • See live video on a mobile device with free iOS and Android apps
  • Complimentary pro-grade software to manage up to TRENDnet 32 cameras

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 1.3 Megapixel HD resolution
  • Compact IP66 weather rated fixed dome housing
  • Night vision up to 25 meters (82')
  • Vandal resistant housing
  • Digital Wide Dynamic Range image balancing
  • ONVIF and IPv6 support

What's in the box:

  • TRENDnet TV-IP321PI Outdoor HD Dome IR Network Camera
  • CD-ROM (Utility Software & User's Guide)
  • Multi-Language Quick Installation Guide
  • Camera Mounting Hardware
  • TRENDnet 3 Year Limited Warranty
