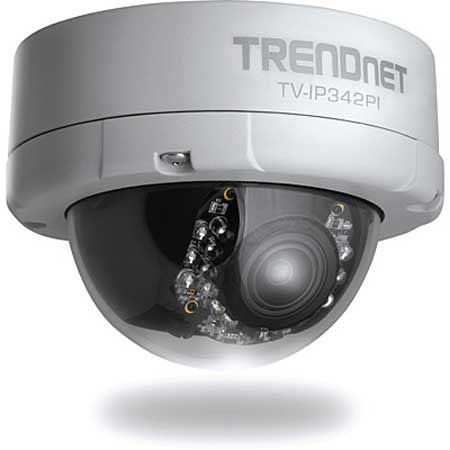

TRENDnet TV-IP342PI Full HD Vari-Focal Day/Night Dome Network Camera, 2MP, IP66 Rating, 3x Optical/4x Digital Zoom, Up to 49' Night Vision, PoE

3 - 9mm at F1.8

70 cm to infinity

Internal manual zoom and focus adjustment

1/3" 2 Megapixel CMOS sensor

Horizontal: 42 - 145 deg.
Vertical: 36 - 127 deg.
Diagonal: 22 - 69 deg.

optical 3x, digital 4x

IR off: 0.1 lux
IR on: 0 lux
15 meter IR illumination distance
IR wavelength: 850mm

H.264: 1920 x 1080 up to 30 fps
MJPEG: 1920 x 1080 up to 30 fps
H.264: 640 x 480 up to 15 fps (3GPP only)

External 3.5 mm microphone jack
External 3.5 mm speaker jack

IEEE 802.1X
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3af

10/100 Mbps PoE port
Micro SD card slot (internal)
IR LEDs
BNC port
3.5 mm microphone jack
3.5 mm speaker jack
GPIO terminal
Power jack (optional)

IP66 rated
Direct cabling through the bottom or side of housing

IPv4, IPv6, UDP, TCP/ IP
DHCP, NTP, DDNS, SMTP, FTP, LLTD
SNMP v1-v3, QoS/DSCP, IEEE 802.1X
Samba, Bonjour
HTTP, HTTPS
PPPoE
UPnP, RTSP, RTP, 3GPP

-20 - 50 deg. C (-4 - 122 deg. F)

Max. 90% non-condensing

CE, FCC

100 - 240 V AC, 50/60 Hz, 1 A

12 V DC, 1 A external power adapter (for non-PoE installations)

6.7 W Max.

Multi-language support: English, French, German, Russian and Spanish
IP address filter
QoS traffic prioritization
Time, date and text overlay
Image settings: brightness, contrast, saturation, sharpness, smart IR, exposure time (1/3 - 1/100,000), video standard, day/night switch, sensitivity, switch time, mirror, D-WDR, white balance, digital noise reduction
D-WDR enhances video quality in high contrast daytime lighting
3D Digital Noise Reduction enhances night vision quality

Scheduled recording: continuous and motion detection
Video storage: to computer, NAS, SMB/CIFS share or through software
Motion detection fields: define custom motion detection areas, motion sensitivity and dynamic motion analysis
Privacy masks: define custom privacy mask areas
Tamper detection: email notification if the viewing field darkens suddenly
Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings

Alert messages: storage full, storage error and illegal login
Snapshot: real time snapshot, motion detection with schedule, video tamper detection with schedule
Supported dynamic DNS services: Dyn.com and NO-IP.com
Management Setting: maximum 32 user accounts
Supports remote management
Compatibility: Internet Explorer 9.0 or higher, Firefox 13.0 or higher, Safari 4.0 or higher, Chrome 24.0 or higher

Supports up to 32 TRENDnet cameras
Multiple language support
Set recording options (motion detection, schedule, event trigger)
Search and playback
Custom viewing modes and options
Compatibility: Windows 8.1, 8, 7, Vista, XP, Windows Server 2003, 2008

Free Apple and Android app
View your camera on your mobile device
Take snapshots
Zoom

137 x 137 x 102mm / 5.39 x 5.39 x 4.01"

962g / 33.93oz

710931110388
