19% Off

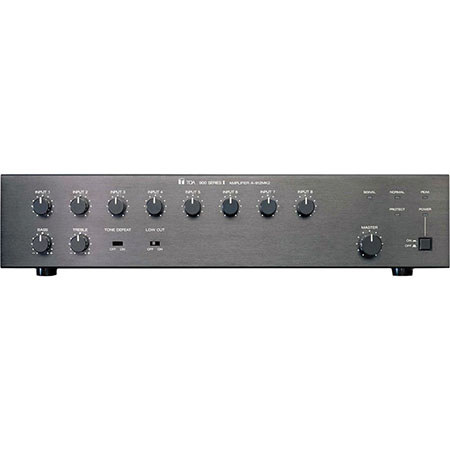

TOA Electronics A-912MK2 120W 8-Channel Modular Mixer/Amplifier, Auxiliary Output, External Mute Terminals, Dual Mute Bus, Direct Low-Impedance Output Mode

SKU: TOA912MK2UL MFR: A912MK2UL
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 120W TOA amplifier with mixer, perfect for clear audio.
  • Get flexible audio control with 8 channels on this mixer amplifier, ideal for live sound setups.
  • Fine-tune your audio using the built-in EQ controls; optimize bass and treble for any venue.
  • Connect various devices easily using multiple input options on this versatile amplifier mixer.
  • Achieve balanced audio with auxiliary output; perfect for connecting to external recording devices.
  • Ensure seamless performance with external mute terminals, great for paging and emergency systems.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?SHARON G : IT purchase reqERIC Z : Fire station PA system and dispatch audio.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics A-912MK2 Specifications

  • Power requirement

    AC main, 120V, 60Hz

  • Power Consumption

    180 W

  • Output Power

    120 W RMS

  • Power Band Width

    (D): 20-20000Hz, 0.5% THD, (T): 50-20000Hz, 0.5% THD

  • Frequency Response

    (D): 20-20000Hz, +/- 1dB
    (T): 20-15000Hz, +/- 1dB
    (T): 20-20000Hz, +1dB, -3dB

  • T.H.D.

    0.02% at 1kHz, rated output

  • Input

    Eight Input port: Each port accept any input modules.
    One bridging input/output

  • Input Sensitivity/ Impedance

    Input port #1 to #8: 100mV / 10kOhm
    Bridging input/output: 100mV / 3.3kOhm

  • Preamp Out / Power Amp In

    1000mV into 600 Ohm / 1000mV, 10kOhm

  • Outputs (T): Transformer (D): Direct

    Main (T): 4 Ohm, 25 and 70 volts, balanced, Main (D): 8 Ohm unbalanced
    Aux: 10 kOhm, 1V

  • Output Regulation (1kHz)

    (D): Less than 0.5dB, no load to full load
    (T): Less than 1.0dB, no load to full load

  • S/N Ratio (Band Pass 20-20000Hz)

    Tone defeat switch on
    Master volume min: 90dB
    Master volume max: 77dB
    Power amplifier only: 105dB

  • Tone Controls

    Bass: +/-10dB at 100Hz, Treble: +/-10dB at 10kHz

  • Controls

    8 Input gain control
    1 master gain control
    1 bass control
    1 treble control
    1 power on/off switch
    1 tone defeat switch
    1 low-cut switch (60Hz, 6 dB/octave)

  • Indicators

    1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED

  • Protection

    Self-protection with AC fuse (inside)

  • Connectors

    Input No.1 to No.8: Card-edge connector bridging, mixer preamp, output, power amp. input, Aux Output: RCA phono jack
    Output: Screw-terminal strip
    Mute, Remote, VR: Screw-terminal strip
    AC Outlet: 3-pin grounding type
    AC power cord/plug: SJT, 3-prong type

  • Temperature range

    -10 deg. C to +60 deg. C (12 deg. F to 140 deg. F)

  • Dimensions (W x H x D)

    16.54 x 3.90 x 14.09" / 42.01 x 9.90 x 35.78cm

  • Weight

    25.13lbs / 11.39kg

  • UPC Code

    192223056862

About TOA Electronics A-912MK2

Just imagine the power and versatility of the TOA Electronics A-912MK2 120W 8-Channel Modular Mixer/Amplifier, a high-quality audio solution that's become an industry standard in installed sound system amplification. This advanced mixer/amplifier is designed for situations where reliability and performance are paramount, making it an ideal choice for paging and music distribution in high-demand environments such as airports, hospitals, and industrial sound systems.

Engineered for superior performance, the A-912MK2 delivers a wide frequency response, minimal noise and distortion, and exceptional output regulation. Its modular design features eight module slots, allowing for easy customization. Choose from over fifty TOA plug-in modules, each offering a variety of features and connector types, to create a configuration that perfectly suits your audio needs.

The A-912MK2 also offers the flexibility of increasing input capacity by connecting a second mixer or mixer/amplifier to the rear-panel Bridge In/Out jack. Its versatile outputs include transformer isolated 25 V, 70 V, and 8 ohm, plus a direct low-impedance mode for non-transformer operation.

For complex paging systems, multiple priorities can be easily configured using optional mute-type modules activated by external switch-closure or mute-send modules. The Pre-Out/Power-In jacks allow for the connection of external signal processing between the mixer and amplifier sections.

Additional features of this durable mixer/amplifier include protection circuitry, an auxiliary output, bass/treble controls, and remote master volume terminals. With the TOA Electronics A-912MK2 120W 8-Channel Modular Mixer/Amplifier, you're investing in a powerful, high-quality audio solution that delivers consistent performance day in and day out.

TOA Electronics A-912MK2 Features

  • High-performance 120W 8-Channel Modular Mixer/Amplifier by TOA Electronics
  • Wide frequency response with minimal noise and distortion for superior audio quality
  • Eight module slots for easy customization with over fifty TOA plug-in modules
  • Versatile outputs including transformer isolated 25 V, 70 V, and 8 ohm, plus a direct low-impedance mode
  • Multiple paging priorities configurable with optional mute-type modules
  • Additional features include protection circuitry, auxiliary output, bass/treble controls, and remote master volume terminals

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Experience powerful sound with this 120W TOA amplifier with mixer, perfect for clear audio.
  • Get flexible audio control with 8 channels on this mixer amplifier, ideal for live sound setups.
  • Fine-tune your audio using the built-in EQ controls; optimize bass and treble for any venue.
  • Connect various devices easily using multiple input options on this versatile amplifier mixer.
  • Achieve balanced audio with auxiliary output; perfect for connecting to external recording devices.
  • Ensure seamless performance with external mute terminals, great for paging and emergency systems.

What's in the box:

  • TOA Electronics A-912MK2 120W 8-Channel Modular Mixer/Amplifier
  • 4x Volume Control Security Knobs
  • TOA Electronics 5 Year Limited Warranty
