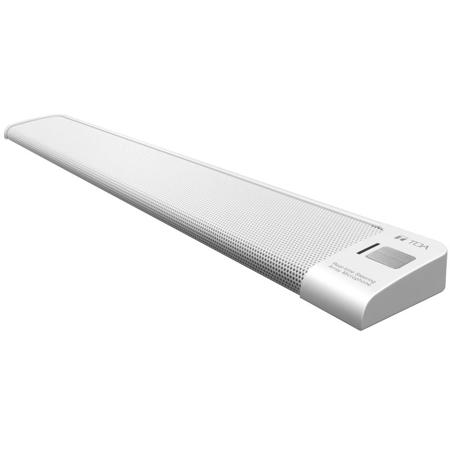

TOA Electronics AM-1 Real Time Steerable Array Microphone System, White
See all TOA Electronics items

TOA Electronics AM-1 Real Time Steerable Array Microphone System, White

SKU: TOAAM1WSET MFR: AM1WSET
Be the first to review this itemAsk a Question
$1,771.13
$1,980.00
Save: $208.87 (11%)
OR
$148/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this steerable array microphone system.
  • Achieve crystal-clear audio with a wide 150-18000Hz frequency response for optimal recording.
  • Customize your audio with adjustable output levels via the included control unit.
  • Ensure seamless connectivity using the dedicated XLR input for professional microphone integration.
  • Benefit from a high S/N ratio, ensuring low noise for pristine audio recordings every time.
  • Easily manage audio settings with intuitive touch sensor mute and LED operation indicators.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TOA Electronics AM-1 Real Time Steerable Array Microphone System, White Specifications

  • Microphone: Power Source

    24V DC/200mA (supplied from Control Unit)

  • Microphone: Maximum Input Sound Level

    100dB SPL (at 20" distance)

  • Microphone: S/N Ratio

    90dB or more (from Control Unit)

  • Microphone: Frequency Response

    150 - 18000Hz

  • Microphone: Directional Angle

    Horizontal: 50 deg. (450- 18000Hz Array mode), 180 deg. (Cardioid mode)
    Vertical: 90 deg.

  • Microphone: Mute Switch

    Touch sensor

  • Microphone: LED Indicator

    Mute (red), In operation (blue)

  • Microphone: Cable

    STP ASE/EBU digital audio cable

  • Microphone: Maximum Cable Length

    230' / 70.10m (From Control Unit)

  • Control Unit: Power Source

    24V DC/400mA, from an optional AD-246 AC adapter

  • Control Unit: S/N Ratio

    90dB over

  • Control Unit: Microphone Input

    Dedicated input for Microphone Unit, XLR-3-31 equivalent

  • Control Unit: Audio Output

    Analog: +4dBu, -10 dBV, -5OdBu (selectable) XLR-3-32
    equivalent Digital: AES/EBU 24bit 1100hms, XLR-3-32 equivalent

  • Control Unit: Control

    Output volume control, Output level adjustment

  • Control Unit: LED Indicator

    Power (blue), Mute (red)

  • Control Unit: Ethernet

    100/10Mbps (Category 5, RJ45 jack), TCP/IP HTTP

  • Dimensions (W x H x D)

    Microphone: 19.0 x 0.8 x 2.6" / 482.60 x 20.32 x 66.04mm
    Control Unit: 4.1 x 1.9 x 8.7" / 104.14 x 48.26 x 220.98mm

  • Weight

    Microphone:2.4lbs / 1.09kg
    Control Unit: 1.3lbs / 0.59kg

About TOA Electronics AM-1 Real Time Steerable Array Microphone System, White

The AM-1 Real-time Steering Array Microphone System is a sophisticated microphone system, capable of detecting a sound source location and steering the microphone's beam angle automatically in real-time to capture the targeted sound more efficiently. In addition, the unique user-friendly app allows the user to monitor the status of the sound source and make changes to its detailed setting parameters by using an iPad.

TOA Electronics AM-1 Real Time Steerable Array Microphone System, White Features

  • The microphone unit is equipped with 8 microphone elements able to achieve the line array effect with a narrow horizontal dispersion angle of 50 degrees
  • The unit is able to detect a sound source location and steer the microphone's beam angle automatically in real-time to focus on the targeted sound source
  • The dedicated user-friendly GUI is available for use with an iPad, which allows monitoring of the sound source tracking status and setting of detail parameters. It is also possible to change the parameter settings via a browser, when using a PC
  • The unit has a simple mute function with a physical mute switch on the microphone unit or through the GUI. The mute switch function of the microphone unit can be disabled through a GUI setting
  • It is equipped with two outputs: adjustable analog audio output level and AES/EBU digital audio output

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this steerable array microphone system.
  • Achieve crystal-clear audio with a wide 150-18000Hz frequency response for optimal recording.
  • Customize your audio with adjustable output levels via the included control unit.
  • Ensure seamless connectivity using the dedicated XLR input for professional microphone integration.
  • Benefit from a high S/N ratio, ensuring low noise for pristine audio recordings every time.
  • Easily manage audio settings with intuitive touch sensor mute and LED operation indicators.

What's in the box:

  • TOA Electronics AM-1MW Microphone Unit
  • AM-1C Control Unit
  • AD-246 Power Supply
  • TOA Electronics 5 Year Limited Warranty
