19% Off

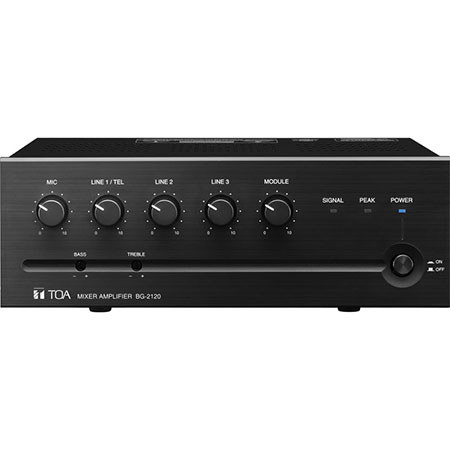

TOA Electronics BG-2120 CU 120W 5 Channel Mixer Amplifier, 50Hz-20kHz Frequency Response, Euroblock Connections, 2 Channel Broadcast Capability, RCA Pin Jacks

SKU: TOBG2120CU MFR: BG2120CU
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this 120W mixer amplifier for crystal-clear audio.
  • Five versatile channels offer flexible input options for mics, instruments, and line-level devices.
  • Easily connect using Euroblock connections for secure and professional audio installations.
  • Perfect for small venues needing reliable power output with a frequency response of 50Hz-20kHz.
  • Enjoy durable performance with TOA's trusted amplifier design, ideal for installed sound systems.
  • Customize your sound with bass and treble controls, optimizing your mixer amplifier's audio.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?EMMA L : replacement

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics BG-2120 CU Specifications

  • Power Source

    120V AC, 60Hz

  • Rated Output

    120W

  • Power Consumption

    265 W (rated output), 120 W (based on cULus standards)

  • Frequency Response

    50Hz-20kHz

  • Total Harmonic Distortion

    0.5% or less, at 1kHz, rated output

  • Input

    Mic: -60dB, 600 Ohm, electronically balanced, removal terminal block
    Line 1: -10dB / TEL: -20dB, Line 1/TEL selectable, 10kOhm, electronically balanced, removal terminal block
    Line 2, 3: -10dB, 10 kOhm, unbalanced, removal terminal block and RCA jacks module

  • Output

    Speaker: 4Ohm, 25V (5.2 Ohm), 70V (42Ohm), balanced, removal terminal block
    MOH: 0dB, 600 Ohm, balanced, removal terminal block
    Line: 0dB, 600 Ohm, unbalanced, removal terminal block

  • Output Regulation

    2dB or less, no load to full load (1kHz)

  • Phantom Power

    On/off switch for mic, +24 V DC

  • S/N Ratio

    Mic: 60dB or more, Line 1/TEL, Line 2, 3, Module: 75dB or more (Band pass: 20Hz-20kHz, Tone controls: centered

  • Muting

    Manual mute / automatic mute

  • Tone control

    Bass: +/-10dB at 100Hz, Treble: +/- 10dB at 10kHz

  • Control

    Mic gain control, Line 1/TEL gain control, Line 2 gain control. Line 3 gain control, Module gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Remote volume control, Mute sense control, Line 1/TEL selector switch, Phantom power switch (Mic), Auto mute switch (Mic, Line 1/TEL, module), Mute receiver switch (Mic, Line 1/TEL, Line 2, 3, module), MOH assign switch (Mic, Line 1/TEL, Line 2, 3, module), Power on/off switch

  • Indicators

    Power LED, Signal Level LED, Peak LED

  • Operating Temperature

    0 deg. C to +40 deg. C (32 deg. F to 104 deg. F)

  • Operating Humidity

    35% to 80% RH (no condensing)

  • Finish

    Panel: ABS resin, Black
    case: Steel plate, black paint

  • Dimensions (W x H x D)

    10.39 x 3.71 x 10.52" / 26.39 x 9.42 x 26.72cm

  • Weight

    13.23 lbs / 6kg

About TOA Electronics BG-2120 CU

Over the years, the TOA Electronics BG-2120 CU 120W 5 Channel Mixer Amplifier has established itself as an essential component in commercial audio systems. This versatile device is expertly designed to seamlessly integrate into any audio setup, whether it's for background music (BGM), foreground music, or paging applications.

The BG-2120 stands out with its five-channel configuration and a robust power rating of 120 watts. This ensures high-quality sound output, making it an ideal choice for businesses, event venues, and other professional settings.

One of the key features of this mixer amplifier is its 2-zone operation. This allows for separate programming in two discrete zones, providing flexibility and control over your audio environment. Whether you're managing different music genres or controlling the volume levels in various areas, this feature ensures your audio needs are met.

The front panel of the BG-2120 is user-friendly, featuring intuitive controls with level dials for each channel. This makes it easy to adjust and fine-tune the sound output to your preference.

On the rear, you'll find removable euroblock connectors and DIP switches. These are designed for easy programming, making the setup process a breeze even for those new to audio equipment.

The BG-2120 CU 120W 5 Channel Mixer Amplifier is housed in a rugged chassis, designed for durability and longevity. It can easily be rack-mounted using the optional MB-1000 rack mount brackets, ensuring a secure and stable setup.

In conclusion, the TOA Electronics BG-2120 CU 120W 5 Channel Mixer Amplifier is a reliable, high-performance device that offers superior sound control. Its user-friendly design and advanced features make it a valuable addition to any commercial audio system.

TOA Electronics BG-2120 CU Features

  • Compact five channel Mixer-Amplifier for paging, background/foreground music distribution and music/messaging-on-hold
  • All inputs/outputs with removable terminal blocks allow quick and easy installation
  • Any of five inputs assignable to MOH/ZONE 2 output
  • RCA pin jacks for LINES 2 & 3
  • Phantom Power (+ 24V DC) incorporated for MIC input
  • Module slot accepts optional 900 Series plug-in modules for custom system configurations
  • Rear panel-mounted DIP switches allow easy configuring of settings
  • Provides auto/manual mute function with adjustable muting sensitivity
  • Incorporates Remote volume control connection
  • 2-channel broadcast capability together with zone 2 expansion capability in conjunction with BA-200 Series
  • Tamper-proof, front-panel bass and treble controls are recessed to protect their settings
  • Thermal protection circuitry prevents potential damage from excessive heat build-up
  • AC Mains Circuit Breaker
  • Supplied accessory security knobs for volume controls prevent unauthorized volume setting changes
  • UL/cUL Listed

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this 120W mixer amplifier for crystal-clear audio.
  • Five versatile channels offer flexible input options for mics, instruments, and line-level devices.
  • Easily connect using Euroblock connections for secure and professional audio installations.
  • Perfect for small venues needing reliable power output with a frequency response of 50Hz-20kHz.
  • Enjoy durable performance with TOA's trusted amplifier design, ideal for installed sound systems.
  • Customize your sound with bass and treble controls, optimizing your mixer amplifier's audio.

What's in the box:

  • TOA Electronics BG-2120 CU 120W 5 Channel Mixer Amplifier
  • Accessory Security Knobs
  • TOA Electronics 5 Year Limited Warranty
