19% Off

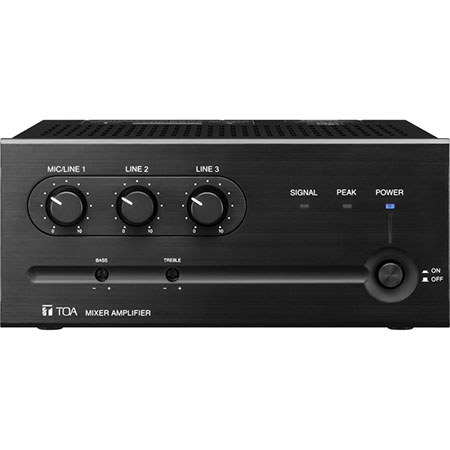

TOA Electronics BG-235 35W 3 Channel Amplifier & Mixer, 50Hz-20kHz Frequency Response, 2x Line Inputs with RCA Inputs, Recessed Bass & Treble Control

SKU: TOBG235CU MFR: BG235CU
Earn VIP Reward Points

Key Features

  • Experience versatile sound with this 35W TOA amplifier & mixer, perfect for small venues.
  • Enjoy clear audio with a wide 50Hz-20kHz frequency response, ideal for music & speech.
  • Easily connect mics & line-level devices using multiple input channels on this mixer amplifier.
  • Shape your sound with recessed bass and treble controls for optimal audio quality.
  • Rely on the durable TOA amplifier, featuring a robust design for consistent performance.
  • Simplify setup with removable terminal blocks, ensuring secure & reliable connectivity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Al J : need for my storeAMANDA E : Same as the one we currently have and burned out.,DEBBIE W : I wasn't able to get this item from my normal vendors for 30 days

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics BG-235 Specifications

  • Power Source

    120 V AC, 60 Hz

  • Rated Output

    35W

  • Power Consumption

    90 W (rated output), 55 W (based on cULus standards)

  • Frequency Response

    50 Hz - 20kHz

  • Total Harmonic Distortion

    0.5% or less, at 1 kHz, rated output

  • Input

    Mic.: -60 dB*/Line 1: -10 dB, Mic/Line 1 selectable, 600 Ohm, electronically balanced, removable terminal block
    Line 2, 3: -10 dB, 10 kOhm, unbalanced, removable terminal block or RCA jack

  • Output

    Speaker: 4 Ohm, 25 V (18 Ohm) and 70 V (140 Ohm) balanced, removable terminal block
    MOH: 0 dB, 600 Ohm, balanced, removable terminal block
    Line: 0 dB, 600 Ohm, unbalanced, removable terminal block

  • Output Regulation

    2 dB or less, no load to full load (1k Hz)

  • S/N Ratio

    Mic/Line 1: 60 dB or more/Line 2, 3: 80 dB or more
    (Band Pass: 20 Hz - 20k Hz, Tone Controls: Centered)

  • Tone Control

    Bass: +/-10 dB at 100 Hz, Treble: +/- 10 dB at 10k Hz

  • Control

    Mic/Line 1 gain control, Line 2 gain control, Line 3 gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Mute sense control, Auto mute switch (Mic/Line 1), Mic /Line 1 selector switch, Mute receive switch (Line 2, 3), MOH assign switch (Mic/Line 1, Line 2, 3), Power ON/OFF switch

  • Indicator

    Power LED, Signal level LED, Peak LED

  • Other Feature

    Automatic electronic drive limiter

  • Operating Temperature

    0 deg. C to 40 deg. C (32 deg. F to 104 deg. F)

  • Operating Humidity

    35 % to 80 % RH (no condensation)

  • Finish

    Panel: ABS resin, black/Case: Steel plate, black, paint

  • Dimensions (W x H x D)

    8.27 x 3.71 x 10.43" / 21 x 9.42 x 26.49cm

  • Weight

    4 kg (8.82 lbs)

About TOA Electronics BG-235

Enhance your audio setup with the TOA Electronics BG-235, a powerful 35W 3 Channel Amplifier & Mixer designed to deliver high-quality sound across a variety of settings, including banquet halls, bars, and retail spaces. This advanced audio solution boasts a broad frequency response range of 50Hz-20kHz, ensuring that it can reproduce a wide spectrum of audio frequencies with crystal-clear clarity.

Crafted for durability and versatility, the BG-235 is equipped with one microphone/line input and two additional line inputs, each featuring RCA connectors for seamless integration with your existing audio equipment. Whether you're connecting a CD player, turntable, or microphone, this amplifier and mixer is capable of handling multiple audio sources with ease.

Users will appreciate the recessed bass and treble controls that allow for precise sound adjustments, creating a balanced and tailored audio experience. The inclusion of an MOH (Music On Hold) Out feature adds further functionality, perfect for businesses that require music or messaging for callers on hold.

Installation is simplified thanks to the removable rear-mounted terminal blocks, while DIP switches offer quick and easy settings adjustments. Additionally, the ZONE 2 OUT feature provides the option for system expansion, making the BG-235 a scalable choice for growing audio needs.

With its robust construction and user-friendly design, the TOA Electronics BG-235 stands out as a versatile and reliable choice for professionals seeking to enhance their audio systems with a mixer and amplifier that promises consistent performance and advanced control over their sound environment.

TOA Electronics BG-235 Features

  • Massive Power supply for high-quality, reliable sound
  • All inputs and outputs on removable Euro-block connections for easier installation
  • 3x Inputs: Mic/Line 1 w/ Balanced phoenix input and Manual Mute Trigger; Line 2 w/ phoenix & RCA summing connector; Line 3 w/ phoenix & RCA summing connector
  • Input 1 selectable between Mic/Line input level
  • MOH/Zone2 balanced line output assignable via rear-panel dip switches. Selects any or all three input channels-no muting. Can be used for Music on Hold or 2nd Zone
  • Mute receive assignable for channels 2 & 3 on rear-panel dip switches. Mute can be activated via "VOX" or "Contact In" signal
  • Mute Sensitivity and MOH/Zone 2 are both level adjustable
  • Power outputs available at 4 Ohm, 25V & 70V for more system flexibility
  • Unbalanced Line Output can be used for an extra zone or for recording
  • Dedicated Bass & Treble controls (recessed on front panel) allow independent adjustment for main or remote zones
  • Input Signal present, Peak & Power On indicators on front panel
  • Supplied security cap (YA-920 x1) for volume knob to prevent unauthorized adjustment
  • Thermal Overload Protection circuit with rear panel reset breaker
  • UL/cUL Listed

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Experience versatile sound with this 35W TOA amplifier & mixer, perfect for small venues.
  • Enjoy clear audio with a wide 50Hz-20kHz frequency response, ideal for music & speech.
  • Easily connect mics & line-level devices using multiple input channels on this mixer amplifier.
  • Shape your sound with recessed bass and treble controls for optimal audio quality.
  • Rely on the durable TOA amplifier, featuring a robust design for consistent performance.
  • Simplify setup with removable terminal blocks, ensuring secure & reliable connectivity.

What's in the box:

  • TOA Electronics BG-235 35W 3 Channel Amplifier & Mixer
  • 3x YA-920 Security Caps
  • TOA Electronics 5 Year Limited Warranty
