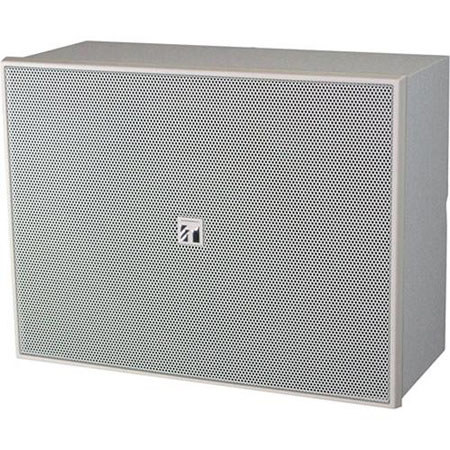

TOA Electronics BS-678 Wall Mount 6" Woodbox Speaker, 150-20000Hz Frequency Response, 1.7kOhms 100V Line Impedance, 94dB at 1W Sensitivity, Single

SKU: TOBS678 MFR: BS678
$47.00
$57.00
Save: $10 (18%)
Earn VIP Reward Points

Key Features

  • Experience superior audio with this TOA Electronics 6" commercial speaker.
  • Enjoy wide frequency response (150-20000 Hz) for crystal-clear sound quality.
  • Ideal for background music or paging in offices, restaurants, and retail.
  • This durable woodbox speaker offers excellent sound dispersion at 94dB.
  • Easy to install with included wall-mount screws, saving you valuable time.
  • Optimize your sound system with selectable 70V/100V line impedance settings.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$4.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics BS-678 Specifications

  • Rated Input

    6W (100V LINE), 3W (70V LINE)

  • Rated Impedance

    100 V line: 1.7kOhms (6W), 3.3kOhms (3W), 6.7kOhms (1.5W), 13kOhms (0.8W)
    70 V line: 1.7kOhms (3W), 3.3kOhms (1.5W), 6.7kOhms (0.8W), 13kOhms (0.4 W)

  • Sensitivity

    94dB at 1W, 1 m (500 - 5,000 Hz, pink noise)

  • Frequency Response

    150 - 20,000 Hz (at 20 dB below peak)

  • Speaker Component

    16cm / 6.29" double cone type

  • Application Cable

    600 V vinyl-insulated cable (IV wire or HIV wire)
    Solid wire: ½0.8 -½1.6 mm (equivalent to AWG 20 - 14)
    7-core twisted wire: 0.75 - 1.25 m (equivalent to AWG 18 - 16)

  • Connection

    Push-in connector (bridging terminal)

  • Finish

    Baffle: HIPS, off white (RAL 9010 or equivalent color)
    Cabinet: Particle Board with pvc sheet, off white (RAL 9010 or equivalent color)
    Grille: Surface-treated steel plate net, off white (RAL 9010 or equivalent color)

  • Dimensions (W x H x D)

    250 x 190 x 110mm / 9.84 x 7.48 x 4.33"

  • Weight

    1.5kg / 3.30lbs

About TOA Electronics BS-678

If you're seeking a blend of aesthetic appeal and acoustic performance, the TOA Electronics BS-678 Wall Mount 6" Woodbox Speaker stands out as a prime choice. This durable and high-quality speaker boasts a double-cone design nestled within a wooden cabinet, offering a stylish yet unobtrusive addition to any space. Its compact form factor is engineered for efficient sound delivery, making it a reliable option for both BGM (background music) and public announcement needs.

The BS-678 features a high sensitivity of 94dB at 1W, ensuring that it can produce a robust sound output even at lower volume levels, which is ideal for creating an immersive audio experience without overwhelming your environment. With a broad frequency response range of 150-20000Hz, this speaker is capable of delivering clear and well-balanced audio across a diverse spectrum of tones, from the deep resonance of bass to the crisp clarity of high notes.

Installation is streamlined thanks to the push-in type input connector, which simplifies cable connections and supports bridge wiring for versatile setup options. Additionally, the input impedance is effortlessly customizable, allowing you to fine-tune your audio experience by adjusting the tap position on the unit's transformer to suit your specific requirements.

Whether mounted horizontally or vertically, the BS-678 adapts to your spatial constraints while maintaining its acoustic integrity. The design includes provisions for direct wall stud installation using the provided tapping screws, ensuring a secure and straightforward mounting process.

Crafted for those who value both form and function, the TOA Electronics BS-678 Wall Mount 6" Woodbox Speaker is an efficient and stylish solution for anyone looking to enhance their audio environment with a speaker that promises consistent and high-quality sound performance.

TOA Electronics BS-678 Features

  • Stylish 6" double-cone woodbox speaker for clear, balanced sound
  • High sensitivity 94dB at 1W for powerful audio with low power input
  • Wide frequency response of 150-20000Hz for high-quality sound reproduction
  • Easy installation with push-in connector and bridge wiring capability
  • Adjustable input impedance with selectable transformer tap positions
  • Versatile mounting options, suitable for horizontal or vertical orientation

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior audio with this TOA Electronics 6" commercial speaker.
  • Enjoy wide frequency response (150-20000 Hz) for crystal-clear sound quality.
  • Ideal for background music or paging in offices, restaurants, and retail.
  • This durable woodbox speaker offers excellent sound dispersion at 94dB.
  • Easy to install with included wall-mount screws, saving you valuable time.
  • Optimize your sound system with selectable 70V/100V line impedance settings.

What's in the box:

  • TOA Electronics BS-678 Wall Mount 6 " Woodbox Speaker
  • Wall Mounting Screws
  • TOA Electronics 5 Year Limited Warranty
