19% Off

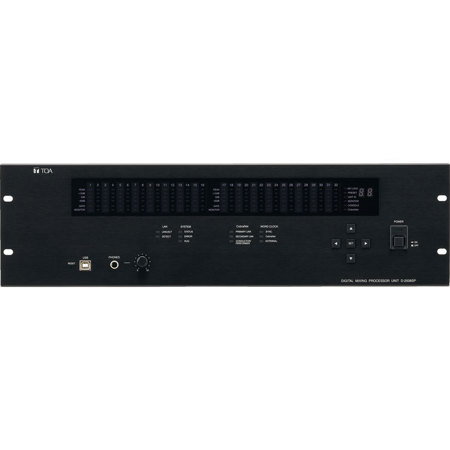

TOA Electronics D-2008SP 32-Channel Digital Mixing Processor Unit

SKU: TOD2008SPCU MFR: D2008SPCU
Earn VIP Reward Points

Key Features

  • Achieve pristine audio clarity with this 32-channel digital mixing processor.
  • Customize your sound with parametric EQ, filters, & dynamic compression tools.
  • Enjoy versatile signal processing with auto-mixing and feedback suppression.
  • Integrate seamlessly using LAN connectivity & remote control module options.
  • Create unique soundscapes with extensive matrix routing and delay capabilities.
  • Optimize live performances and studio recordings with exceptional sound quality.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics D-2008SP Specifications

  • Power Source

    120V AC, 50/60Hz

  • Power Consumption

    78W

  • Frequency Response

    20Hz - 20kHz, +/-1dB (+4dB Input)

  • Sampling Frequency

    48kHz

  • Input and Output

    Max. 32 channels, modular construction (modules optional)
    Max. 32 channels, modular construction (modules optional)
    Headphone: 1 Stereo

  • Feedback Suppression Function

    12 filters (auto + dynamic), maximum 4 bus channels

  • Auto-Mixing Function

    Ducker (automatic muting), NOM attenuation

  • Auto-Mixing Group

    4 groups

  • Equalizer / Filter

    Parametric equalizer: 20Hz - 20kHz, +/-15dB, Q: 0.267 - 69.249

    Filtering: High-pass filter 20Hz - 20kHz, 6dB/oct, 12dB/oct
    Low-pass filter 20Hz - 20kHz, 6dB/oct, 12dB/oct
    Notch filter 20Hz - 20kHz, Q: 8.651 - 69.249
    All-pass filter 20Hz - 20kHz, Q: 0.267 - 69.249
    High shelving filter 6 - 20kHz, +/-15dB
    Low shelving filter 20 - 500Hz, +/-15dB
    Horn equalizer 20kHz, 0 to +18dB (0.5dB steps)

    Crossover filter: 20Hz - 20kHz, 6dB/oct, 12dB/oct, 18dB/oct, 24dB/oct

  • Compressor/Auto-Leveler

    (Compressor Mode)
    Threshold: -20 to +20dB (1dB steps)
    Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 5:1, 7:1, 8:1, 10:1, 12:1, 20:1, Infinity:1
    Attack time: 0.2 ms - 5 s
    Release time: 10 ms - 5 s
    Gain: -Infinity to +10dB
    Knee type: Hard knee, soft knee 1, soft knee 2
    (Auto-leveler mode)
    Target level: -20 to +10dB (1dB steps)
    Maximum gain: Infinity to +20dB (1dB steps)
    Attack time: 10 ms - 10 s
    Release time: 100 ms - 10 s

  • Output Delay

    Delay time: 0 - 1360 ms (0.021 ms steps)

  • BUS Delay

    Delay time: 0 - 677 ms (0.021 ms steps)

  • Matrix

    Input: Max. 32 channels x 24 buses
    Output: Max. 44 (24 + 4 + 16) buses x 32 channels

  • CobraNet Matrix

    Input: Max. 16 channels x 24 buses
    Output: Max. 28 (24 + 4) buses x 16 channels

  • Crosspoint Gain

    -Infinity to 0dB (1dB steps)

  • Preset Memory

    32

  • Auxiliary Function

    Key lock function

  • LAN

    Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) Connected via a switching hub
    Network protocol: TCP/IP
    Connection cable: Shielded Category 5 or higher twisted pair LAN cable (CAT5-STP)
    Maximum cable distance: 100m (between D-2008SP and switching hub)

  • Control

    RS-232C: D-sub connector (9 pins) Used for external control Module: Remote control module slot: 2

  • CPU

    Intel Pentium 2GHz or higher

  • Memory

    1.5GB or more (2GB or more recommended)

  • Display

    1024x768 resolution or higher

  • Free Hard Disk Space

    16MB or more (for D-2000 Setting Software installation)
    500MB or more (when ".NET Framework" needs to be installed)

  • LAN Card

    Compatible to 10BASE-T or faster connection

  • OS

    Windows XP SP2 or later, Windows Vista (32/64-bit edition), Windows 7 (32/64-bit edition)

  • Required Component

    .NET Frarnework3.5SP1

  • Operating Temperature

    5 to 40 deg. C (41 to 104 deg. F)

  • Finish

    Panel: Aluminum, hair-line finish, black
    Case: Surface-treated steel plate

  • Dimensions (WxHxD)

    482 x 132.6 x 343.4mm (18.98 x 5.22 x 13.52")

  • Weight

    6.3kg (13.89 lbs)

About TOA Electronics D-2008SP

Over the years, the D-2008SP 32-Channel Digital Mixing Processor Unit has become a staple in the audio industry, known for its versatility and high-quality performance. This unit is expertly designed to accommodate up to 32 audio inputs and outputs, making it an ideal choice for complex audio setups. It is engineered to fit seamlessly into an EIA standard equipment rack, taking up a minimal space of just 3U size.

One of the standout features of the D-2008SP Digital Mixing Processor Unit is its powerful built-in signal processing function. This allows the unit to double as both a mixer and a signal processor, providing you with the flexibility to manage your audio needs efficiently.

The D-2008SP is also designed with audio input/output and control ports that can accept optional plug-in modules. This feature enhances the unit's capacity, allowing it to support a maximum of 32 inputs or 32 outputs and up to 2 control modules.

The unit's functionality can be further expanded with the use of optional modules. These include two D-983s for providing a maximum of 48 contact inputs and 32 contact outputs, the D-984VC for VCA control, and the D-2000CB for audio data transfer between multiple D-2008SP units.

Each function of the D-2008SP 32-Channel Digital Mixing Processor Unit can be easily set using the dedicated setting software on a PC. The settings can be stored in the unit's internal memory as preset memory, which can be recalled by the D-2008SP without the need for a PC. This feature ensures that your preferred settings are always at your fingertips, providing a seamless audio experience.

In conclusion, the D-2008SP 32-Channel Digital Mixing Processor Unit is a robust and versatile piece of equipment that is designed to meet all your audio processing needs.

TOA Electronics D-2008SP Features

  • 19" rack-mountable digital mixing processor unit
  • Up to 128 input/outputs
  • Features essential sound system signal processing functions including feedback suppression and auto-mixing

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Achieve pristine audio clarity with this 32-channel digital mixing processor.
  • Customize your sound with parametric EQ, filters, & dynamic compression tools.
  • Enjoy versatile signal processing with auto-mixing and feedback suppression.
  • Integrate seamlessly using LAN connectivity & remote control module options.
  • Create unique soundscapes with extensive matrix routing and delay capabilities.
  • Optimize live performances and studio recordings with exceptional sound quality.

What's in the box:

  • TOA Electronics D-2008SP 32-Channel Digital Mixing Processor Unit
  • 2m Power Cord
  • 4x Module Mounting Screw (Spare)
  • 8x Blank Panel (Preinstalled on the Module Slot)
  • CD (Set-Up Software)
  • TOA Electronics 5 Year Limited Warranty
