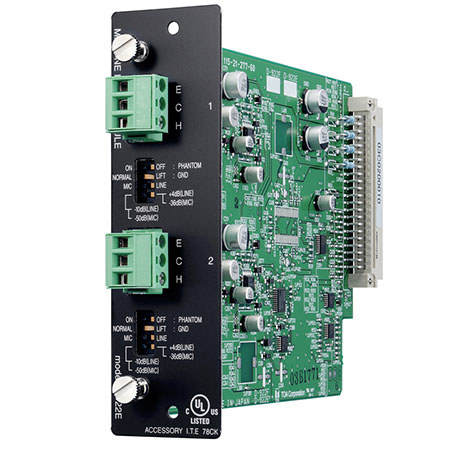

TOA Electronics D922E 2x Mic/Line 20-Bit Input Module for D-901 and DP-K1 Digital Mixers, 20 - 20,000 Hz Frequency Response

SKU: TOD922E MFR: D922E
$187.00
$232.00
Save: $45 (19%)
Earn VIP Reward Points

Key Features

  • Enhance your mixer's capabilities with this 2-channel mic/line input module.
  • Achieve pristine sound quality with the 20-bit A/D converter for clear audio.
  • Wide 20-20,000 Hz frequency response ensures accurate audio reproduction.
  • Compatible with TOA D-901 & DP-K1 mixers, expanding your system's inputs.
  • Selectable phantom power and ground lift provide versatile audio control options.
  • Compact design integrates easily, perfect for expanding your digital mixer setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics D922E Specifications

  • Compatibility

    D-901 and DP-K1 Digital Mixers

  • Input

    2 channels, -50/-36/-10/+4 dB (Selectable with the DIP switch), 4.7Ohms, electronically-balanced, equivalent to XLR-3-31 type
    Phantom power supply (+15 V, can be set with the DIP switch)
    Ground lift switch (can be set with the DIP switch)

  • A/D Converter

    20 bits

  • Sampling Frequency

    48kHz

  • Frequency Response

    20 - 20,000 Hz, +/-1 dB (+4 dB input)

  • Dynamic Range

    Over 85 dB (IHF-A weighted) (+4 dB input)

  • Connectors

    2x 3-Pin Phoenix-Type Inputs

  • Total Harmonic Distortion

    Under 0.2% (+4 dB input)

  • Finish

    Panel: Pre-coated steel plate, black (30% glossy)

  • Dimensions (W x H X D)

    35 x 119.5 x 178.4mm / 1.37 x 4.70 x 7.02"

  • Weight

    135g / 4.76oz

Models
TOA Electronics D922E 2x Mic/Line 20-Bit Input Module for D-901 & DP-K1
$187.00

$232.00

Save:$45.00 (19%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

TOA Electronics D921F 2x Mic/Line 20-Bit Input Module for D-901 & DP-K1
$187.00

$232.00

Save:$45.00 (19%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

TOA Electronics Dual Line Input Module with DSP and Stereo Summing RCA Jacks
$191.00

$237.00

Save:$46.00 (19%)

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Accessory TypeI/O ExpansionI/O ExpansionI/O Expansion

About TOA Electronics D922E

Just when you thought your audio mixing couldn't get any better, the TOA Electronics D922E 2x Mic/Line 20-Bit Input Module steps in to elevate your sound quality. Specifically designed for seamless integration with the D-901 and DP-K1 digital mixers, this module is a must-have for any serious audio enthusiast or professional.

This high-performance module boasts two 3-pin XLR female connectors, each capable of accepting a balanced mic or line level signal. This flexibility allows you to connect a variety of audio sources, ensuring your sound is always at its best.

But the D922E doesn't stop there. It's equipped with 20-bit A/D converters that deliver superior sound quality, capturing every nuance of your audio with precision. This means your recordings will sound as crisp and clear as they were intended to be, regardless of the source.

For those using condenser microphones, the D922E has you covered. It provides phantom power, ensuring your microphones always have the energy they need to deliver top-notch sound.

Additionally, the D922E features adjustable input gain, allowing you to fine-tune your audio input levels for optimal sound. And with ground-lift switches for each input, you can eliminate unwanted noise and interference, ensuring your audio is always clean and clear.

In summary, the TOA Electronics D922E 2x Mic/Line 20-Bit Input Module is more than just an accessory for your D-901 and DP-K1 digital mixers. It's a powerful tool that enhances your audio quality, offering flexibility, precision, and control. Whether you're a professional sound engineer or an audio enthusiast, the D922E is designed to meet your high standards.

TOA Electronics D922E Features

  • High-performance 2x Mic/Line 20-Bit Input Module for D-901 and DP-K1 digital mixers
  • Equipped with two 3-pin XLR female connectors for balanced mic or line level signals
  • Features 20-bit A/D converters for superior sound quality and precision
  • Provides phantom power for condenser microphones, ensuring optimal sound delivery
  • Adjustable input gain for precise control over audio input levels
  • Ground-lift switches for each input to eliminate unwanted noise and interference

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Enhance your mixer's capabilities with this 2-channel mic/line input module.
  • Achieve pristine sound quality with the 20-bit A/D converter for clear audio.
  • Wide 20-20,000 Hz frequency response ensures accurate audio reproduction.
  • Compatible with TOA D-901 & DP-K1 mixers, expanding your system's inputs.
  • Selectable phantom power and ground lift provide versatile audio control options.
  • Compact design integrates easily, perfect for expanding your digital mixer setup.

What's in the box:

  • TOA Electronics D922E 2x Mic/Line 20-Bit Input Module for D-901 & DP-K1 Digital Mixers
  • TOA Electronics 5 Year Limited Warranty
