TOA Electronics 5" 30W Ceiling Speaker and Tile Bridge, Pair
See all TOA Electronics items

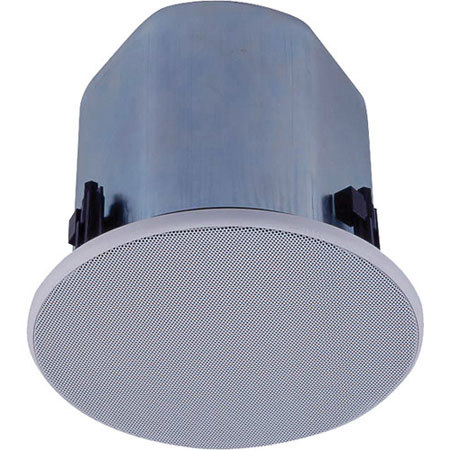

TOA Electronics 5" 30W Ceiling Speaker and Tile Bridge, Pair

SKU: TOF2322CU2
Be the first to review this item

This item is no longer available.

Recommended Alternatives

TOA Electronics Ceiling Speaker: Picture 1 regular
TOA Electronics 30W 5 Full-Range Ceiling Speaker with Tile Bridge, Single
$117.20$79.95
TOA Electronics 5 Co-axial Speaker: Picture 1 regular
TOA Electronics 5 Co-axial 30W Ceiling Speaker with Tile Bridge, Single
$135.45$93.50
TOA Electronics : Picture 1 regular
TOA Electronics 6W Co-axial Ceiling Speaker, Single, Black
$125.00$102.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TOA Electronics 5" 30W Ceiling Speaker and Tile Bridge, Pair Specifications

  • Enclosure

    Bass reflex type

  • Rated Input

    30 W (High Impedance)

  • Power Handling Capacity

    Continuous pink noise: 60 W (8Ohms), 30 W (16Ohms)

  • Impedance

    70 V line: 170Ohms (30 W), 330Ohms (15 W), 1kOhms (5 W), 3.3kOhms (1.5 W), 10kOhms (0.5 W)
    25 V line: 170Ohms (3.7 W), 330Ohms (1.9 W), 1kOhms (0.6 W), 3.3kOhms (0.2 W),10kOhms (0.06 W)
    16Ohms, 8Ohms

  • Sound Pressure Level

    90 dB (1 W, 1 m)

  • Frequency Response

    70 - 20,000 Hz

  • Speaker Component

    12cm / 4.72" cone-type High frequency: Balanced dome-type

  • UL Code

    UL1480 (UEAY), UL2043, CAN/CSA C22.2 No.205 (UEAY7)

  • Mounting Hole

    Dia. 200 mm (7 7/8")
    Maximum ceiling thickness: 37 mm (1 29/64")

  • Input Terminal

    Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)

  • Usable Cable

    Solid copper wire: Dia. 1.0 - Dia. 1.6mm / Dia. 0.03 - Dia. 0.06" (equivalent to AWG 18 - 14)
    Stranded copper wire: 0.75 - 2.5 mm2 / 0.02 - 0.09" (equivalent to AWG 18 - 14)

  • Finish

    Enclosure: Steel plate, plating
    Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0 or its equivalent), black
    Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0 or its equivalent), white, paint
    Punched net: Steel plate, white, paint

  • Dimensions (Dia. x D)

    230 x 209mm / 9.05 x 8.22"

  • Weight

    4.3kg / 9.47lbs (including mounting accessories)

About TOA Electronics 5" 30W Ceiling Speaker and Tile Bridge, Pair

The TOA Electronics Pair of 5" 30W Ceiling Speaker and Tile Bridge are flush-mounted Ceiling Speaker Systems that offer wide frequency range of high-quality sound output. This speaker employs a full-range speaker element configuration. This speaker system is designed to be mounted to a drop ceiling with use of the supplied tile bridge.

TOA Electronics 5" 30W Ceiling Speaker and Tile Bridge, Pair Features

  • Bass-reflex speaker system designed to provide a wide frequency range and high power handling capability
  • Wide-dispersion flush-mount ceiling speaker design employs unique acoustic construction to realize a wide area of coverage
  • Uniform sound output levels are achievable not only directly under the speaker, but also over a wide radius
  • Because the speaker is provided with both low- and high-impedance operating capability, it can be used in many different applications
  • Front panel-mounted input selector switch permits easy verification and change of current impedance settings
  • Easy installation
  • Rotating front grille can be installed quickly and conveniently
  • Attractive exterior design specially created by an interior designer blends naturally with any architectural space, enhancing the immediate area's sense of harmony

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Provides a wide frequency range and high power handling capability
  • Wide-dispersion flush-mount ceiling speaker design
  • Uniform sound output levels over a wide radius
  • Permits easy verification & change of current impedance settings
  • Easy installation
  • Rotating front grille can be installed quickly and conveniently

What's in the box:

  • TOA Electronics 5 " 30W Ceiling Speaker
  • Front Grille
  • Tile Bridge
  • Safety Wire (approx. 60 cm or 23 5/8 ")
  • Paper Pattern
  • TOA Electronics 5 Year Limited Warranty
