New Arrival

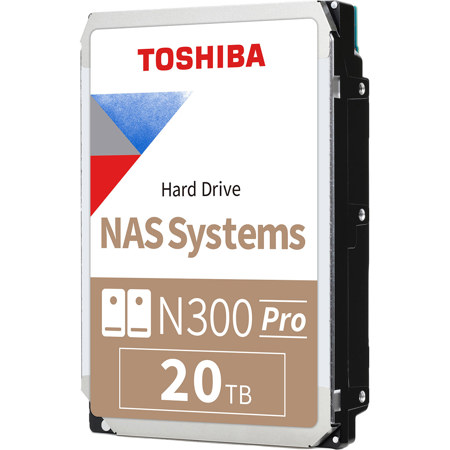

Toshiba N300 Pro 20TB SATA III 3.5" Internal NAS Hard Drive

SKU: TOHD82AXZSTB MFR: HDWG82AXZSTB
Earn VIP Reward Points

Key Features

  • Store vast amounts of data with 20TB capacity, perfect for extensive media libraries and critical backups.
  • Experience smooth, responsive performance thanks to a rapid 7,200 RPM rotational speed for quick access.
  • Benefit from the generous 1024MB cache size, ensuring faster data transfers and improved system efficiency.
  • Effortlessly integrate this drive into your setup using the high-speed SATA III interface for reliable connectivity.
  • Rely on robust 24x7 operation, designed for continuous use in demanding network attached storage (NAS) environments.
  • Protect your valuable data with advanced shock sensors and vibration compensation, enhancing long-term reliability.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2024-12-18T11:56:44

Rated 5 out of 5

Amazing packaging for a new drive!

Received this drive well packaged from manufacturer with a manufacturing date of almost 4 months before the purchase date, so pretty new. The packaging was amazing, drive box inside another box, with air padding surrounding the drive itself, pretty good. Put this drive in a Synology DS1522+ and was recognized immediately, ran S.M.A.R.T. tests and all was successful, drive has 512MB of cache, its pretty quiet compared to IronWolfs, they are more expensive but the quality really shows, from packaging to usage.

RAUL L.

Toshiba N300 Pro Specifications

General

General

Jump to...
  • Capacity

    20TB

  • Interface

    SATA 6.0 Gbit/s

  • Form Factor

    3.5" (8.89cm)

  • Advanced Format (AF)

    Yes

  • RoHS Compatible

    Yes

  • Sector Size

    512e

Features

Jump to...
  • Drive Bays Supported

    Up to 24

  • Rotational Vibration (RV) Sensors

    Yes

  • Native Command Queuing (NCQ)

    Yes

  • Shock Sensors

    Yes

  • Toshiba Cache Technology

    Yes

  • Ramp Loading Technology

    Yes

  • Recording Technology

    CMR

Performance

Jump to...
  • Rotation Speed

    7,200 RPM

  • Max Data Transfer Speed

    294 (MB/s Typ.) (Sustained)

  • Cache Size

    1024MB

Reliability

Jump to...
  • 24x7 Operation

    Yes

  • Maximum Workload Rate

    550TB/Year

  • MTTF

    2,500,000 Hours

  • Unrecoverable Error Rate

    1 per 1015

  • Load/Unload Cycles

    600000

Power Management

Jump to...
  • Supply Voltage

    5 VDC +10%/-7%
    12 VDC +/-10%

  • Operating Power Consumption

    7.62W

  • Active Idle Power Consumption

    4.35W

Environmental

Jump to...
  • Operating Temperature

    41 to 140 Degree F (5 to 60 Degree C) (surface)

  • Non-Operating Temperature

    -40 to 158 Degree F (-40 to 70 Degree C)

  • Operating Vibration

    7.35 m/sq. s (0.75 G) (5 to 300 Hz)
    2.45 m/sq. s (0.25 G (300 to 500 Hz)

  • Non-Operating Vibration

    29.4 m/sq. s (3.0G) (5 to 500 Hz)

  • Operating Shock

    490 m/sq. s (50 G) (2 ms duration)

  • Non-Operating Shock

    1960 m/sq. s (200 G) (2 ms duration)

  • Acoustics Idle Mode

    20 dB

  • Country of Origin

    Philippines

Physical

Jump to...
  • Bottom Holes Type

    Type 1

  • Dimensions (L x W x H)

    5.78 x 4 x 1.02" (147 x 101.85 x 26.1mm)

  • Weight

    25.75 oz (730g)

  • UPC Code

    723844003104

About Toshiba N300 Pro

FEATURED REVIEWS

Amazing packaging for a new drive!

By RAUL L.

Received this drive well packaged from manufacturer with a manufacturing date of almost 4 months before the purchase date, so pretty new. The packaging was amazing, drive box inside another box, with air padding surrounding the drive itself, pretty good. Put this drive in a Synology DS1522+ and was recognized immediately, ran S.M.A.R.T. tests and all was successful, drive has 512MB of cache, its pretty quiet compared to IronWolfs, they are more expensive but the quality really shows, from pac...

View full Review

Trusted Reliability. Built for Business NAS
The Toshiba N300 Pro NAS Internal Hard Drive is designed to provide medium to large businesses a reliable, scalable, and centralized data storage and sharing in a 24/7 multi-user NAS environment. The N300 Pro helps streamline workflows across the business, making it easier for your teams to collaborate.

Offering a higher workload of up to 550 TB/yr and an expanded capacity of up to 20TB (compared to the N300), you can rely on the N300 Pro to help you take your business to the next level. Delivering the 7200 RPM speed you need to access your data quickly and 24/7 operation to help keep your data readily accessible, these drives are optimized to help keep your business growing.

The N300 Pro is designed to work in wide temperature ranges and has built-in RV sensors to mitigate rotational vibration in a multi-bay RAID environment, so you can be confident that this drive will perform wherever and whenever you need it most. Plus, this drive is engineered with CMR technology to deliver optimal read/write performance and broad compatibility with most NAS systems. When speed, reliability and performance are critical to your business, the N300 Pro hard drive delivers.

Applications:
• Network Attached Storage (NAS) for high-intensity workloads
• NAS systems for medium or large-sized businesses
• RAID-optimized NAS systems with up to 24 bays

For over 50 years, Toshiba has been developing and manufacturing hard drives. Like all Toshiba products, the N300 Pro 3.5" NAS internal hard drive is designed from the ground up with your needs in mind, then tested again and again for reliability.

Built for Mid to Large-sized Business
Supports RAID-optimized NAS systems with up to 24 bays. Designed for 24/7 operation with workload rate of up to 550 TB/year. CMR technology delivers optimal performance and broad compatibility with most NAS systems

Rotational Vibration Compensation Technology
Integrated RV sensors help ensure high reliability against shock and vibrations by detecting and minimizing rotational vibration effects in multi-bay NAS system.

Toshiba Cache Technology
On-board cache algorithm and buffer management optimize cache allocation between read and write cycles for improved real-time drive performance.

High Performance during intensive operations
7200 RPM speed and up to 1.0 GB data buffer ensures high performance and fast read speed during data intensive operation. Fast data transfer speed 294 MB/s provides quick access to essential content.

Data Protection Technologies
Ramp loading technology reduces wear to the recording head and media for improved drive reliability. Error Recovery Control technology limits recovery time to help optimize error correction in RAID environments.

High Durability and Heat Prevention
The drive automatically adjusts the seek speed when it reaches a critical temperature to help reduce heat buildup during high temperature operation.

Peace of Mind
High reliability with MTTF up to 2.5 million hours.

Toshiba N300 Pro Features

  • Built for Mid to Large-sized Business
  • Rotational Vibration Compensation Technology
  • Toshiba Cache Technology
  • High Performance during intensive operations
  • Data Protection Technologies
  • High Durability and Heat Prevention
  • High reliability with MTTF up to 2.5 million hours

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Store vast amounts of data with 20TB capacity, perfect for extensive media libraries and critical backups.
  • Experience smooth, responsive performance thanks to a rapid 7,200 RPM rotational speed for quick access.
  • Benefit from the generous 1024MB cache size, ensuring faster data transfers and improved system efficiency.
  • Effortlessly integrate this drive into your setup using the high-speed SATA III interface for reliable connectivity.
  • Rely on robust 24x7 operation, designed for continuous use in demanding network attached storage (NAS) environments.
  • Protect your valuable data with advanced shock sensors and vibration compensation, enhancing long-term reliability.

What's in the box:

  • Toshiba N300 Pro 20TB SATA III 3.5" Internal NAS Hard Drive
  • Toshiba 5 Year Limited Warranty
