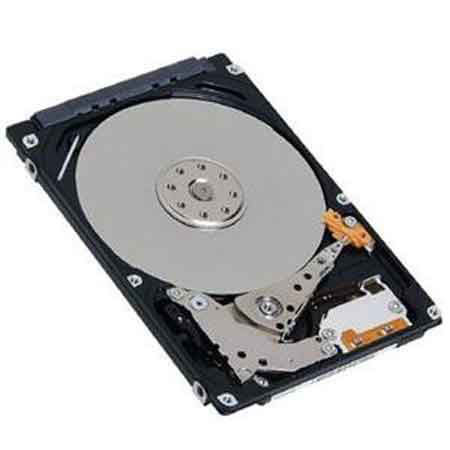

Toshiba MQ01ACF050 500GB 2.5" SATA 3.0/PATA 8 Internal Hard Disk Drive
See all Toshiba items

Toshiba MQ01ACF050 500GB 2.5" SATA 3.0/PATA 8 Internal Hard Disk Drive, 7200RPM, 6 Gbps Transfer Rate

SKU: TOHDKCC00
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Toshiba MQ01ACF050 Specifications

  • Capacity

    500GB

  • Number of Platters

    1

  • Rotational Speed

    7200RPM

  • Transfer Rate to Host

    6 / 3 /1.5 Gb/sec

  • Bytes per sector

    Host: 512 byte
    Disk: 4096 byte

  • Logical Blocks (LBA)

    976, 773, 168

  • Track-to-track Seek

    2ms

  • Average Seek Time

    12ms

  • Max. Seek Time

    22ms

  • Average Latency

    4.13ms

  • Buffer Size

    16MB

  • Temperature

    Operating: 5 to 55 deg. C (41 to 131 deg. F) / Non-operating: -40 to 65 deg. C (-40 to 149 deg. F)

  • Shock

    Operating: 3430 m/s2 (350G) (2ms half sine)
    Non-operating: 8820 m/s2 (900G) (1ms half sine)

  • Vibration

    Operating: 9.8 m/s2 (1.0G)
    Non-operating: 49 m/s2(5.0G)

  • Acoustic Noise (idle/seek)

    23dB/23dB

  • ROHS Compliant

    Yes

  • Power Requirements

    Voltage: 5V (+/- 5%)
    Spin up (start) Power: 5.5W (Max.)
    Seek Power: 2.1W (Typ.)
    Read/Write Power: 2.1W (Typ.)
    Low Power Idle: 0.8W (Typ.)
    Standby Power: 0.18W (Typ.)
    Sleep Power: 0.18W (Typ.)

  • Dimensions (W x D x H)

    69.85 x 7 x 100mm / 2.75 x 0.28 x 3.94"

  • Weight

    92g / 3.25oz (max.)

  • UPC Code

    696859079405

About Toshiba MQ01ACF050

The Toshiba MQ01ACF050 500GB 2.5" SATA 3.0/PATA 8 Internal Hard Disk Drive is designed for greater speed and mobility, It delivers 7, 200 RPM performance in a compact 2.5" 7.0mm-high form factor.

Toshiba MQ01ACF050 Features

  • Serial ATA (SATA) 3.0 / ATA-8 interface for superior throughput performance
  • Large 16MB Cache Buffer for faster read and write performance

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Serial ATA (SATA) 3.0 / ATA-8 interface for superior throughput performance
  • Large 16MB Cache Buffer for faster read and write performance

What's in the box:

  • Toshiba MQ01ACF050 500GB 2.5" SATA 3.0/PATA 8 Internal Hard Disk Drive
  • Toshiba 3 Year Limited Warranty
