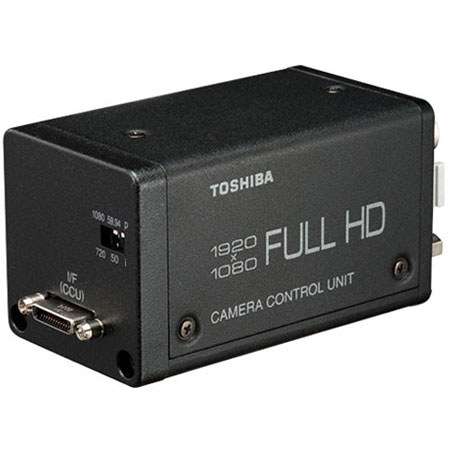

Toshiba IK-HR1CD Camera Control Unit for IK-HR1H Camera, 1920x1080 Pixels, 12 VDC Power Supply, 54dB Signal to Noise Ratio, DVI-I Output Signal

SKU: TOIKHR1CD MFR: IK-HR1CD
Earn VIP Reward Points

Key Features

  • Enhance your IK-HR1H camera with this Toshiba camera control unit for seamless operation.
  • Achieve precise control with the IK-HR1CD, featuring a responsive serial data (RS232C) interface.
  • Enjoy high-quality video output with DVI-I connectivity, supporting both digital & analog RGB.
  • Customize your video settings easily with the manual gain and white balance adjustments.
  • This camera control unit ensures stable performance with a 12V DC power supply.
  • Experience superior image clarity with a signal-to-noise ratio of 54dB on this Toshiba unit.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Toshiba IK-HR1CD Specifications

  • Image Sensor

    1/3" color CMOS sensor (Rolling shutter)

  • Pixels

    Horizontal: 1920, Vertical: 1080 (max.)

  • Signal System

    1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

  • Scan Frequencies

    Horizontal: 67.43kHz, Vertical: 59.94Hz (when set to 1080/59.94p
    Horizontal: 56.25kHz, Vertical: 50Hz (when set to 1080/50p)
    Horizontal: 33.72kHz, Vertical: 59.94Hz (when set to 1080/59.94i)
    Horizontal: 28.13kHz, Vertical: 50Hz (when set to 1080/50i)
    Horizontal: 44.96kHz, Vertical: 59.94Hz (when set to 720/59.94p)
    Horizontal: 37.50kHz, Vertical: 50Hz (when set to 720/50p)

  • Sensitivity

    F4 standard (2000 lx, 3000K)

  • Minimum Illumination

    8 lx standard (50 IRE, F1.4, gain 18 dB, gamma setting ON (setting value 0), 3000K

  • Signal to Noise Ratio

    54 dB standard (gain 0 dB Y-conversion)

  • Output Signal

    DVI-I (Digital RGB, Analog RGB): DVI-I terminal

  • Sync System

    Internal

  • Sync Output

    H SYNC: 5 V + 0.5 V / -1.0 V (Positive polarity) DVI-I terminal
    V SYNC: 5 V + 0.5 V / -1.0 V (Positive polarity) DVI-I terminal

  • White Balance

    ATW (Automatic tracing white balance), AWB (Automatic white balance), MANUAL (Manual)

  • Gain

    MANUAL (Manual), OFF (0 dB)

  • Scene

    Scene file: A, B, C, D, E

  • Remote Control

    Serial data interface (RS232C)

  • Power Supply

    12V DC +/-10%

  • Power Consumption

    Approx. 6.2 W (including the camera head)

  • Operating Temperature

    32 - 104deg.F (0 - 40deg.C)

  • Operating Humidity

    Less than 90% (non condensing)

  • Dimensions (WxHxD)

    1.7x1.7x3.1" (4.31x4.31x7.87cm)

  • Weight

    0.3lbs (0.13kg)

About Toshiba IK-HR1CD

With the Toshiba IK-HR1CD Camera Control Unit, you gain advanced control capabilities for your Toshiba IK-HR1H Remote Color Head Camera, making it an ideal solution for television production, particularly in complex multi-camera setups. This unit supports the high-quality DVI output standard, delivering crisp, clear images with resolutions up to 1920x1080 pixels.

The IK-HR1CD CCU is capable of offering a variety of output modes, including 1080p at 60 fps, 1080i at 30 fps, and 720p at 60 fps, providing versatility to match your specific production needs. Despite its powerful features, the unit maintains a compact size, measuring just 1.7x1.7x3 inches (44x44x78mm), making it a perfect match for the ultra-small dimensions of the IK-HR1H camera.

This camera control unit also includes five selectable scene files (A, B, C, D, and E), allowing you to easily adapt to different shooting conditions. Powered by a reliable 12 VDC supply, the IK-HR1CD provides user-friendly control over white balance (with auto tracking, auto, and manual options) and shutter speed.

For added convenience, these functions can be remotely controlled by the user via the RS-232C protocol, offering a seamless integration into your existing setup. With a 54dB signal to noise ratio, the IK-HR1CD ensures a clean, noise-free signal for your Toshiba IK-HR1H camera, enhancing your production quality.

Toshiba IK-HR1CD Features

  • Provides camera control for Toshiba IK-HR1H offering ease of television production, especially in multi-camera environments
  • Supports DVI 1080p at 60 fps, 1080i at 30 fps, 720p at 60 fps (switchable) output
  • Compact size - measures 1.7x1.7x3 " (44x44x78 mm), matching the ultra small structure of the IK-HR1H camera
  • Includes 5 scene files (A, B, C, D and E) that can be chosen for production depending on the shooting conditions
  • Draws 12 VDC power
  • Offers white balance (auto tracking / auto / manual) and shutter speed control functions that can be remotely controlled by the user via the RS-232C protocol

Product Documents

User Manual

Key Features

  • Enhance your IK-HR1H camera with this Toshiba camera control unit for seamless operation.
  • Achieve precise control with the IK-HR1CD, featuring a responsive serial data (RS232C) interface.
  • Enjoy high-quality video output with DVI-I connectivity, supporting both digital & analog RGB.
  • Customize your video settings easily with the manual gain and white balance adjustments.
  • This camera control unit ensures stable performance with a 12V DC power supply.
  • Experience superior image clarity with a signal-to-noise ratio of 54dB on this Toshiba unit.

What's in the box:

  • Toshiba 1 Year Warranty
