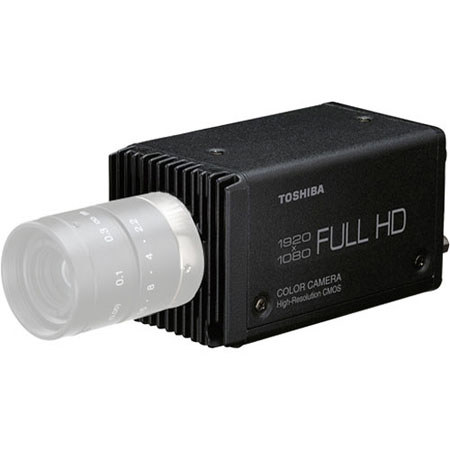

Toshiba IK-HR2D Ultra-Compact Full HD CMOS Industrial Camera
See all Toshiba items

Toshiba IK-HR2D Ultra-Compact Full HD CMOS Industrial Camera, 1920x1080 Output Pixels, DVI-D Output, USB 2.0 Port, C-Type Lens Mount

SKU: TOIKHR2D
(1)

This item is no longer available.

Recommended Alternatives

Toshiba IK-HD1H: Picture 1 regular
Toshiba IK-HD1H 3 CCD Remote Color Camera Head
$7,200.00$5,157.95
Toshiba IK-HR1H: Picture 1 regular
Toshiba IK-HR1H CMOS Hi-Def Color Camera
$2,650.00$1,899.00
Toshiba IK-TF5P2: Picture 1 regular
Toshiba IK-TF5P2 1/3" 3CCD Microprism Progressive Scan PoCL Digital Camera
$2,380.00$1,709.95
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2014-07-30T21:00:00

Rated 4 out of 5

Great product but no power cord

We use these attached to microscopes in a university Biology labs. Very high quality and easy to use for both still and video images. Be aware: you need to purchase the $110 AC adapter separately (TOACY415A).

ACCOUNTS P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Toshiba IK-HR2D Specifications

  • Power Requirements

    12VDC +/- 10% DCIN connector (4pin)

  • Power Consumption

    Approx. 4 watts

  • Image Sensor

    1/3" progressive scan color CMOS

  • Output Pixels

    Horizontal: 1920, Vertical: 1080

  • Scanning System

    DVI Output (DVI-D Connector): 1080p59.94 (H: 67.43 kHz, V: 59.94 Hz)
    1080p50 (H: 56.25 kHz, V: 50 Hz)
    1080i59.94 (H: 33.72 kHz, V: 59.94 Hz)
    1080i50 (H: 28.13 kHz, V: 50 Hz)
    720p59.94 (H: 44.96 kHz, V: 59.94 Hz)
    720p50 (H: 37.5 kHz, V: 50 Hz)
    USB Output (UVC 1.1-compliant YUV 4:2:2, non-compressed): 1920 x 1080 (approx. 5 fps)
    1280 x 720 (approx. 10 fps)

  • Sensitivity

    f/4 standard (2000 lux, 3000K)

  • Min. Illumination

    8 lux standard (50 IRE, f1.4, gain + 18 dB)

  • Frame Rate (DVI)

    30 fps (1080i), 60 fps (1080p/720p)

  • Frame Rate (USB)

    5 fps (1080 mode), 10fps (720 mode

  • Operating Temperature

    0deg.C to + 40deg.C

  • Storage Temperature

    -20deg.C to + 60deg.C

  • Humidity

    90% or less (non-condensing)

  • Shutter

    Manual: Off (1/60s or 1/50s), 1/100s, 1/250s, 1/500s, 1/1000s, 1/2000s, 1/4000s, 1/8000s, 1/16000s, 1/32000s
    Auto Level: Range of -100 to 100
    Synchronized Scan: Set by horizontal scanning time

  • Gain

    MANUAL (manual), OFF (0 dB)

  • White Balance

    AWB (Automatic White Balance)
    ATW (Automatic Tracking White Balance)
    MANUAL (Manually adjustable)

  • Gamma

    MANUAL (0 to 12 dB in 1 dB steps) or OFF

  • Scene File Setting

    5 files (A/B/C/D/E)

  • Dimensions (HxWxD)

    1.73x1.73x3.07" (4.39x4.39x7.79cm)

  • Weight

    4.3oz (121.90g)

About Toshiba IK-HR2D

The Toshiba IK-HR2D Ultra-Compact Full HD CMOS Industrial Camera offers true 1920 x 1080 progressive-scan high-definition video output at 60 frames per second. Its ultra-compact size and high image quality make it suitable for a wide variety of industrial monitoring applications, such as microscopy, quality assurance and scientific imaging/diagnostics.

The IK-HR2D camera features a C-type mount (26mm diameter) for attaching most industrial-style lenses. There's a DVI-D output for outputting all supported video signals (which include 1080i and 720p as well) and a USB 2.0 port supports the output of video clips (at approx. 5 and 10 fps) and eliminates the need for a frame grabber. A wealth of automatic and manual settings is available: you can set both shutter and white balance manually or choose an automatic mode and you can also manually set gamma and gain. The IK-HR2D stores up to five preset scene files, for immediately selecting camera settings based on pre-determined conditions.

Toshiba IK-HR2D Features

  • Outputs full 1920 x 1080 pixels at 60 frames per second
  • Output selectable between 1080p, 1080i and 720p
  • Utilizes 1/3" CMOS 2.1 megapixel HD sensor
  • On-screen menu
  • Weighs only 4.3oz. (without lens)
  • Digital DVI
  • Auto and manual white balance
  • Auto and manual electronic shutter
  • C-mount
  • USB 2.0 port outputs video clips and eliminates need for frame grabber

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Output selectable between 1080p, 1080i and 720p
  • Utilizes 1/3 CMOS 2.1 megapixel HD sensor
  • On-screen menu
  • Weighs only 4.3oz. (without lens)
  • Digital DVI
  • Auto and manual white balance

What's in the box:

  • Toshiba 1 Year Warranty
