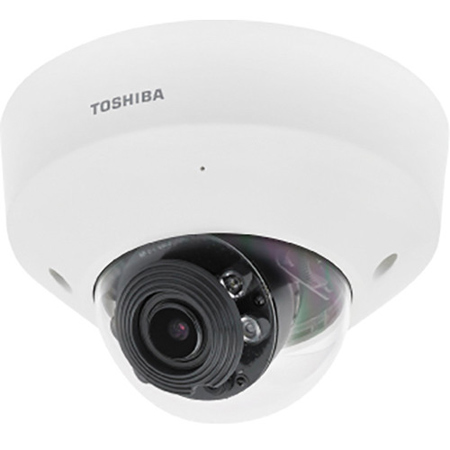

Toshiba IK-WD31A True Day/Night Indoor IP Dome Camera

Toshiba IK-WD31A True Day/Night Indoor IP Dome Camera, 3MP, 4x Optical Zoom, 2048x1536, 20fps, H.264 Smart Codec, H.264, MJPEG, PoE

SKU: TOIKWD31A
Be the first to review this item

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Toshiba IK-WD31A Specifications

  • Image sensor

    1/3" CMOS 3MP

  • Effective pixels

    2048 x 1536 (4:3)

  • Lens

    Varifocal f=2.8 - 12mm, F=1:1.8

  • Lens type

    Remote zoom, remote focus

  • Zoom

    4x optical, 3x digital

  • Angle of view

    29 deg. - 82 deg. horizontal
    22 deg. - 61 deg. vertical

  • Min. Illumination

    0.03 lux / F1.8 (Night mode, LED-OFF, Gain 100%, 1/30 sec), 0 lux w/IR on

  • IR illuminators

    Adaptive IR LED, 20m range

  • Day/Night

    Yes, IR cut filter

  • Wide Dynamic Range

    True WDR

  • White balance

    Manual, AWB (2500K - 10000K),

  • Gain (AGC)

    Auto

  • BLC

    Yes

  • Privacy mask

    Yes

  • Motion detection

    Yes

  • Tamper protection

    Yes

  • Video Compression

    H.264 Smart Codec, H.264, MJPEG

  • Resolutions

    2048x1536, 1920x1080, 1280x1024,1280x720, 1024x768, 640x480, 320x240

  • Video streams

    3 streams

  • Frame rate (max)

    20 fps at 2048x1536
    30 fps at 1920x1080
    60 fps at 1280x720 (WDR-OFF)

  • Image rotation

    Hallway, Flip, Mirror Views

  • Audio Compression

    G.726, G711

  • Audio In/Out

    2 Built in MIC, MIC In (plug-in power 3.3V, 200kOhms), Line OUT (1 Vrms)

  • Ethernet connectors

    10 Base-T/100 Base-TX, RJ45 connector

  • Digital In/Out

    1 in/1 out

  • SD card slot

    MicroSD 64GB max

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X

  • ONVIF

    Profile-S (test tool v14.06)

  • Maximum user access

    10 clients

  • Bandwidth control

    QoS, CoS

  • Camera set-up program

    Installation Wizard

  • Plug-In

    Active X

  • Alarm recording

    FTP, email, MicroSD card

  • Power requirements

    802.3af PoE, 12V DC +/- 10 %

  • Power consumption

    12V DC / 2.1A

  • Operation temperature

    14 deg. F to 122 deg. F (-10 deg. C to 50 deg. C)

  • Operation humidity

    Approx. 90%

  • Approvals

    FCC Class B, IC Class B, UL 60950-1, CSA C22.2 No. 60950-1

  • Web browser support

    Internet Explorer Ver. 8.0 or later

  • Supported OS

    Windows XP, Vista Business, Windows 7 professional

  • Dimensions (H x Dia.)

    4.3 x 6.3" / 109.22 x 160.02mm

  • Weight

    1.67lbs / 0.76kg

Related Articles & Videos

About Toshiba IK-WD31A

The Toshiba IK-WD31A is an indoor IP camera with a suite of high-end features and specifications. Three megapixel resolution, 4x optical remote zoom and remote focus make covering large areas easy, while H.264 Smart Codec reduces network bandwidth. Adaptive IR LEDs and Hallway view make it flexible for almost any indoor application. ONVIF compliant and 802.3af Power over Ethernet ensure compatibility with any system.

Toshiba IK-WD31A Features

  • 3MP resolution with remote optical zoom and remote focus
  • H.264 Smart Codec reduces network bandwidth without sacrificing quality
  • Adaptive IR LEDs automatically adjust intensity
  • Hallway view rotates image 90 degrees for portrait orientation
  • ONVIF compliant for maximum compatibility
  • Power over Ethernet (802.3af)
  • MicroSD card for edge recording
  • True WDR and True D/N captures images in difficult lighting

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Power over Ethernet (802.3af)
  • MicroSD card for edge recording

What's in the box:

  • Toshiba IK-WD31A True Day/Night Indoor IP Dome Camera
  • 3x Screws
  • 3x Anchors
  • AV Out Cable
  • Torx Driver
  • Alignment Sticker
  • CD-ROM
  • Quick Start Guide
  • Important Safeguards
  • Toshiba 2 Year Parts & Labor Limited Warranty
