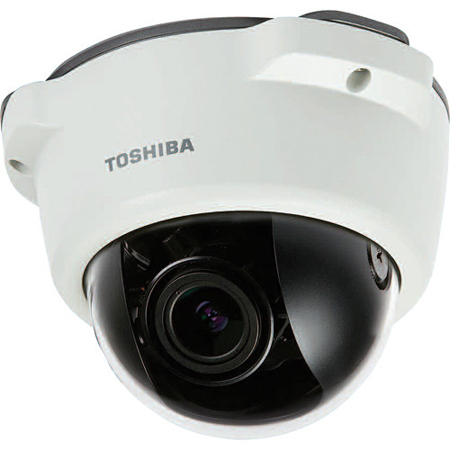

Toshiba IK-WR04A Day/Night Outdoor IP Network Mini-Dome Camera
See all Toshiba items

Toshiba IK-WR04A Day/Night Outdoor IP Network Mini-Dome Camera, 1MP, 4x Optical Zoom, 1280 x 800, 30fps, H.264, MPEG4, MJPEG, PoE

SKU: TOIKWR04A
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Toshiba IK-WR04A Specifications

  • Image sensor

    1/4" progressive scan CMOS 1MP

  • Effective pixels

    1280 x 800

  • Lens

    Varifocal f=3mm to 12mm, F=1.4

  • Lens type

    Fixed Iris

  • Zoom

    4x optical, 4x digital

  • Angle of View

    24 - 61 degrees horizontal, 15 - 38 degrees vertical

  • Min. Illumination

    0.38 lux at F1.4 (50%)

  • Electric shutter

    1/5-1/32,000 sec

  • Day/Night

    Yes, electronic

  • Wide dynamic range

    Yes

  • White balance

    AWB (2800K to 10,000K)

  • Gain (AGC)

    Auto

  • BLC

    Yes

  • Privacy mask

    Yes

  • Motion detection

    Yes

  • Video Compression

    H.264, MPEG4, MJPEG

  • Resolutions

    1280x800, 640x400, 320x200,176x144

  • Frame rate (max)

    Up to 30 fps at 1280x800

  • Video streams

    4 simultaneous

  • Protocols

    IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

  • ONVIF

    Yes, ver. 1.02

  • Maximum user access

    10 clients

  • Security

    Multi level ID/Password, IP address filtering, HTTPS, 802.1x port-based authorization

  • Basic authentication

    Yes (Windows standard)

  • Bandwidth control

    QoS, CoS

  • Camera set-up program

    Installation Wizard (v.1.0.0.7 or later)

  • Plug-In

    Active X

  • Alarm recording

    FTP, email, MicroSD card,HTTP, samba

  • Ethernet connectors

    10 Base-T/100 Base-TX, RJ45

  • Digital In/Out

    1 IN

  • SD card slot

    MicroSD/SDHC, max 32GB

  • Power requirements

    802.3af PoE, 12V DC

  • Power consumption

    3.84W max

  • Operation temperature

    -22 deg. F to 122 deg. F (-30 deg. C to 50 deg. C)3

  • Operation humidity

    Approx. 90%

  • Storage temperature

    -4 deg. F to 140 deg. F (-20 deg. C to 60 deg. C)

  • Storage humidity

    Approx. 95%

  • Approvals

    FCC Class B, IC(ICES-003), UL 60950-1, cUL

  • Vandal resistance

    IK10

  • Outdoor rating

    IP66

  • Web browser support

    Internet Explorer Ver. 8.0

  • Supported OS

    Windows XP, Vista Business, Windows 7 professional, Linux 2.6

  • Dimensions (H x Dia.)

    3.15 x 4.33" / 80.01 x 109.98mm

  • Weight

    1.1lbs / 0.50kg

About Toshiba IK-WR04A

The Toshiba IK-WR04A IP camera is ideal for outdoor applications that require HD resolution. With varifocal zoom, 720p HD and IP66 rated housing, this compact mini-dome is a practical camera for outdoor IP video systems. ONVIF compliance and 802.3af Power over Ethernet simplifies installation.

Toshiba IK-WR04A Features

  • 720p HD video high resolution image capture
  • Wide dynamic range enables use in multiple locations
  • Varifocal 3mm - 12mm optical zoom
  • Works great with the following recording solutions: ESV series, DVSe, XVSe, NVSe, IPSe, NVSPRO
  • ONVIF compliant for maximum compatibility
  • Power over Ethernet (802.3af)
  • MicroSD card for edge storage
  • IP66 rated housing
  • IK10 vandal proof rating

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • IP66 rated housing

What's in the box:

  • Toshiba IK-WR04A Day/Night Outdoor IP Network Mini-Dome Camera
  • PoE Adapter
  • Screws
  • CD-ROM
  • Quick Installation Guide
  • Toshiba 1 Year Limited Warranty
