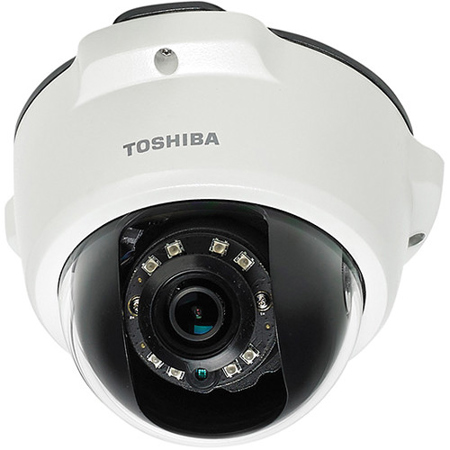

Toshiba IK-WR05A Wide Angle Day/Night Outdoor IP Mini-Dome Camera
See all Toshiba items

Toshiba IK-WR05A Wide Angle Day/Night Outdoor IP Mini-Dome Camera, 2MP, 1920x1080, 30fps, H.264, MPEG4, MJPEG, PoE

SKU: TOIKWR05A
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Toshiba IK-WR05A Specifications

  • Image sensor

    1/2.7" progressive scan CMOS 2MP

  • Effective pixels

    1920 x 1080

  • Lens Fixed

    f=2.8mm, F=2.0

  • Lens type

    Fixed Iris

  • Zoom

    4x digital

  • Angle of View

    110 deg. horizontal, 81.5 deg. vertical

  • Min. Illumination

    0.5 lux (Color), 0.001 lux (B/W)

  • IR illuminators

    15m range

  • Electric shutter

    1/5-1/32,000

  • Day/Night

    Yes, mechanical

  • Wide Dynamic Range

    Yes

  • White balance

    AWB (2800K to 10,000K)

  • Gain (AGC)

    Auto

  • BLC

    Yes

  • Privacy mask

    Yes

  • Motion detection

    Yes

  • Video Compression

    H.264, MPEG4, MJPEG

  • Resolutions

    1920x1080, 1280x1024, 1280x720, 1024x768, 640x480, 320x240

  • Frame rate (max)

    Up to 30 fps at 1920x1080

  • Video streams

    4 simultaneous

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X and UDP

  • ONVIF

    Yes, Profile S and ver. 1.02

  • Maximum user access

    10 clients

  • Security

    Multi level ID/Password, IP address filtering, HTTPS, 802.1x port-based authentication

  • Basic authentication

    Yes (Windows standard)

  • Bandwidth control

    QoS, CoS

  • Camera set-up program

    Installation Wizard

  • Plug-In

    Active X

  • Alarm recording

    FTP, email, MicroSD card, HTTP, samba

  • Ethernet connectors

    10 Base-T/100 Base-TX, RJ45 connector

  • Digital In/Out

    1 IN / 1 OUT

  • SD card slot

    Micro SD/SDHC, max 32GB

  • Power requirements

    802.3af PoE, 12V DC

  • Power consumption

    3.84W max

  • Operation temperature

    -4 deg. F to 122 deg. F (-20 deg. C to 50 deg. C)

  • Operation humidity

    Approx. 90%

  • Approvals

    FCC Class B, IC (ICES-003) UL 60950-1, cUL

  • Vandal resistance

    IK10

  • Outdoor rating

    IP66

  • Web browser support

    Internet Explorer Ver. 8.0

  • Supported OS

    Windows XP, Vista Business, Windows 7 professional, Linux 2.6

  • Dimensions (H x Dia.)

    3.7 x 5.24" / 93.98 x 133.10mm

  • Weight

    1.1lbs / 0.50kg

About Toshiba IK-WR05A

The IK-WR05A IP camera has a wide angle, pre-focused lens and IR LEDs, making it ideal for outdoor wide area surveillance. With a 110 deg. viewing angle, 1080p HD resolution and IR LEDs, it can handle almost all outdoor surveillance requirements. IP66 rated housing and small form factor make it environmentally and visually appealing.

Toshiba IK-WR05A Features

  • 110 deg. horizontal viewing angle
  • 1080p HD video image capture
  • True Day/Night with IR LEDs
  • Pre-focused lens for objects at close range up to infinity
  • ONVIF for maximum compatibility
  • Power over Ethernet (802.3af)
  • MicroSD card for edge recording
  • IP66 rated housing

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • IP66 rated housing

What's in the box:

  • Toshiba IK-WR05A Wide Angle Day/Night Outdoor IP Mini-Dome Camera
  • Video Out Cable
  • CD-ROM
  • Alignment Sticker
  • Clamp Filter
  • Screws And Anchors
  • RJ45 Female to Female Couple
  • Toshiba 2 Year Parts & Labor Limited Warranty
