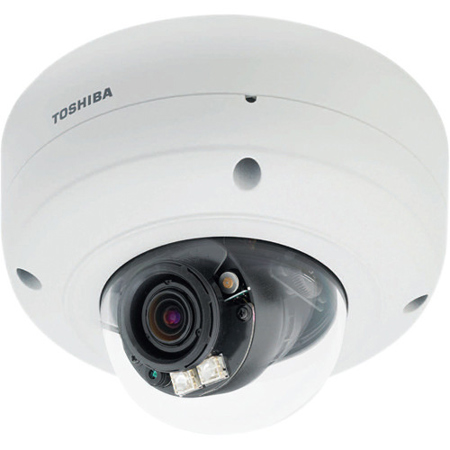

Toshiba IK-WR14A Day/Night Outdoor IP Vandal Dome Camera
See all Toshiba items

Toshiba IK-WR14A Day/Night Outdoor IP Vandal Dome Camera, 2MP, 1920x1080, 3x Optical Zoom, 30fps, H.264, MPEG4, MJPEG, PoE

SKU: TOIKWR14A
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Toshiba IK-WR14A Specifications

  • Image sensor

    1/2.7" progressive scan CMOS

  • Effective pixels

    1920 x 1080 (2 megapixel)

  • Lens

    Vari-focal f=3mm to 9mmF=1.2 (wide), F=2.1 (tele)

  • Lens type

    Remote zoom, remote focus

  • Zoom

    3x optical, 4x digital

  • Angle of View

    32 deg. - 93 deg. horizontal, 24 deg. -68 deg. vertical

  • Min. Illumination

    0.04 lux/F1.2 (Night mode, LED-OFF, Gain 100%, 1/30 sec), 0 lux w/IR on

  • IR illuminators

    SRLED 3, 20m range

  • Electric shutter

    1/5-1/40,000

  • Day/Night

    Yes, IR cut filter

  • Wide Dynamic Range

    Yes

  • White balance

    AWB

  • Gain (AGC)

    Auto

  • BLC

    Yes

  • Flickerless

    Yes, 50/60 Hz selectable

  • Privacy mask

    Yes

  • Tamper detection

    Yes

  • Motion detection

    Yes

  • Video Compression

    H.264, MPEG4, MJPEG

  • Resolutions

    1920x1080, 1280x1024, 1280x720, 1024x768, 640x480, 320x240

  • Frame rate (max)

    Up to 30 fps at 1920x1080 (H.264)
    Up to 30 fps at 1920x1080 (MPEG4)
    Up to 30 fps at 1920x1080 (MJPEG)

  • Video streams

    4 simultaneous

  • Composite video output

    NTSC and PAL

  • Audio Compression

    AAC, GSM, G.711

  • Audio In/Out

    2 MIC In (plug-in power 3.3V, 200kOhms) / LINE OUT (1 Vrms)

  • Protocols

    IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X

  • ONVIF

    Yes, ver. 1.02

  • Maximum user access

    10 clients

  • Security

    Multi level ID/Password, IP address filtering, HTTPS, 802.1x

  • Basic authentication

    Yes (Windows standard)

  • Bandwidth control

    QoS, CoS

  • Camera set-up program

    Installation Wizard

  • Plug-In

    Active X

  • Alarm recording

    FTP, email, SD card

  • Ethernet connectors

    10 Base-T/100 Base-TX, RJ45

  • Digital In/Out

    1 IN / 1 OUT

  • SD card slot

    Micro SD

  • Power Requirements

    12V DC +/- 10 %, 24V AC+/- 10 % 60Hz, 802.3af Class 3 PoE

  • Power consumption

    12V DC / 0.5 A, 24V AC / 0.5A

  • Operation temperature

    PoE: -22 deg. F to 122 deg. F (-30 deg. C to 50 deg. C)
    12V DC and 24V AC: -13 deg. F to 122 deg. F (-25 deg. C to 50 deg. C)

  • Operation humidity

    Approx. 90%

  • Approvals

    FCC Class A, IC Class A, UL 60950-1, CSA C22.2 No. 60950-1

  • Vandal resistance

    IK10

  • Environmental

    IP66

  • Web browser support

    Internet Explorer Ver. 8.0 or later

  • Supported OS

    Windows XP, Vista Business, Windows 7 professional, Windows 8, Linux

  • Dimensions (H x Dia.)

    6.8 x 4.5" / 172.72 x 114.30mm

  • Weight

    2.98lbs / 1.35kg

About Toshiba IK-WR14A

The IK-WR14A reduces upfront installation time with its incorporation of remote optical zoom, one-touch remote focus and a new cable management system based on PoE. H.264 and SRLED allow capture of 1080p full HD resolution video at 30 fps in any lighting condition. ONVIF compliance means the camera is interoperable with third-party IP solutions, while its vandal-resistant IP66 metal housing is rugged for outdoor deployments.

Toshiba IK-WR14A Features

  • Remote optical zoom and one-touch remote auto focus for faster installation
  • Full 1080p HD video high resolution image capture (1920 x 1080)
  • Advanced SRLED technology for edge to edge lighting down to 0 lux
  • Wide dynamic range optimizes visibility in difficult lighting conditions
  • Vandal resistant IP66 housing
  • ONVIF compliant interface for maximum third-party compatibility
  • Improved cable management

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Vandal resistant IP66 housing
  • Improved cable management

What's in the box:

  • Toshiba IK-WR14A Day/Night Outdoor IP Vandal Dome Camera
  • AV Out Cable
  • CD-ROM
  • Alignment Sticker/Mounting Plate
  • Quick Start Guide and Important Safeguards
  • Waterproof Connector & Bushing
  • Gasket
  • Torx Wrench
  • Silica Gel and Tape
  • Hex Nut
  • Screws and Anchors
  • Toshiba 2 Year Parts & Labor Limited Warranty
