TOA Electronics 2 Channel Infrared Wireless Tuner

SKU: TOIR702TUS MFR: IR702TUS
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless tuner's exceptional signal-to-noise ratio.
  • Ensure seamless connectivity using the BNC connector for reliable audio transmission.
  • Enjoy low latency and stable wireless performance with dual-channel infrared technology.
  • This wireless microphone system is perfect for presentations, lectures, and performances.
  • Benefit from a wide operating temperature range, making it reliable in various environments.
  • Quickly set up your wireless microphones with included accessories for immediate use.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics 2 Channel Infrared Wireless Tuner Specifications

  • Carrier Frequency

    Channel A: 3.100 MHz
    Channel B: 3.350 MHz

  • Connector

    2x 75Ohms BNC Connector

  • Signal-to-Noise Ratio

    61dB or more

  • Squelch

    32.768kHz

  • Operating Temperature

    14 to 122 deg. F / -10 to +50 deg. C

  • Power

    AC Mains 50/60Hz (AC Adapter Included)
    Power Consumption 15W or Less

  • Dimensions (W x H x D)

    8.27 x 1.73 x 8.3" / 210.05 x 43.94 x 210.82mm

  • Weight

    1.39lbs / 0.63kg

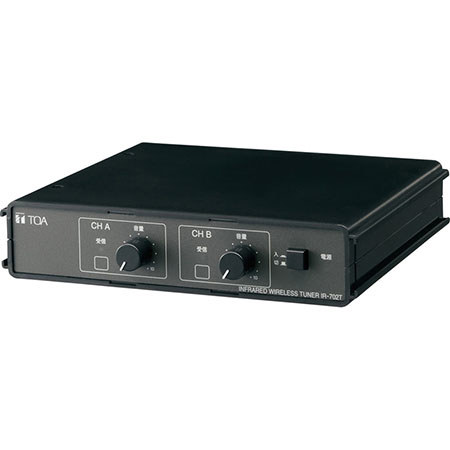

About TOA Electronics 2 Channel Infrared Wireless Tuner

The TOA Electronics 2 Channel Infrared Wireless Tuner employs a fixed frequency system. This tuner is combined with an infrared wireless microphone and an infrared wireless receiver to make up the infrared wireless microphone system. The infrared microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent conference rooms or school classrooms.

This tuner is intended for use with the TOA Infrared (IR) Wireless Microphone System. The tuner features 2 BNC inputs for connecting 2 IR510R, 520R and 500R infrared receivers and up to 4 receivers may be used with the YW-1022 distributor.

A pair of 1/4" phone audio outputs on the rear panel may be set to send a stereo mixed or discrete signal to a PA system. Level dials and channel switches are featured on the front panel and the IR-702T may be rack mounted using the optional MB-WT3 and MB-WT4 hardware brackets.

TOA Electronics 2 Channel Infrared Wireless Tuner Features

  • Comes with a built-in 2-channel fixed-frequency tuner
  • Enables installation of up to 4 infrared light receivers per unit
  • Equipped with signal reception light and knob for microphone volume control
  • Two line outputs, one with a MIX output switch allowing output of mixed voices from channels A and B
  • Rack-mountable with optional brackets (MB-WT3/MB-WT4)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience crystal-clear audio with this wireless tuner's exceptional signal-to-noise ratio.
  • Ensure seamless connectivity using the BNC connector for reliable audio transmission.
  • Enjoy low latency and stable wireless performance with dual-channel infrared technology.
  • This wireless microphone system is perfect for presentations, lectures, and performances.
  • Benefit from a wide operating temperature range, making it reliable in various environments.
  • Quickly set up your wireless microphones with included accessories for immediate use.

What's in the box:

  • TOA Electronics 2 Channel Infrared Wireless Tuner
  • AC Adapter (6.56')
  • 1/4 " Phone Audio Cord 3.28'
  • 6x Color Labels
  • 4x Rubber Feet
  • TOA Electronics 1 Year Limited Warranty
