19% Off

TOA Electronics Rack-Mountable 6 Channel Stereo Mixer, 20Hz-20kHz Frequency Response

SKU: TOM243L MFR: M243L
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this low noise 6-channel stereo mixer for recording.
  • Versatile inputs: XLR, RCA, & 1/4" jacks on this recording mixer handle any audio source.
  • Sculpt your sound with responsive EQ controls, perfect for live sound and studio mixing.
  • Durable & rack-mountable design ensures this mixer withstands rigorous use, gig after gig.
  • USB interface enables seamless integration with your computer for recording and playback.
  • Customize your mix with assignment switches, routing audio to your exact specifications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics Rack-Mountable 6 Channel Stereo Mixer Specifications

  • Frequency Response

    20Hz - 20kHz

  • Total Harmonic Distortion (THD)

    Less than 0.01%

  • Noise

    Stereo Out Min: -105dB or Less
    Stereo Out Max: -94dB or Less
    Mono Out Min: -98dB or Less
    Mono Out Max: -95dB or Less

  • Inputs

    2 x XLR
    2 x Mono 1/4" (6.3mm) Phone Jacks
    4 x Stereo RCA Jacks
    1 x 1/4" (6.3mm) Stereo Pair
    1 x 1/4" (6.3mm) Sub-Input Stereo Pair
    2 x Mono 1/4" (6.3mm) Sub-Input Jacks

  • Input Level

    Ch. 1-2 Max: -30dB
    Ch. 3-6: -10dB
    Sub Input Max: +20dB

  • Input Impedance

    Ch. 1-2 Mic: 1 kOhm
    Ch. 1-2 Line: 10kOhms

    Ch. 3-6: 10kOhms
    Sub Input: 50kOhms

  • Outputs

    2 x 1/4" (6.3mm) Mono Out
    1 x 1/4" (6.3mm) Stereo Pair
    1 x RCA Stereo REC Out

  • Output Level

    Stereo Max: +20db
    Mono Max: +20dB
    Rec Max: +6dB

  • Output Impedance

    Stereo: 1kOhms
    Mono: 1kOhms
    Rec: 1kOhms

  • Controls

    6 x Input Level Controls
    3 x Output Level Controls
    2 x EQ Controls
    1 x Power On/Off Button
    1 x Mute Button
    18 x Output Assignment Switches

  • Dimensions (W x H x D)

    19 x 1.75 x 11.9" / 482.6 x 44.45 x 302.26mm

  • Weight

    8.4lbs / 3.81kg

About TOA Electronics Rack-Mountable 6 Channel Stereo Mixer

Let the TOA Electronics Rack-Mountable 6 Channel Stereo Mixer revolutionize your audio mixing experience. This professional-grade, high-quality mixer is designed with a rack-mountable feature, making it a perfect fit for compact setups in commercial systems. It boasts a versatile configuration with two monaural and four stereo inputs, alongside one stereo and two mono outputs, catering to a wide range of audio mixing needs.

This durable mixer is engineered for a variety of applications, from boardrooms and conference rooms to health clubs, restaurants, and background music scenarios. It's capable of controlling multiple audio sources simultaneously, providing a seamless audio experience whether you're managing stereo classical music in a dining room or handling paging and background music in a bustling restaurant.

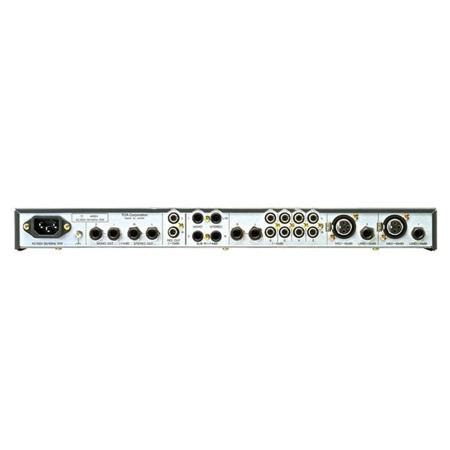

The M-243 mixer comes with balanced XLR microphone level or unbalanced 1/4" phone line level switchable monaural line inputs, and four unbalanced L/R stereo inputs with RCA-type jacks. Input 6 uniquely features both RCA type and 1/4" phone jacks connected in parallel, offering you more flexibility in your audio setup.

Each input is equipped with its own volume control and a set of three assignment switches, allowing you to assign the input to any combination of the three outputs. The two monaural inputs feature an automatic compressor to prevent clipping from excessive input signals, a high pass filter to eliminate unwanted low frequencies, and a -20dB pad in the mic input circuitry for high output or close-talked microphones.

The M-243 mixer also includes additional line level inputs: a L/R stereo sub-input and mono sub-inputs 1 and 2. These feed directly into the mixing buses and their associated outputs, providing a streamlined audio mixing process. The stereo sub-input is designed to feed a monaural signal to both the left and right output channels when connected to the left channel.

One standout feature of the M-243 mixer is its automatic muting function. This detects signal on either of the monaural inputs and mutes any of the stereo input signals assigned to the L/R stereo output, making it ideal for priority paging or automatic program selection.

The mixer also offers three sets of output mixing buses to feed the three sets of main outputs: L/R Stereo, Mono 1, and Mono 2. Each output has a separate volume control on the front panel, with the L/R Stereo output also featuring bass and treble shelving-type tone controls.

Other features include colored control knobs for different control functions, a clipping indicator, an internal ground lift switch to avoid ground loops, a security cover for the assignment switches, and a power switch with a power-on indicator. The M-243 occupies only one standard 19" EIA rack and includes removable rack mounting ears, making it a reliable and versatile choice for your professional audio needs.

TOA Electronics Rack-Mountable 6 Channel Stereo Mixer Features

  • Professional-grade, rack-mountable 6 channel stereo mixer for versatile audio mixing
  • Features two monaural and four stereo inputs, plus one stereo and two mono outputs
  • Equipped with automatic compressor, high pass filter, and -20dB pad for optimal sound quality
  • Includes automatic muting function for priority paging or automatic program selection
  • Three sets of output mixing buses with separate volume controls for each output
  • Compact design fits one standard 19" EIA rack, ideal for space-saving setups

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Achieve pristine sound quality with this low noise 6-channel stereo mixer for recording.
  • Versatile inputs: XLR, RCA, & 1/4" jacks on this recording mixer handle any audio source.
  • Sculpt your sound with responsive EQ controls, perfect for live sound and studio mixing.
  • Durable & rack-mountable design ensures this mixer withstands rigorous use, gig after gig.
  • USB interface enables seamless integration with your computer for recording and playback.
  • Customize your mix with assignment switches, routing audio to your exact specifications.

What's in the box:

  • TOA Electronics Rack Mounting Kit
  • TOA Electronics 5 Year Limited Warranty
