TOA Electronics Microphone Input Module with Compressor and Female XLR Connector
See all TOA Electronics items

TOA Electronics Microphone Input Module with Compressor and Female XLR Connector for 900 Series Amplifiers, 600 Ohms Impedance, 25Hz - 20kHz Frequency Response

SKU: TOM61F

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TOA Electronics M61F Specifications

  • Power Source

    24V DC

  • Current Consumption

    33mA

  • Input Sensitivity

    -60dB

  • Input Impedance

    600 Ohms, balanced

  • Frequency Response

    25Hz - 20kHz

  • Distortion

    0.05%

  • Noise Level

    -86 db

  • Gain

    32 - 52 dB

  • Phantom Power

    +22V DC

  • Tone Control

    100Hz: 0 to -10dB,10KHz: 0 to -10dB

  • Connector

    Female XLR Connector (XLR- 3-32 equivalent)

  • Dimensions (W x H xD)

    35 x 78 x 88mm / 1.37 x 3.07 x 3.46"

  • Weight

    110g / 3.88oz

About TOA Electronics M61F

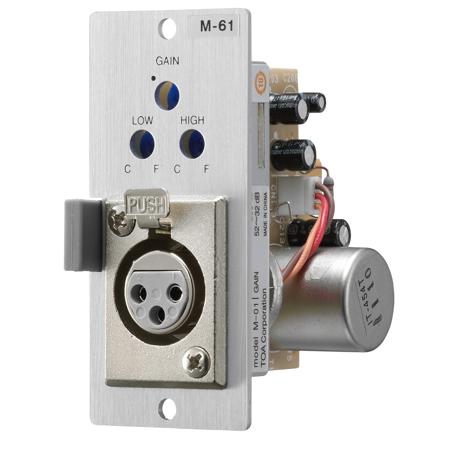

The TOA Electronics Microphone Input Module with Compressor and Female XLR Connector designed for 900 series amplifiers. The module accepts signals from balanced, low impedance microphones. The compressor function helps to prevent overload and distortion. Other features of the M-61F are high and low cut filters and phantom power. Inputs are connected to the module via the 3-pin XLR female connector.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TOA Electronics Microphone Input Module with Compressor and Female XLR Connector
  • TOA Electronics 5 Year Warranty
