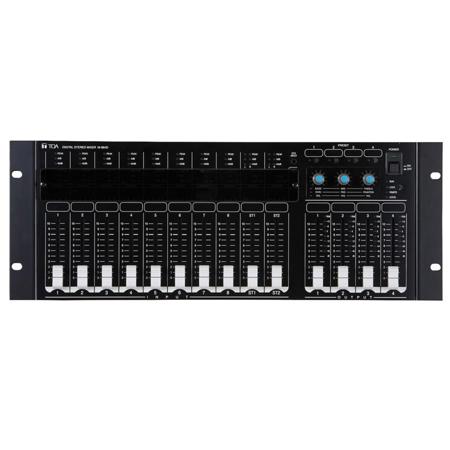

TOA Electronics M-864D 4U Rack-Mount Digital Stereo Mixer with ARC and FBS
TOA Electronics M-864D Video #1
TOA Electronics M-864D: Picture 1 thumbnail
See all TOA Electronics items
19% Off

TOA Electronics M-864D 4U Rack-Mount Digital Stereo Mixer with ARC and FBS

SKU: TOM864DCU MFR: M-864D CU
Be the first to review this itemAsk a Question
$3,684.00
$4,558.00
Save: $874 (19%)
OR
$307/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this digital mixer's high-resolution processing capabilities.
  • Enjoy flexible EQ control for precise audio shaping, perfect for live sound and recording.
  • Seamlessly integrate with your setup using the versatile USB interface for easy recording.
  • Experience ultra-low noise performance, ensuring clean and professional audio recordings.
  • Rely on the durable build for consistent performance in demanding live and studio environments.
  • Optimize your audio with multiple input channels, ideal for bands, conferences, and more.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TOA Electronics M-864D Specifications

  • Power Source

    100-120 V AC, 60Hz

  • Power Consumption

    30W

  • Frequency Response

    20Hz-20kHz, +/-1dB

  • Sampling Frequency

    48kHz

  • Dynamic Range

    100dB or more (IHF-A weighted)

  • Distortion

    0.03% or less, 1kHz, +4dB input/output, 20Hz-20kHz BPF

  • Crosstalk

    -80dB or less, 1kHz

  • Input 1

    Monaural input, 8 channels, removable terminal block (3P)
    Phantom power (+24 V DC, 10mA, ON/OFF switchable for each channel)
    Gain setting (settable for each channel)

    PAD ON: Gain min., +4dB (max. +24dB), 10kohms, electronically balanced
    Gain max., -14dB (max. +6dB), 10kohms, electronically-balanced

    PAD OFF Gain min., -10dB (max. +10dB), 7kohms, electronically balanced
    Gain max., -56dB (max. -36dB), 7kohms, electronically-balanced

  • Input 2

    Stereo Input (L, R), 7 channels (1-A, 1-B, 1-C, 2-A, 2-B, 2-C, front-mounted input)
    RCA jack (stereo mini jack provided on the front panel): -10dB (max. +10dB), 10kohms
    Trim gain for each individual channel: -infinity to 0dB (except front-mounted input)

  • Output

    Output, 4 channels, +4dB(2) (max. +24dB(2)), applicable load 600 ohms or more, electronically-balanced, removable terminal block (3P)
    REC OUT (L, R): -10dB(max. +10dB), applicable load 1kohm or more, RCA jack
    Gain is adjustable

  • AD Converter

    24 bits

  • DA Converter

    24 bits

  • Preset Memory

    16

  • Automatic Resonance Control Function

    Automatic EQ curve creation by ARC, 4 channels (each output channel), settable independently on each channel, ARC measuring start switch x1, ON/OFF LED x1

  • Feedback Suppressor Function

    Feedback suppressor filter creation, 8 channels (each monaural input channel), settable independently on each channel, ON/OFF switch x8, ON/OFF LED x8

  • Filter

    8 channels (each monaural input channel), settable independently on each channel, high-pass filter: 20Hz to 20kHz

  • Tone Controller

    BASS, Low-shelving filter: 20 - 500Hz, +/-15dB
    MID, parametric equalizer: 20Hz - 20kHz, +/-15dB, Q: 0.267 - 69.249
    TREABLE, high-shelving filter: 6 - 20 kHz, +/-15dB
    10 channels (each monaural input channel, each stereo mixing input channel), settable independently on each channel

  • Equalizer

    Parametric equalizer: 20Hz - 20kHz, +/-15dB, Q: 0.267 - 69.249
    4 channels (each output channel)

  • Matrix

    12x4

  • Crosspoint Gain

    -infinity to 0dB in 1dB steps

  • Automatic Mute Function

    Stereo input section matrix, independent control

  • Function

    Input PAD (-16dB) control, low cut (cutoff frequency: 100Hz) control, analog output attenuator (-6dB, -12dB, -18dB, -24dB, -36dB, -42dB) control, front panel operation lock function, stereo summing function, function setting panel (3 rotary encoders)

  • Input Level Indicator

    3-point LED, 12 channels (each monaural input channel, stereo 1L, 1R, 2L, 2R)

  • Output Level Indicator

    8-point LED, 4 channels (each output channel)

  • Auto Resonance Control (ARC) Measurement

    ARC measuring start switch x1, ON/OFF LED x1

  • Feedback Suppressor (FBS) Function

    ON/OFF switch x8, ON/OFF LED x8

  • Low Cut

    ON/OFF switch x8, ON/OFF LED x8

  • Stereo Summing

    ON/OFF switch x2, ON/OFF LED x2

  • Tone Control

    BASS, MID, TREBLE/Settable on the function setting panel, 10 channels (each monaural input channel, stereo 1L, 1R, 2L, 2R)

  • Monaural Input, Analog Setting

    Gain setting, PAD ON/OFF, Phantom power ON/OFF
    Settable on the function setting panel, 8 channels (each monaural input channel)

  • Stereo Input, Analog Setting

    Trim setting
    Settable on the function setting panel, 6 channels (1-A, 1-B, 1-C), (2-A, 2-B, 2-C)

  • REC OUT, Gain Setting

    Gain setting
    Settable on the function setting panel, 2 channels (REC OUT L, REC OUT R)

  • Preset Memory Switching

    Preset selection switch x4, ON/OFF LED x4

  • Front Panel Operation Lock

    Operation lock switch x1, ON/OFF LED x1

  • Operation Status Indication

    Operation status LED x3

  • Function Setting Panel

    Rotary encoder x3, 10-point position indication LED x3, Function mode LED x3

  • Analog Volume Fader

    Input volume fader x10, Output volume fader x4, 2 faders linkable with supplied gang bar

  • Contact Input

    8 channels, open voltage:24 V DC, short-circuit current: 5mA, Removable terminal block (10P)

  • Contact Output

    8 channels, no-voltage make contact, contact capacity: 24 V DC/100mA, Removable terminal block (10P)

  • Remote Control Panel

    2 channels, Maximum number of units: 8 units per channel
    24 V DC input x2, termination ON/OFF switch x1, removable terminal block (10P)
    Maximum total cable length (star wiring): 800m (total for 2 channels)
    Maximum cable length (daisy chain wiring): 400 m per channel
    Type of cable: Shielded CPEV cable ( a pair of data cable and a pair of power supply cable) or shielded Cat 5 twisted pair cable for LAN (CAT5-STP)

  • Network

    Network I/F: 1 channel of 10BASE-T/100BASE-TX (auto-negotiation) RJ45 connector, connection via switching hub
    Network protocol: TCP/IP
    Connection cable: Shielded Cat. 5 or higher twisted pair cable for LAN (Cat. 5-STP or better)
    Maximum cable length: 100m (between M-864D and switching hub)

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    90% RH (no condensation)

  • Dimensions (W x H x D)

    19 x 6.97 x 6.19" / 48.26 x 17.70 x 15.72cm

  • Weight

    11.24lbs / 5.10kg

About TOA Electronics M-864D

How does the M-864D 4U Rack-Mount Digital Stereo Mixer with ARC and FBS stand out in the world of professional audio equipment This high-performance mixer, designed to be rack-mountable in a 4U space, offers a robust 22 input channels. This includes 8 monaural input channels and 7 stereo input channels, providing ample connectivity for a variety of audio sources.

The M-864D also boasts 6 output channels, comprising 4 monaural output channels and 1 stereo recording output channel, along with 4 bus channels. This ensures versatile routing and output options to meet the demands of complex audio setups.

What sets this digital stereo mixer apart is its advanced digital signal processing functions. The Automatic Resonance Control (ARC) function measures the acoustic characteristics inherent in architectural space and automatically creates a filter curve to enhance sound clarity. The Feedback Suppressor (FBS) function helps to eliminate unwanted noise, while the Automatic Stereo Input Mute function (AUTO MUTE or Ducker) and Equalizer further refine the audio output.

The M-864D is designed for intuitive operation, featuring various function setting buttons and 14 analog volume faders. This allows for hands-on control without the need for a PC. However, for those who prefer digital control, the mixer can also be operated by connecting to a PC or an optional remote control panel.

In summary, the M-864D 4U Rack-Mount Digital Stereo Mixer with ARC and FBS is a comprehensive solution for professional audio mixing, offering advanced features and flexible control options in a compact, rack-mountable design.

TOA Electronics M-864D Features

  • High-performance 4U rack-mountable digital stereo mixer with 22 input channels
  • Features 8 monaural & 7 stereo input channels, plus 6 output channels for versatile audio routing
  • Advanced digital signal processing functions including Automatic Resonance Control (ARC) and Feedback Suppressor (FBS)
  • Equipped with Automatic Stereo Input Mute function (AUTO MUTE or Ducker) and Equalizer for refined audio output
  • Offers hands-on control with various function buttons and 14 analog volume faders
  • Can be operated via PC or optional remote control panel for digital control flexibility

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Achieve pristine sound quality with this digital mixer's high-resolution processing capabilities.
  • Enjoy flexible EQ control for precise audio shaping, perfect for live sound and recording.
  • Seamlessly integrate with your setup using the versatile USB interface for easy recording.
  • Experience ultra-low noise performance, ensuring clean and professional audio recordings.
  • Rely on the durable build for consistent performance in demanding live and studio environments.
  • Optimize your audio with multiple input channels, ideal for bands, conferences, and more.

What's in the box:

  • TOA Electronics M-864D Rack-Mount Digital Stereo Mixer
  • Power Supply Cord (2m / 6.56')
  • 12x Removable Terminal Plug (3P)
  • 2x Large Type Removable Terminal Plug (10P)
  • Small Type Removable Terminal Plug (10P)
  • 4x Fader Gang Bar
  • Protective Cover
  • CD-ROM (Containing Setup Software)
  • TOA Electronics 5 Year Limited Warranty
