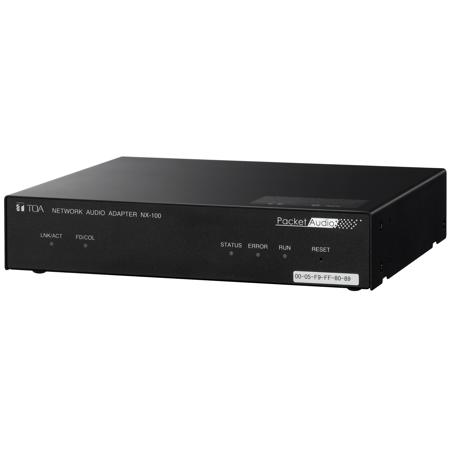

TOA Electronics NX-100 Network Audio Adapter

SKU: TONX100PS MFR: NX100PS
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with this network audio adapter for clear sound.
  • Enjoy low latency streaming for real-time audio transmission using this device.
  • Connect seamlessly with versatile input/output options via Phoenix Blocks.
  • This adapter offers broad software compatibility, integrating easily with systems.
  • Use the NX-100 as a digital distribution amp for efficient audio routing.
  • Get reliable Ethernet connectivity for stable network audio streaming.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics NX-100 Specifications

  • Power Source

    24V DC (plug-in screw connector) or
    AC adapter AD-246 (optional) or the equivalent

  • Current Consumption

    200mA (DC operation)

  • Audio Input

    1 channel (transformer-isolated), -58dB to 0dB,
    Balanced (MIC/LINE changeable, volume adjustable with volume control),
    2k Ohm, plug-in screw connector

  • Audio Output

    1 channel (transformer-isolated), balanced, 600 Ohm, plug-in screw connector

  • Frequency Response

    50 - 14,000Hz (when sampling frequency is 32kHz)

  • Distortion

    Under 0.3% (1kHz, when sampling frequency is 32kHz)

  • Control Input

    8 channels, no-voltage make contact input, open voltage: 12V DC,
    Short-Circuit Current: 10mA, plug-in screw connector

  • Control Output

    8 channels, open collector output, withstand voltage: 30V DC,
    Control Current: 50mA max., plug-in screw connector

  • Network I/F

    10BASE-T/100BASE-TX, Auto-Negotiation

  • Network Protocol

    TCP/IP, UDP, HTTP, RTP

  • Audio packet Transmission System

    Unicast (up to 4 simultaneous transmissions)
    Multicast (up to 64 simultaneous transmissions)

  • Operating Temperature

    0 Degree C to +50 Degree C (32 Degree F to 122 Degree F) (0 Degree C to +40 Degree C when AC adapter is in use)

  • Operating Humidity

    Under 90% RH (no dew condensation should be produced)

  • Finish

    Steel plate, black, 30% gloss

  • Dimensions (W x H x D)

    8.3 x 1.8 x 7.4" (210 x 46 x 188mm)

  • Weight

    2.65 oz (1.2kg)

About TOA Electronics NX-100

If you're seeking a reliable and high-quality solution for transmitting audio signals over IP networks, the NX-100 Network Audio Adapter by Toa Electronics is an excellent choice. This innovative device is capable of distributing digital audio signals across an Ethernet network using RJ-45 connectors, ensuring you experience high-resolution audio without any loss of quality.

Designed with user-friendly features, the NX-100 Network Audio Adapter can transmit not only superior audio signals but also control data such as serial data in real time. This makes it an ideal choice for those who need to send audio signals to remote locations, leveraging the power of the Internet to keep running costs significantly lower than traditional dedicated lines.

For added convenience and versatility, this durable network audio adapter can be easily mounted in an EIA Standard rack (1 unit size) with the use of an optional rack-mounting bracket. Whether you're looking to enhance the audio experience in your home or office, the NX-100 Network Audio Adapter offers a robust and efficient solution for your audio distribution needs.

TOA Electronics NX-100 Features

  • If there is no network delay, audio signals have only a minimal millisecond delay
  • Control data including contact and serial data can also be transmitted along with the audio signals
  • Two-way audio signal transmission is possible with a single NX-100 unit as every unit is equipped with an audio input and output
  • The multicast-capable NX-100 allows simultaneous transmission of audio signals to be made to multiple locations depending on transmission method: Unicast - up to 4 locations, Multicast - up to 64 locations
  • No audio signal degradation or loss, even when transmitting over crowded networks such as the internet
  • Greater data reliability using IP networks with the protocol's ability to prevent data problems during transmission
  • The NX-100's contact input can initiate and terminate audio transmissions without having to use dedicated control equipment such as a PC
  • Hardware use ensures operational reliability over only software-driven applications
  • Using IP to transmit audio signals over the internet allows low cost operation rather than dedicated lines
  • The NX-100 is equipped with a DC input to allow operation on AC as well as DC
  • Software-driven operational menus enhance ease of use

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Experience pristine audio quality with this network audio adapter for clear sound.
  • Enjoy low latency streaming for real-time audio transmission using this device.
  • Connect seamlessly with versatile input/output options via Phoenix Blocks.
  • This adapter offers broad software compatibility, integrating easily with systems.
  • Use the NX-100 as a digital distribution amp for efficient audio routing.
  • Get reliable Ethernet connectivity for stable network audio streaming.

What's in the box:

  • 1x NX-100 Network Audio Adapter
  • 1x CD (PC Setting/Operation Software Programme)
  • 1x Power Supply Screw Connector Plug
  • 2x Audio I/O Screw Connector Plug
  • 2x Control I/O Screw Connector Plug
  • 1x RS-232C Connector Cover
  • 8x Bracket Mounting Screw
  • TOA Electronics 5 Year Limited Warranty
