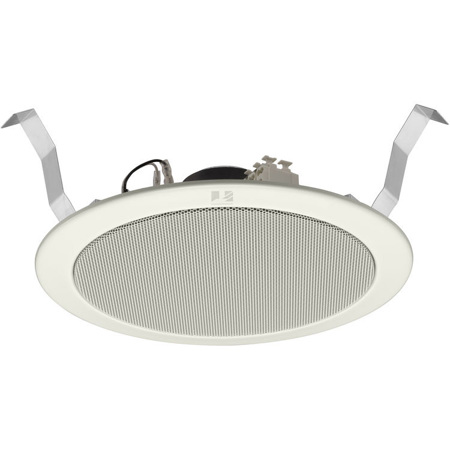

TOA Electronics PC-2369 6" Ceiling Mount Speaker, Single, Off-White
See all TOA Electronics items

TOA Electronics PC-2369 6" Ceiling Mount Speaker, 45Hz-20kHz, Single, Off-White

SKU: TOPC2369
Be the first to review this item

This item is no longer available.

Recommended Alternatives

TOA Electronics : Picture 1 regular
TOA Electronics 60W Co-axial Ceiling Speaker, Single, Black
$255.00$206.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TOA Electronics PC-2369 Specifications

  • Rated Input

    6W (100V line), 3W (70V line)

  • Rated Impedance

    100 V line: 1.7kOhms (6W), 3.3kOhms (3W), 6.7kOhms (1.5W), 13kOhms (0.8W)
    70 V line: 1.7kOhms (3W), 3.3kOhms (1.5W), 6.7kOhms (0.8W), 13kOhms (0.4W)

  • Sensitivity

    93 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)

  • Frequency Response

    45 - 20,000 Hz (peak -20 dB)

  • Speaker Component

    6" / 152.40mm double cone-type

  • Dimensions for Fixing Hole

    Mounting hole: dia. 200+/-3 mm (dia. 7.87"+/-0.12")
    Ceiling thickness: 5 to 25mm / 0.20 to 0.98"

  • Speaker Mounting Method

    Spring clamp

  • Applicable Cable

    600V vinyl-insulated cable (IV wire or HIV wire)
    Solid copper wire: dia. 0.8 - 1.6 mm (equivalent to AWG 20 - 14)
    7-core twisted copper wire: 0.75 - 1.25 mm2 (equivalent to AWG 18 - 16)

  • Connection

    Push-in connector (bridging terminal-2 branch type

  • Finish

    Baffle: Steel plate, off-white (RAL 9010 or equivalent color), paint
    Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint

  • Dimensions (Dia. x D)

    230 x 79mm / 9.06 x 3.11"

About TOA Electronics PC-2369

Integrated with a speaker unit and panel, the PC-2369 Ceiling Mount Speaker is of all metallic construction and ideal for use in a voice alarm system. It feature spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connections easy and allows bridge wiring.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TOA Electronics PC-2369 6 " Ceiling Mount Speaker
  • Paper Pattern
  • TOA Electronics 5 Year Warranty
