19% Off

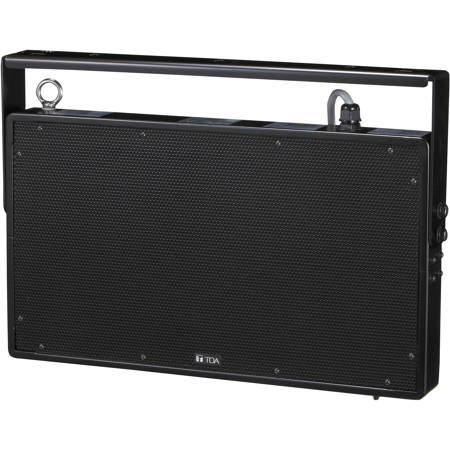

TOA Electronics 30W Plane Wave Compact Double-Sided Radiation Speaker, 300 to 17,500 Hz Frequency Response, 86dB Sensitivity, 2 kOhms at 5W Impedance, Single, Black

SKU: TOPW1230DB MFR: PW1230DB
Earn VIP Reward Points

Key Features

  • Experience exceptional audio clarity with this TOA PA speaker's wide frequency response.
  • Achieve optimal sound projection using the adjustable beam tilting feature of this speaker.
  • This durable PA speaker is IPX4 water-resistant, perfect for indoor and covered outdoor use.
  • Enjoy flexible installation with the included mounting bracket for easy PA speaker placement.
  • This compact PA speaker system delivers powerful 30W output for clear sound in any venue.
  • Easily connect this PA speaker to your existing system with multiple impedance options.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics 30W Plane Wave Double-Sided Radiation Speaker, Single, Black Specifications

  • Type of Radiation

    Double-sided radiation

  • Rated Input

    30W

  • Rated Impedance

    High impedance: 100 V line: 330 Ohms (30 W), 670 Ohms (15 W), 1 kOhms (10 W), 2 kOhms (5 W)
    High impedance: 70 V line: 170 Ohms (30 W), 330 Ohms (15 W), 670 Ohms (7.5 W ), 1 kOhms (5 W), 2 kOhms (2.5 W)

  • Sensitivity

    86 dB (1 W, 1 m equivalent measured at 4 m, 1 k - 10 kHz)
    86 dB(1 W measured at 1 m, 1 k - 10 kHz) (Beam tilting: FLAT, High pass filter: OFF)

  • Frequency Response

    300 Hz - 17.5 kHz (Beam tilting: FLAT, High pass filter: OFF)

  • Directivity Angle

    Horizontal: 38deg. (2 kHz, 1/3 octave band), Vertical: 75deg. (2 kHz, 1/3 octave band)

  • Speaker Unit

    Plane wave unit: 152 x 214 mm / 5.98" x 8.43" x 2 pcs.

  • Setting Switch

    Beam tilting (tilts radiation axis 5deg. downward): FLAT/DOWNWARD
    High pass filter (450 Hz, -12 dB/oct): OFF/ON

  • Speaker Cord

    dia. 9mm / 0.35", 6-core cabtyre cable, 2m / 6.56'

  • Water Protection

    IPX4

  • Operating Temperature

    -10 to +50 deg. C / 14 to 122 deg. F

  • Finish

    Enclosure, Punched net and Mounting bracket: Stainless, semi-gloss, paint

  • Dimensions (W x H x D)

    20.63 x 13.98 x 2.36" / 524 x 355 x 60mm (including mounting bracket)

  • Weight

    16.09lbs / 7.3kg (including mounting bracket)

About TOA Electronics 30W Plane Wave Double-Sided Radiation Speaker, Single, Black

Just imagine the power of sound precision with the TOA Electronics 30W Plane Wave Compact Double-Sided Radiation Speaker in sleek black. This advanced audio device is engineered with plane wave units, a feature that enables it to produce a narrow directivity pattern by radiating plane wave sound. This unique capability allows the speaker to focus sound output towards a specific target area, making it an ideal choice for environments that require precise sound delivery.

With a frequency response ranging from 300 to 17,500 Hz, this compact speaker ensures a broad spectrum of sound, capturing both low and high frequencies with clarity. Its 86dB sensitivity further enhances its performance, ensuring that the sound produced is loud and clear, even in spaces with long reverberation times like museums and art galleries.

The speaker's 2 kOhms at 5W impedance guarantees efficient power usage, ensuring that the speaker delivers high-quality sound without consuming excessive energy. This single, double-sided radiation speaker is not just a sound device, but a testament to TOA Electronics' commitment to providing superior audio solutions.

Whether you're looking to enhance the audio experience in a public space like a station platform or an escalator area, or you're seeking to improve the sound quality in a space with high reverberation times, the TOA Electronics 30W Plane Wave Compact Double-Sided Radiation Speaker is designed to meet your needs. Its compact design and powerful performance make it a standout choice in the world of audio equipment.

TOA Electronics 30W Plane Wave Double-Sided Radiation Speaker, Single, Black Features

  • Sound dispersion range is narrow in both horizontal and vertical directions, enabling sound output to be delivered toward a limited target area
  • Less susceptible to the influence of sound reflections from the ceiling and floor, allowing clear sound to be delivered even in spaces with poor acoustic conditions such as long reverberation time
  • A built-in beam tilting function for tilting sound radiation direction about 5deg. downward from the horizontal
  • A built-in high pass filter for cutting low frequencies
  • Stainless steel-made metal parts of the plane wave unit and the speaker enclosure
  • The performance of the unit is not harmfully affected even if water is splashed upon the unit from every direction

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience exceptional audio clarity with this TOA PA speaker's wide frequency response.
  • Achieve optimal sound projection using the adjustable beam tilting feature of this speaker.
  • This durable PA speaker is IPX4 water-resistant, perfect for indoor and covered outdoor use.
  • Enjoy flexible installation with the included mounting bracket for easy PA speaker placement.
  • This compact PA speaker system delivers powerful 30W output for clear sound in any venue.
  • Easily connect this PA speaker to your existing system with multiple impedance options.

What's in the box:

  • TOA Electronics 30W Plane Wave Compact Double-Sided Radiation Speaker
  • TOA Electronics 5 Year Limited Warranty
