19% Off

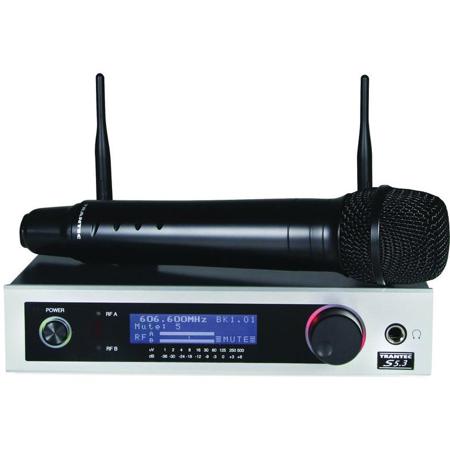

TOA Electronics Trantec S5.3 Series 12-Channel UHF Wireless Handheld Condenser Microphone and True Diversity Tuner, H2: 576-606MHz Frequency Band

SKU: TOS53HCH2USQ MFR: S5.3-HC-H2USQ
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this handheld wireless microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range, ideal for presentations and stage use.
  • Long-lasting battery life ensures your wireless microphone is ready for extended events and conferences.
  • Easy to set up and use, this wireless microphone system is great for both beginners and professionals.
  • Durable construction ensures this handheld microphone withstands the rigors of frequent use and travel.
  • Exceptional sound quality and reliable performance make this wireless microphone a valuable investment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics Trantec S5.3 12-Ch UHF Wireless Condenser Mic & Tuner, H2 Band Specifications

  • Frequency Range

    H2: 576-606MHz

  • Channel Selectable

    9 banks, 12 frequencies max/bank

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Microphone: Microphone Element

    Electret Condenser microphone unit: Cardioid

  • Microphone: Modulation

    Frequency modulation

  • Microphone: RF Carrier Power

    50 mW or less

  • Microphone: Tone Frequency

    32.768 kHz

  • Microphone: Modulating System

    PLL synthesized

  • Microphone: Maximum Input Level

    142 dB SPL (microphone sensitivity: Gain "0")

  • Microphone: Maximum Deviation

    +/-40 kHz

  • Microphone: Audio Frequency Response

    90Hz - 20 kHz

  • Microphone: Dynamic Range

    110 dB or more (with S5.3-RX)

  • Microphone: Battery

    LR6 (AA)

  • Microphone: Battery Life

    10 Hours (alkaline)

  • Microphone: Indicator

    LCD display, Power lamp

  • Microphone: Antenna

    Built-in type

  • Microphone: Function

    Mute Switch, Infra-red link port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-2; 12 dB)

  • Tuner: Power Source

    230V AC, 50 Hz (supplied AC adapter must be used)

  • Tuner: Power Consumption

    300 mA (13V DC)

  • Tuner: Receiving System

    Double Super-heterodyne

  • Tuner: Diversity System

    Space diversity (true diversity)

  • Tuner: Audio Output

    LINE: -22 dB/MIC: -62 dB
    LINE/MIC selectable, 600 Ohms, balanced, XLR-3-32 type connector
    Headphone: max. 100mW 16 Ohms, unbalanced, phone jack -28 dB, 600 Ohms, unbalanced, phone jack

  • Tuner: Antenna Input

    50 Ohms, BNC

  • Tuner: Antenna Phantom Power

    9V DC, 30 mA (max) (Available to turn off phantom power)

  • Tuner: Receiving Sensitivity

    0 dB MuV or less (12 dB SINAD)

  • Tuner: Squelch Sensitivity

    6-36 dB MuV variable

  • Tuner: Squelch System

    Using together of noise SQ, carrier SQ and tone SQ

  • Tuner: Tone Frequency

    32.768 kHz

  • Tuner: Indicator

    LCD, Power lamp, Mute lamp, ANT A/B lamp

  • Tuner: Signal to Noise Ratio

    110 dB or more (A-weight)

  • Tuner: Harmonic Distortion

    1% or less (typical)

  • Tuner: Frequency Response

    50Hz to 20 kHz, +/-3 dB

  • Tuner: Function

    Battery indicator (7 steps), Headphone output, Infra-red link port, Channel scan, Monitoring software with USB connectivity

  • Tuner: Finish

    Chassis: Steal, dark gray, Painting
    Front Panel: Anodized aluminum, silver

  • Dimensions

    Tuner (W x H x D): 8.27 x 1.81 x 8.27" / 210.06 x 45.97 x 210.06mm (excluding antenna)
    Microphone (Dia. x L): 1.97 x 9.17" / 50.04 x 232.92mm

  • Weight

    Tuner: 2.87lbs / 1.30kg
    Microphone: 0.66lbs / 0.30kg (with battery)

About TOA Electronics Trantec S5.3 12-Ch UHF Wireless Condenser Mic & Tuner, H2 Band

With the Trantec S5.3 Series 12-Channel UHF Wireless Handheld Condenser Microphone and True Diversity Tuner, you can experience professional-grade audio performance. This advanced system, operating within the 576-606MHz frequency band, is designed to deliver high-quality, reliable sound for a variety of professional applications, including live performances, broadcasting, and recording studios.

The package includes a durable handheld wireless microphone and a true diversity tuner, both featuring user-friendly operability. The easy-to-read LCD display on both components ensures effortless navigation and control. The system's infrared communication capability allows for seamless system settings adjustments, enhancing its user-friendly nature.

Moreover, the system comes with a PC software that enables you to monitor the system's status conveniently, ensuring optimal performance at all times. The wireless microphone system boasts an impressive range of up to 250 feet outdoors and up to 150 feet indoors, offering flexibility and freedom of movement during performances.

Crafted by TOA Electronics, a reputable brand known for its high-quality audio equipment, the Trantec S5.3 Series 12-Channel UHF Wireless Handheld Condenser Microphone and True Diversity Tuner is a testament to the brand's commitment to delivering reliable and advanced audio solutions. Whether you're a professional artist, broadcaster, or audio engineer, this wireless microphone system is designed to meet your high standards and demanding audio requirements.

TOA Electronics Trantec S5.3 12-Ch UHF Wireless Condenser Mic & Tuner, H2 Band Features

  • Professional-grade UHF wireless handheld condenser microphone for live, broadcast, and studio applications
  • True diversity tuner with user-friendly LCD display for effortless system control and navigation
  • 576-606MHz frequency band operation with up to 250 feet outdoor and 150 feet indoor range
  • Infrared communication for easy system settings adjustments and maintenance
  • Includes PC software for real-time system status monitoring
  • Durable and reliable design by TOA Electronics, a leader in high-quality audio equipment

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this handheld wireless microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range, ideal for presentations and stage use.
  • Long-lasting battery life ensures your wireless microphone is ready for extended events and conferences.
  • Easy to set up and use, this wireless microphone system is great for both beginners and professionals.
  • Durable construction ensures this handheld microphone withstands the rigors of frequent use and travel.
  • Exceptional sound quality and reliable performance make this wireless microphone a valuable investment.

What's in the box:

  • TOA Electronics Trantec S5.3 Series 12-Channel UHF Wireless Handheld Condenser Microphone
  • True Diversity Tuner
  • CD (PC Monitoring Software)
  • 2x BNC Cable
  • Microphone Holder W3/8 " (with Stand Adapter)
  • 2x Wireless Antenna
  • 6x Color Ring (6 Colors)
  • TOA Electronics 5 Year Limited Warranty
