TOA Electronics Trantec S5.3 12-Ch UHF Wireless Dynamic Mic & Tuner, H2 Band
See all TOA Electronics items
19% Off

TOA Electronics Trantec S5.3 Series 12-Channel UHF Wireless Handheld Dynamic Microphone and True Diversity Tuner, H2: 576-606MHz Frequency Band

SKU: TOS53HDH2USQ MFR: S5.3-HD-H2USQ
Be the first to review this itemAsk a Question
$920.00
$1,139.00
Save: $219 (19%)
OR
$77/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this handheld wireless microphone system.
  • Enjoy freedom with a wide wireless range, perfect for dynamic stage performances.
  • Long-lasting battery life ensures reliable use during extended events or presentations.
  • Easy to use with intuitive controls, making setup a breeze for any user level.
  • Durable design withstands the rigors of frequent use, ensuring long-term reliability.
  • Exceptional value for a professional-grade wireless microphone, offering top performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TOA Electronics Trantec S5.3 12-Ch UHF Wireless Dynamic Mic & Tuner, H2 Band Specifications

  • Frequency Range

    H2: 576-606 MHz

  • Channel Selectable

    9 banks, 12 frequencies max/bank

  • Operating Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Microphone Element

    Dynamic microphone unit: Hyper Cardioid

  • Microphone: Modulation

    Frequency modulation

  • Microphone: RF Carrier Power

    50 mW or less

  • Microphone: Tone Frequency

    32.768 kHz

  • Microphone: Modulating System

    PLL synthesized

  • Microphone: Maximum Input Level

    146 dB SPL (microphone sensitivity: Gain"0")

  • Microphone: Maximum Deviation

    +/-40 kHz

  • Microphone: Audio Frequency Response

    60Hz - 20 kHz

  • Microphone: Dynamic Range

    110 dB or more (with S5.3-RX)

  • Microphone: Battery

    LR6 (AA)

  • Microphone: Indicator

    LCD display, Power lamp

  • Microphone: Antenna

    Built-in type

  • Microphone: Function

    Mute Switch, Infra-red link port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-2; 12 dB)

  • Tuner: Power Source

    230V AC, 50 Hz (supplied AC adapter must be used)

  • Tuner: Power Consumption

    300 mA (13V DC)

  • Tuner: Receiving System

    Double super-heterodyne

  • Tuner: Diversity System

    Space diversity (true diversity)

  • Tuner: Audio Output

    LINE: -22 dB/MIC: -62 dB
    LINE/MIC selectable, 600 Ohms, balanced, XLR-3-32 type connector
    Headphone: max. 100mW 16 Ohms, unbalanced, phone jack -28 dB, 600 Ohms, unbalanced, phone jack

  • Tuner: Antenna Input

    50 Ohms, BNC

  • Tuner: Antenna Phantom Power

    9V DC, 30 mA (max) (Available to turn off phantom power)

  • Tuner: Receiving Sensitivity

    0 dB MuV or less (12 dB SINAD)

  • Tuner: Squelch Sensitivity

    6-36 dB MuV variable

  • Tuner: Squelch System

    Using together of noise SQ, carrier SQ and tone SQ

  • Tuner: Tone Frequency

    32.768 kHz

  • Tuner: Indicator

    LCD, Power lamp, Mute lamp, ANT A/B lamp

  • Tuner: Signal to Noise Ratio

    110 dB or more (A-weight)

  • Tuner: Harmonic Distortion

    1% or less (typical)

  • Tuner: Frequency Response

    50Hz to 20 kHz, +/-3 dB

  • Tuner: Function

    Battery indicator (7 steps), Headphone output, Infra-red link port, Channel scan, Monitoring software with USB connectivity

  • Tuner: Finish

    Chassis: Steal, dark gray, Painting
    Front Panel: Anodized aluminum, silver

  • Dimensions

    Tuner (W x H x D): 8.27 x 1.81 x 8.27" (excluding antenna)
    Microphone (Dia. x L): 1.97 x 9.76" / 50.04 x 247.90mm

  • Weight

    Tuner: 2.87lbs / 1.30kg
    Microphone: 0.84lbs / 0.38kg (with battery)

About TOA Electronics Trantec S5.3 12-Ch UHF Wireless Dynamic Mic & Tuner, H2 Band

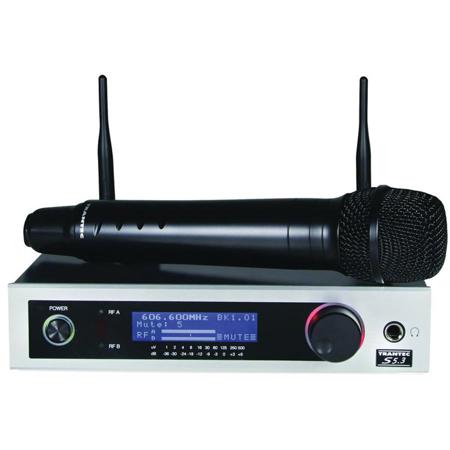

The S5.3-HD includes a handheld wireless microphone and a true diversity tuner. Both of them feature user-friendly operability and employ an easy-to-read LCD display. Also, it is possible to perform the system settings through infrared communications and monitor the system status using the supplied PC software.

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior sound quality with this handheld wireless microphone system.
  • Enjoy freedom with a wide wireless range, perfect for dynamic stage performances.
  • Long-lasting battery life ensures reliable use during extended events or presentations.
  • Easy to use with intuitive controls, making setup a breeze for any user level.
  • Durable design withstands the rigors of frequent use, ensuring long-term reliability.
  • Exceptional value for a professional-grade wireless microphone, offering top performance.

What's in the box:

  • TOA Electronics Trantec S5.3 Series 12-Channel UHF Wireless Handheld Dynamic Microphone
  • True Diversity Tuner
  • CD (PC Monitoring Software)
  • 2x BNC Cable
  • AC Adapter
  • Microphone Holder W3/8 " (with Stand Adapter)
  • 2x Wireless Antenna
  • 6x Color Ring (6 Colors)
  • TOA Electronics 5 Year Limited Warranty
