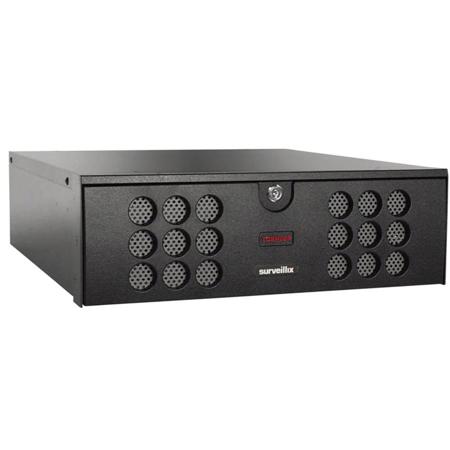

Toshiba Surveillix DVSE 32 Channel 4U Hybrid Digital Video Recorder, 16TB HDD, 480 PPS Recording/Live Viewing Rate, H.264, MPEG-4, MJPEG

SKU: TOSE3248016T

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Toshiba Surveillix DVSE DVR Specifications

  • Channel

    32

  • Total Frame Rate

    480

  • Video Format

    NTSC/PAL

  • Analog Video Inputs

    32

  • IP Video Inputs

    32

  • Video Output

    1x HDMI, 1x DVI, 1x RCA (spot monitor)

  • Recording Rate (PPS)

    480 at 360x240
    240 at 720x240
    120 at 720x480

  • Live Viewing Rate (PPS)

    480

  • IP Video Throughput

    200 Mbps (Non-RAID), 400 Mbps (RAID5)

  • Audio Input

    16

  • Sensor/Alarm Inputs

    16

  • Alarm Outputs

    16

  • PTZ Controls Protocols

    Internal RS-232/485

  • Image Compression

    H.264, MPEG4, MJPEG

  • Storage Capacity

    16TB

  • LAN

    Dual 100/1000 Gigabit Ethernet

  • Critical Recording Archive

    DVD/RW

  • Password Control

    User defined access level

  • Power Interruption Recovery

    Automatic restart and resume

  • Remote Connection

    TCP/IP, UDP, Internet, LAN, WAN

  • Power Input

    AC 100 to 240 VAC (50/60 Hz)

  • CPU

    Intel Core i3 (480 PPS)

  • RAM

    4GB

  • Operating System

    Windows 7 Embedded

  • Rackmount Size

    4U

  • Dimensions (H x W x D)

    7.00 x 17.30 x 21.75" / 177.80 x 439.42 x 552.45mm

  • Weight

    47-52lbs/21.32-23.59kg

About Toshiba Surveillix DVSE DVR

With available Internal RAID 5 capabilities and field replaceable Hard Disk Drives, the DVSE Series is designed for maximum reliability. The DVSE Series comes pre-configured to allow HDD storage expansion in the field without it needing to be returned to Toshiba for upgrading. Capable of recording at speeds of up to 480 FPS, the DVSE offers unmatched versatility. Intuitive setup menus, easy to configure recording schedules and 6 intelligent search options make the xVSE series of DVRs a hassle free solution for your recording needs. XVSE systems come equipped with up to 12 Terabytes internal storage, recording speeds up to 480 FPS, looping video outputs and a DVD+RW standard.

Toshiba Surveillix DVSE DVR Features

  • Full hybrid recording channels standard
  • Supports H.264, MPEG-4, MJPEG compression codecs
  • Available in 8, 16 and 32 channel configurations
  • 240/480 PPS recording (up to 30 PPS per camera)
  • Up to 16 TB internal RAID 5 available
  • Removable HDD bays for quick HDD replacement and field upgrades
  • Dual monitor support on all systems
  • Multi-Site SCS software: The SCS software remotely manages 100+ DVRs allowing you to configure, view, search, export, remotely upgrade, and monitor alarms
  • HDMI, display port, DVI-D, VGA, RCA
  • Supports over 100+ IP camera models
  • ONVIF compliant interface for maximum compatibility
  • Microsoft Windows 7 Embedded

Key Features

  • Microsoft Windows 7 Embedded

What's in the box:

  • Toshiba Surveillix DVSE 32 Channel 4U Hybrid Digital Video Recorder
  • Toshiba 3 Year Warranty (1 Year Advanced Replacement)
