19% Off

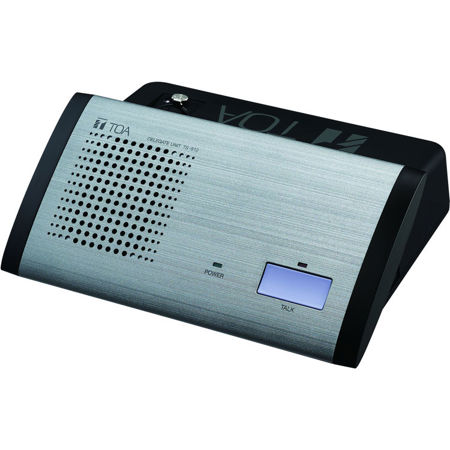

TOA Electronics TS-812 Wired Delegate Station for TS-910 Central Conferencing Unit

SKU: TOTS812 MFR: TS812
Earn VIP Reward Points

Key Features

  • Enhance your conferencing with the TOA TS-812 delegate station for clear audio.
  • Experience seamless connectivity with the TS-812, designed for the TS-910 system.
  • Enjoy adjustable headphone & monitor volume for personalized audio during meetings.
  • The TS-812's XLR input ensures high-quality microphone integration for every user.
  • Compact & durable design ensures the TOA delegate station fits any conference setting.
  • Clearly communicate with LED indicators for speech & power status on this station.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics TS-812 Specifications

  • Compatibility

    TS-910 Central Conferencing Unit

  • Power Source

    24V DC (supplied from the optional TS-918 Expansion unit)

  • Current Consumption

    Maximum 60mA

  • Modulation Method

    Frequency Modulation

  • Carrier Frequency

    Transmission: Audio channel 1 7.35MHz, Audio channel 2 8.10MHz, Audio channel 3 8.55MHz, Audio channel 4 9.15MHz, Control channel 6.45MHz
    Reception: Audio channel 1.95MHz

  • Input

    Microphone terminal: XLR-4-31 type (dedicated for connecting the optional TS-903 or TS-904)

  • Output

    Monitor Speaker: 8Ohms, 0.2W
    Headphone: 2x Dia. 3.5mm mini jack (3P: monaural)

  • Connection Terminal

    RJ45 connector

  • LED Indicator

    Speech indicator (flashes at communication failure), Power indicator (flashes at communication failure)

  • Function

    Monitor volume control, Headphone volume control

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Operating Humidity

    90% RH or less (no condensation)

  • Finish

    Top panel: ABS resin, gray metallic, paint, semi-gloss

  • Dimensions (WxHxD)

    210 x 68.6 x 152mm (8.27 x 2.70 x 5.98")

  • Weight

    560g (19.75 oz)

About TOA Electronics TS-812

Before you finalize your conference room setup, consider the TS-812 Wired Delegate Station, a crucial component for any professional conferencing system. This high-tech unit is designed to seamlessly integrate with the TS-910 Central Conferencing Unit, creating a sophisticated and efficient communication network for your meetings.

The TS-812 is more than just a delegate unit; it's a stylish and modern solution for your conferencing needs. It connects to the conference system via a cable, ensuring a reliable and consistent connection throughout your meetings. This sleek delegate station is equipped with a priority switch, a feature that allows speech from this unit to take precedence, ensuring that your voice is always heard clearly and effectively.

This unit is designed to connect directly to either the TS-919B1 or TS-919B4 Bridge unit, and then to the TS-910 Central unit via the TS-918 Expansion unit. This setup ensures a streamlined and efficient communication flow within your conference system.

Moreover, the TS-812 offers flexibility with microphone options. You can choose either the standard type or long type microphone, depending on your specific needs and preferences. This feature ensures that the TS-812 Wired Delegate Station is adaptable to various conference room setups and user requirements.

In conclusion, the TS-812 Wired Delegate Station is a sophisticated, high-tech addition to any conference room or meeting space. Its sleek design and modern features make it a reliable, efficient, and aesthetically pleasing choice for your conferencing system.

TOA Electronics TS-812 Features

  • 2 different versions for chairman and delegates
  • To prevent feedback, the built-in speaker is turned off while the microphone is on
  • 2 headphone jacks
  • Five year warranty

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Enhance your conferencing with the TOA TS-812 delegate station for clear audio.
  • Experience seamless connectivity with the TS-812, designed for the TS-910 system.
  • Enjoy adjustable headphone & monitor volume for personalized audio during meetings.
  • The TS-812's XLR input ensures high-quality microphone integration for every user.
  • Compact & durable design ensures the TOA delegate station fits any conference setting.
  • Clearly communicate with LED indicators for speech & power status on this station.

What's in the box:

  • TOA Electronics TS-812 Wired Delegate Station
  • TOA Electronics 5 Year Limited Warranty
