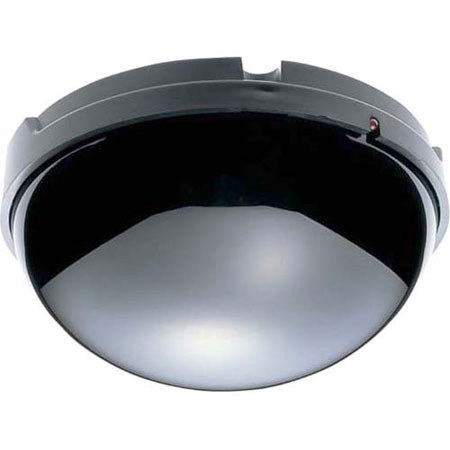

TOA Electronics TS905 Infrared Transceiver, Up to 16' Ceiling Height
See all TOA Electronics items

TOA Electronics TS905 Infrared Transceiver for TS-800UL/TS-900UL, Up to 16' Ceiling Height

SKU: TOTS905
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TOA Electronics TS905 Specifications

  • Compatibility

    TS-800UL/TS-900UL

  • Power Source

    24 V DC (supplied from the optional TS-800 or TS-900)

  • Current Consumption

    Max. 150 mA

  • Wavelength

    870 nm (AM: Brightness modulation)

  • Modulation Method

    Frequency modulation

  • Carrier Frequency

    Transmission: Audio channel 1: 7.35 MHz, Audio channel 2: 8.10 MHz, Audio channel 3: 8.55 MHz, Audio channel 4: 9.15 MHz, Control channel: 6.45 MHz, Reception: Base language channel: 1.95 MHz, Translation language channel: 2.25 MHz

  • Acceptance Angle

    Vertical: 150 Deg. (75 Deg. + 75Deg.), Horizontal: 360Deg.

  • Emission Angle

    Vertical: 150 Deg. (75 Deg. + 75Deg.), Horizontal: 360Deg.

  • Communication Area

    Approx. 6 - 7 m in radius from the point underneath the unit (ceiling height: 2.5 - 4.5 m)

  • Connection Terminal

    BNC jack

  • LED Indicator

    Power

  • Operating Temperature

    0 deg. C to +40 deg. C / 32 deg. F to 104 deg. F

  • Finish

    Dome: PC resin, visible light cut filter
    Base: ABS resin, black

  • Dimensions (Dia. x H)

    4.72 x 2.80" / 120 x 71.3 mm

  • Weight

    8.11oz / 230g (unit only)

About TOA Electronics TS905

The TOA Electronics TS905 Infrared Transceiver comes with Up to 16' Ceiling Height is cordless, it can be easily installed and removed. Communications between the TS-905 and conference units are performed by means of infrared signals and the TS-905 permits transmit and receive with the Central unit. It can be mounted not only to the ceiling and wall but on the microphone stand.

TOA Electronics TS905 Features

  • Installs in ceiling or wall
  • TS-905: Up to 16 ft. ceiling height
  • Coaxial cable with BNC connectors

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Installs in ceiling or wall

What's in the box:

  • TOA Electronics TS905 Infrared Transceiver for TS-800UL/TS-900UL
  • Mounting Bracket
  • Stand Mounting Bracket
  • 3x Screw M3 x 6
  • W5/16 to W5/8 Thread Adapter (Except for CE Version)
  • TOA Electronics 5 Year Warranty
