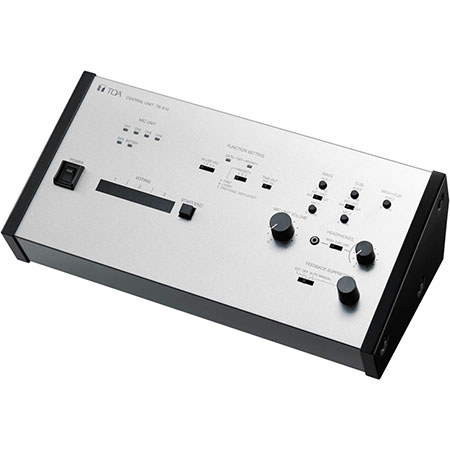

TOA Electronics Central Unit with Voting
See all TOA Electronics items
19% Off

TOA Electronics Central Unit with Voting

SKU: TOTS910UL MFR: TS910UL
Be the first to review this item2 questions, 1 answer
$1,835.21
$2,271.08
Save: $435.87 (19%)
OR
$153/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Ensure crystal-clear audio for every participant with this central unit.
  • Connect up to 192 chairman/delegate units for large conferences easily.
  • Enjoy versatile connectivity with multiple inputs/outputs for seamless integration.
  • Utilize external equalizer options for optimized sound during presentations.
  • Easily manage speaker priority and mic settings via function switches.
  • Monitor audio signals and battery status with clear LED indicators.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TOA Electronics Central Unit with Voting Specifications

  • Power Source

    100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)

  • Power Consumption

    72 W

  • Current Consumption

    Max. 3 A DC (when 24 V DC is supplied from the supplied AC adapter)

  • Current Frequency

    Reception: Audio channel 1: 7.35 MHz, Audio channel 2: 8.10 MHz, Audio channel 3: 8.55 MHz, Audio channel 4: 9.15 MHz, Control channel: 6.45 MHz
    Transmission: Base language channel: 1.95 MHz, Translation language channel: 2.25 MHz

  • Input

    MIC 1 (Base Language): -60 dB, 600 Ohms, unbalanced, Dia. 6.3 mm phone jack (2P)
    MIC 2 (Translation Language): -60 dB, 600 Ohms, unbalanced, Dia. 6.3 mm phone jack (2P)
    AUX 1 (Base Language): -20 dB, 10 kOhms, unbalanced, Dia. 6.3 mm phone jack (2P)
    AUX 2 (Translation Language): -20 dB, 10 kOhms, unbalanced, Dia. 6.3 mm phone jack (2P)
    AUX 3 (Bass and Translation Language): -20 dB, 10 kOhms, unbalanced, Dia. 6.3 mm phone jack (2P)

  • Output

    LINE: -20 dB, 10 kOhms, unbalanced, Dia. 6.3 mm phone jack (2P)
    REC: -20 dB, 10 kOhms, unbalanced, Dia. 6.3 mm phone jack (2P), RCA pin jack
    HEADPHONES: Dia. 3.5 mm mini jack (3P: monaural)

  • External Equalizer

    Input: -20 dB, 10 kOhms, unbalanced, RCA pin jack
    Output: -20 dB, 10 kOhms, unbalanced, RCA pin jack

  • No of Connectable Chairman/Delegate

    192 units

  • No of Connectable Infrared

    Transmitter/Receiver: Up to 4 units (with the use of distributor, up to 16 units connectable when they are all TS-905 and up to 12 units when they are all TS-907 or TS-905 and TS-907 are used in combination)

  • IR Transmitter/Receiver I/O Terminal

    BNC jack

  • Number of Connectable Expansion Units

    4 units (Up to 8 units connectable when using a distributor)

  • LED Indicator

    Voting result indicators 1 - 3 (7-segment LED, 3 digits), Audio signal receiving indicators 1 - 4 CH, Data signal receiving indicator, External control priority indicator, External control communication indicator, Battery indicator (Flashes in case of battery warning of Infrared Conference unit), Short-circuit indicator

  • External Control Terminal Connection

    D-sub connector (9P, male)/USB-B selectable

  • Function Switch

    Simultaneous speaker No. setting switch: 1/2/3/4
    Mic-off setting switch: TIME OUT ON/OFF
    Speech priority selector switch: A/B/C (A: First-in-first-out priority, B: Last-in-first-out priority, C: Fixed for the first unit and last-in-first-out for the subsequent units)
    FBS switch: External equalizer/OFF/Auto/Manual

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Operating Humidity

    90 %RH or less (no condensation)

  • Finish

    Panel: Surface-treated steel plate, gray metallic, paint, semi-gloss

  • Dimensions (W x H x D)

    14.13 x 4.68 x 5.44" / 358.90 x 118.87 x 138.17 mm

  • Weight

    6.17 lbs / 2.79 kg

About TOA Electronics Central Unit with Voting

After integrating the TOA Electronics Central Unit into your conference or meeting setup, you'll experience the seamless blend of advanced technology and professional-grade performance. This sophisticated unit allows for the simultaneous use of both its infrared wireless system and wired system, connected via CAT-5 LAN cables.

The Central Unit serves as the hub for wired Chairman and Delegate units, collectively known as "Conference units". These units are connected to the Central Unit through the wired Expansion and Bridge units, ensuring a reliable and high-quality communication network.

In addition, the Central Unit also supports Infrared Conference units, which provide wireless communication through the Infrared Transmitter/Receiver unit. This feature eliminates the need for wiring to individual conference units, enabling easy installation and versatile configuration options to suit any meeting room layout.

The Central Unit is not just a connectivity hub, but also a control center. It is designed to perform system function settings and display the status of the system, making it an essential tool for efficient and effective communication during meetings or presentations.

Experience the blend of durability, sophistication, and advanced technology with the TOA Electronics Central Unit, designed to elevate your professional communication needs.

TOA Electronics Central Unit with Voting Features

  • Works with TS-811/812 & TS-911/912 wired stations (requires TS-918 and TS-919A or B)
  • Compatible with exisitingTS-800/900 IR stations (replaces TS-900 controller)
  • Wired & wireless stations may be combined to create larger "hybrid" configurations
  • Total station capacity: 192 stations (combined wired & wireless)
  • Adds voting & interpretation features to wired configurations
  • Includes Feedback Suppressor function
  • Control & monitoring via free PC Software using USB connection. Individual station volume control via RS-232

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure crystal-clear audio for every participant with this central unit.
  • Connect up to 192 chairman/delegate units for large conferences easily.
  • Enjoy versatile connectivity with multiple inputs/outputs for seamless integration.
  • Utilize external equalizer options for optimized sound during presentations.
  • Easily manage speaker priority and mic settings via function switches.
  • Monitor audio signals and battery status with clear LED indicators.

What's in the box:

  • TOA Electronics Central Unit with Voting
  • AC Adapter with 5.91' DC Cord
  • 6.56' Detachable AC Cord
  • TOA Electronics Warranty
