19% Off

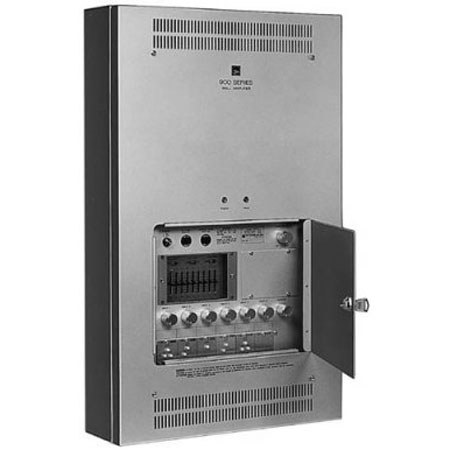

TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifier, 30Hz - 20kHz Frequency Response, 100mV Sensitivity, 10kOhms Impedance, 60W RMS Output Power, Silver

SKU: TOW906AUL MFR: W906AUL
Earn VIP Reward Points

Key Features

  • This 6-channel mixer power amplifier delivers 60W RMS for robust audio output.
  • Customize your sound with the 9-band equalizer, perfect for fine-tuning your audio.
  • The in-wall design of this amplifier with mixer saves space and simplifies setup.
  • Enjoy clear audio with a frequency response of 30Hz-20kHz for balanced sound.
  • Ideal for installations, offering versatile input options via card-edge connectors.
  • Easily manage sound with six input gain controls and a master gain control.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : This amp has phantom power?

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifier, 60W RMS, Silver Specifications

  • Type

    Wall mounting 6-channel mixer power amplifier

  • Output Power

    60W RMS

  • Power Bandwidth

    (D): 20 - 20,000 Hz, 0.5% THD
    (T): 20 - 20,000 Hz, 0.5% THD

  • Frequency Response

    (D): 30 - 20,000 Hz, +/-1 dB
    (T): 30 - 15,000 Hz, +/-1 dB
    (T): 30 - 20,000 Hz, +/-1 dB, - 3 dB

  • Total Harmonic Distortion

    0.02% at 1 kHz, rated output

  • Inputs

    Six input ports: Each port accepts any input module except T-01S.
    Use T-01S only in port 5 or 6. One bridging input/output.

  • Input Sensitivity/Impedance

    Input ports 1 to 6: 100 mV, 10 kOhms
    Bridging input/output: 100 mV, 3.3 kOhms

  • Outputs

    (T): 8 Ohms, 25 V and 70 V, balanced
    (D): 4 Ohms, unbalanced

  • Output Regulation (1 kHz)

    (D): Less than 0.5 dB, no load to full load.
    (T): Less than 1.0 dB, no load to full load.

  • Signal to Noise Ratio

    Controls OFF: 90 dB
    Master volume Max: 77 dB
    Equalizer IN: 88 dB
    Compressor IN: 84 dB (Band Pass: 20 - 20,000 Hz)

  • Compression

    Attack time: No greater than 2 milliseconds
    Compression range: 20 dB
    Release time: Adjustable 20 - 2,000 milliseconds
    Distortion: Less than 1%

  • Equalization

    9-Band ISO One-octave graphic equalizer
    enter frequencies: 63, 125, 250, 500, 1000, 2000, 4000, 8000, 16000 Hz
    Equalization range: +/-12 dB

  • Filters

    High-pass filter: 180 Hz, 12 dB/octave
    Low-pass filter: 7 kHz, 12 dB/octave

  • Controls

    6 Input gain controls, 1 Master gain control, 1 Compression level control, 9 Equalizer controls, 1 Power ON/OFF switch, 1 Equalizer ON/OFF switch, 1 High-pass filter ON/OFF switch, 1 Low-pass filter ON/OFF switch, 1 Low-cut switch (60 Hz, 6 dB/octave, inside)

  • Indicators

    1 LED power indicator, 1LED peak indicator

  • Connectors

    Input 1 to 6: Card-edge connector
    Output: Screw-terminal strip
    Bridging input/output: Screw-terminal strip
    Mute: Screw-terminal strip
    AC Power cord: SJT 3-conductor

  • Power Consumption

    AC120 V, 60 Hz, 100 W

  • Dimensions (W x H x D)

    Face panel: 16.57 x 26.77 x 1.1" / 421 x 680 x 28mm
    BX-9F Back Box: 14.25 x 24.72 x 3.86" / 362 x 628 x 98mm
    BX-9S Back Box: 16.22 x 26.77 x 3.86" / 412 x 680 x 98mm

  • Weight

    Without input modules and back box: 30.2lbs / 13.7kg

About TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifier, 60W RMS, Silver

Be captivated by the superior sound quality and versatility of the TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifier. With a sleek silver finish, this high-performance amplifier is not only stylish but also a powerhouse with a 60W RMS output.

Designed for optimal performance, this advanced amplifier boasts a wide frequency response range of 30Hz to 20kHz, ensuring it can handle a diverse array of music and sound types. Its high sensitivity of 100mV guarantees the ability to pick up even the weakest signals, producing clear, high-quality sound every time.

The TOA Electronics Amplifier is engineered to minimize noise and distortion, providing an excellent output regulation for a seamless audio experience. It features six module slots that accept TOA plug-in modules, offering unmatched flexibility for your audio setup.

This reliable amplifier is designed for both flush and surface mounting, with optional back boxes - BX-9F for flush-mount and BX-9S for surface-mount, making it a versatile choice for any home or commercial setting.

The built-in one octave Nine Band Equalizer allows you to fine-tune your audio to perfection. High and Low Pass Filters and a Compressor are included to prevent overload and distortion, ensuring the longevity of your device.

For added safety, this durable amplifier comes with Thermal, DC, and Overload Protection, along with muting during power up. Peak and Power Indicators provide real-time monitoring of your amplifier's performance.

Lastly, the Muting Function for input priority override ensures that your most important audio signals are always heard. Experience the difference with the TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifier, the perfect blend of style, performance, and advanced technology.

TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifier, 60W RMS, Silver Features

  • Expandable to 8-input
  • Low distortion and noise
  • Excellent output regulation
  • Built-in one-octave equalizer
  • Built-in compressor
  • Self-protection circuitry design
  • Separate output terminals
  • Extra space for customizing
  • LED pilot light
  • LED peak indicator
  • Full range of plug-in modules
  • Flush and surface mounting

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • This 6-channel mixer power amplifier delivers 60W RMS for robust audio output.
  • Customize your sound with the 9-band equalizer, perfect for fine-tuning your audio.
  • The in-wall design of this amplifier with mixer saves space and simplifies setup.
  • Enjoy clear audio with a frequency response of 30Hz-20kHz for balanced sound.
  • Ideal for installations, offering versatile input options via card-edge connectors.
  • Easily manage sound with six input gain controls and a master gain control.

What's in the box:

  • TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifiers
  • 3x Volume Control Cover
  • 2x Key (for door)
  • 2x Lift-off Hinge (receptacle)
  • 5x Machine Screw (M4 x 10)
  • 6x Machine Screw (M3 x 6)
  • 4x Machine Screw (M3 x 10)
  • 4x Flange Nut
  • 4x Tapping Screw (3 x 8)
  • 4x Inch Screw
  • Indication Label
  • Instruction Manual
  • Instruction Manual (New 900 series modules)
  • TOA Electronics 5 Year Limited Warranty
