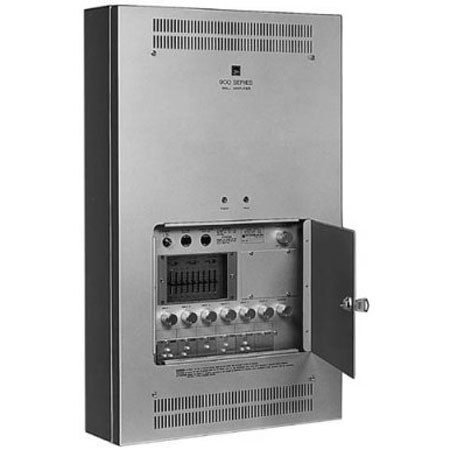

TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifier, 120W RMS,Silver
See all TOA Electronics items

TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifier, 30Hz - 20kHz Frequency Response, 100mV Sensitivity, 10kOhms Impedance, 120W RMS Output Power, Silver

SKU: TOW912AUL
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifier, 120W RMS,Silver Specifications

  • Type

    Wall mounting 6-channel mixer power amplifier

  • Output Power

    120W RMS

  • Power Bandwidth

    (D): 20 - 20,000 Hz, 0.5% THD
    (T): 20 - 20,000 Hz, 0.5% THD

  • Frequency Response

    (D): 30 - 20,000 Hz, +/-1 dB
    (T): 30 - 15,000 Hz, +/-1 dB
    (T): 30 - 20,000 Hz, +/-1 dB, - 3 dB

  • Total Harmonic Distortion

    0.02% at 1 kHz, rated output

  • Inputs

    Six input ports: Each port accepts any input module except T-01S.
    Use T-01S only in port 5 or 6. One bridging input/output.

  • Input Sensitivity/Impedance

    Input ports 1 to 6: 100 mV, 10 kOhms
    Bridging input/output: 100 mV, 3.3 kOhms

  • Outputs

    (T): 8 Ohms, 25 V and 70 V, balanced
    (D): 4 Ohms, unbalanced

  • Output Regulation (1 kHz)

    (D): Less than 0.5 dB, no load to full load.
    (T): Less than 1.0 dB, no load to full load.

  • Signal to Noise Ratio

    Controls OFF: 90 dB
    Master volume Max: 77 dB
    Equalizer IN: 88 dB
    Compressor IN: 84 dB (Band Pass: 20 - 20,000 Hz)

  • Compression

    Attack time: No greater than 2 milliseconds
    Compression range: 20 dB
    Release time: Adjustable 20 - 2,000 milliseconds
    Distortion: Less than 1%

  • Equalization

    9-Band ISO One-octave graphic equalizer
    enter frequencies: 63, 125, 250, 500, 1000, 2000, 4000, 8000, 16000 Hz
    Equalization range: +/-12 dB

  • Filters

    High-pass filter: 180 Hz, 12 dB/octave
    Low-pass filter: 7 kHz, 12 dB/octave

  • Controls

    6 Input gain controls, 1 Master gain control, 1 Compression level control, 9 Equalizer controls, 1 Power ON/OFF switch, 1 Equalizer ON/OFF switch, 1 High-pass filter ON/OFF switch, 1 Low-pass filter ON/OFF switch, 1 Low-cut switch (60 Hz, 6 dB/octave, inside)

  • Indicators

    1 LED power indicator, 1LED peak indicator

  • Connectors

    Input 1 to 6: Card-edge connector
    Output: Screw-terminal strip
    Bridging input/output: Screw-terminal strip
    Mute: Screw-terminal strip
    AC Power cord: SJT 3-conductor

  • Power Consumption

    AC120 V, 60 Hz, 180 W

  • Dimensions (W x H x D)

    Face panel: 16.57 x 26.77 x 1.1" / 421 x 680 x 28mm
    BX-9F Back Box: 14.25 x 24.72 x 3.86" / 362 x 628 x 98mm
    BX-9S Back Box: 16.22 x 26.77 x 3.86" / 412 x 680 x 98mm

  • Weight

    Without input modules and back box: 38.14lbs / 17.3kg

About TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifier, 120W RMS,Silver

The TOA Electronics 6-Channel In-Wall Mixer Power Silver Amplifiers Modular (120W RMS)design allows fast and easy custom configurations. It engineered for high performance with wide frequency response, very low noise and distortion and excellent output regulation. It has six module slots accept TOA plug-in modules for unmatched flexibility and Flush or Surface-mount with optional back boxes - BX-9F (flush-mount) and BX-9S (surface-mount).

It features one octave Nine Band Equalizer. It has High and Low Pass Filters and Compressor prevents overload and distortion. That Thermal, DC and Overload Protection with muting during power up an Peak and Power Indicators. And it also have Muting Function for input priority override.

TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifier, 120W RMS,Silver Features

  • Expandable to 8-input
  • Low distortion and noise
  • Excellent output regulation
  • Built-in one-octave equalizer
  • Built-in compressor
  • Self-protection circuitry design
  • Separate output terminals
  • Extra space for customizing
  • LED pilot light
  • LED peak indicator
  • Full range of plug-in modules
  • Flush and surface mounting

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Expandable to 8-input
  • Low distortion and noise
  • Excellent output regulation
  • Built-in one-octave equalizer
  • Built-in compressor
  • Self-protection circuitry design

What's in the box:

  • TOA Electronics 6-Channel In-Wall Modular Mixer Power Amplifiers
  • 3x Volume Control Cover
  • 2x Key (for door)
  • 2x Lift-off Hinge (receptacle)
  • 5x Machine Screw (M4 x 10)
  • 6x Machine Screw (M3 x 6)
  • 4x Machine Screw (M3 x 10)
  • 4x Flange Nut
  • 4x Tapping Screw (3 x 8)
  • 4x Inch Screw
  • Indication Label
  • Instruction Manual
  • Instruction Manual (New 900 series modules)
  • TOA Electronics 5 Year Warranty
