Toshiba N300 Pro SATA III 3.5" Internal NAS Hard Drive Specifications

General

General

Jump to...
  • Available Capacities

    4TB, 6TB, 8TB, 10TB, 12TB, 14TB, 16TB, 18TB, 20TB

  • Interface

    SATA III 6.0 Gbit/s

  • Form Factor

    3.5" (8.89cm)

  • Sector Size

    512e

Features

Jump to...
  • Drive Bays Supported

    Up to 24

  • Rotational Vibration

    Yes

  • Shock Sensor

    Yes

  • Drive Stabilization Technology

    10TB, 12TB, 14TB, 16TB, 18TB, 20TB: Yes (Dual Tied)

  • Toshiba Cache Technology

    Yes

  • Ramp Load Technology

    Yes

Performance

Jump to...
  • Rotational Speed

    7200 RPM

  • Max Transfer Speed

    4TB: 232MB/s Type
    6TB: 250MB/s Type
    8TB: 260MB/s Type
    10TB, 12TB, 14TB, 16TB, 18TB, 20TB: : 281MB/s Type

  • Cache Size

    4TB, 6TB, 8TB: 256MB
    10TB, 12TB, 14TB, 16TB, 18TB, 20TB: 512MB

Reliability

Jump to...
  • 24x7 Operation

    Yes

  • Workloads

    300 TB/Year

  • MTTF

    1,200,000 Hours

  • Unrecoverable Error Rate

    4TB, 6TB, 8TB: 1 Per 1016
    10TB, 12TB, 14TB, 16TB, 18TB: 1 Per 1014
    20TB: 1 Per 1015

  • Load/Unload Cycles

    600000

Power Management

Jump to...
  • Supply Voltage

    5V DC + 10% / -7%
    12V DC +/- 10%

  • Power Consumption (Operating)

    4TB: 7.76W
    6TB: 8.50W
    8TB: 9.29W
    10TB, 12TB: 6.85W
    14TB: 7.38W
    16TB, 18TB: 7.48W
    20TB: 7.3W

  • Power Consumption (Idle)

    4TB: 4.07W
    6TB: 4.90W
    8TB: 5.61W
    10TB, 12TB: 3.30W
    14TB: 3.77W
    16TB, 18TB, 20TB: 4.14W

Environmental

Jump to...
  • Temperature (Operating)

    41 to 149 Degree F (5 to 65 Degree C)

  • Temperature (Non-Operating)

    -40 to 158 Degree F (-40 to 70 Degree C)

  • Vibration (Operating)

    7.35 (0.75G) (5 to 300Hz)
    2.45 (0.25G) (300 to 500Hz)

  • Vibration (Non-Operating)

    29.4 m/sq. s (3.0G) (5 to 500Hz)

  • Shock (Operating)

    4TB, 6TB, 8TB, 10TB, 12TB, 14TB, 16TB, 18TB: 686 m/sq. s (70G) (2ms duration)
    20TB: 490 m/sq. s (50G) (2ms duration)

  • Shock (Non-Operating)

    4TB: 2,940 m/sq. s (250G) (2 ms duration)
    6TB, 8TB, 10TB, 12TB, 14TB, 16TB, 18TB: 2,450 m/sq. s (250G) (2 ms duration)
    20TB: 1960 m/sq. s (200G) (2ms duration)

  • Acoustics (Idle Model)

    4TB, 6TB, 8TB: 31dB
    10TB, 12TB, 14TB, 16TB, 18TB, 20TB: 20dB

Physical

Jump to...
  • Bottom Holes Type

    4TB ,6TB, 8TB: Type 2
    10TB, 12TB, 14TB, 16TB, 18TB: Type 1

  • Dimensions

    1.02 x 5.78 x 4.01" (26.1 x 147 x 101.85mm)

  • Weight

    4TB: 24.44 oz (693g)
    6TB: 24.69 oz (700g)
    8TB, 16TB, 18TB, 20TB: 25.39 oz (720g)
    10TB, 12TB: 24.34 oz (690g)
    14TB: 24.86 oz (705g)

  • UPC Code

    723844001179

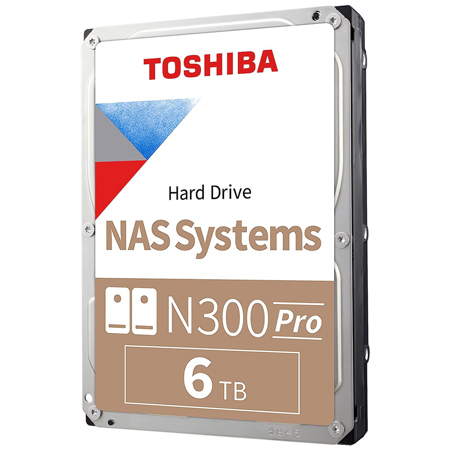

About Toshiba N300 Pro SATA III 3.5" Internal NAS Hard Drive

Trusted Reliability. Built for Business NAS.
The Toshiba N300 Pro NAS Internal Hard Drive is ready to help you scale your business with up to 24 drive bay support.

Offering a higher workload of up to 300 TB/yr and an expanded capacity of up to 20TB (compared to the N300), you can rely on the N300 Pro to help you take your business to the next level. Delivering the 7200 RPM speed you need to access your data quickly and 24/7 operation to help keep your data readily accessible, these drives are optimized to help keep your business growing.

The N300 Pro is designed to work in wide temperature ranges and has built-in RV sensors to mitigate rotational vibration in a multi-RAID environment, so you can be confident that this drive will perform wherever and whenever you need it most. Plus, this drive is engineered with CMR technology to deliver consistent performance and broad compatibility.

When speed, reliability and performance are critical to your business, the N300 Pro hard drive delivers.

Applications:
• Network Attached Storage (NAS) for high-intensity workloads
• NAS systems for medium or large-sized businesses
• RAID-optimized NAS systems with up to 24 bays

Built for Mid to Large-sized Business
• Supports multi-RAID systems with up to 24 bays
• Designed for 24/7 operation with workload rate of up to 300 TB/year
• CMR technology delivers consistent performance and broad compatibility

Rotational Vibration Compensation Technology
Integrated RV sensors help ensure high reliability against shock and vibrations by detecting and minimizing rotational vibration effects in multi-bay NAS system.

Toshiba Cache Technology
On-board cache algorithm and buffer management optimize cache allocation between read and write cycles for improved real-time drive performance.

High Performance during intensive operations
• 7200 RPM speed and up to 512MB data buffer ensures high performance and fast read speed during data intensive operation
• Fast data transfer speed up to 281 MB/s provides quick access to essential content

Data Protection Technologies
• Ramp loading technology reduces wear to the recording head and media for improved drive reliability
• Error Recovery Control technology limits recovery time to help optimize error correction in RAID environments

Drive Stabilization Technology
Secured motor shaft at both ends helps reduce system-induced vibrations, stabilizing the platters for improved tracking accuracy and performance during read and write operations.

High Durability and Heat Prevention
The drive automatically adjusts the seek speed when it reaches a critical temperature to help reduce heat buildup during high temperature operation.

Peace of Mind
High reliability with MTTF up to 1.2 million hours.

Toshiba N300 Pro SATA III 3.5" Internal NAS Hard Drive Features

  • Operate Around the Clock: Designed for 24/7 NAS systems
  • Optimized for RAID Environment: Built-in RV sensors to mitigate rotational vibration. Error Recovery Control technology limits recovery time to help optimize error correction
  • Grow Your Business: Scalable up to 24 drive bays for medium or large-sized business. CMR technology for broad compatibility
  • Powerful Performance: 7200 RPM speed with 512MB cache size. Powered by Toshiba cache technology
  • Enhanced Reliability: Workload rate up to 300 TB/yr. MTTF Up to 1.2 million hours
  • Capacity for More: Store and access your critical data and important documents with up to 20TB storage capacity

Key Features

  • Operate Around the Clock: Designed for 24/7 NAS systems
  • Optimized for RAID Environment: Built-in RV sensors to mitigate rotational vibration
  • Enhanced Reliability: Workload rate up to 300 TB/yr. MTTF Up to 1.2 million hours
  • 7200 RPM speed with up to 512MB cache size. Powered by Toshiba cache technology
  • Store and access your critical data and important documents with up to 20TB storage capacity

What's in the box:

  • Toshiba N300 Pro SATA III 3.5" Internal NAS Hard Drive
  • Toshiba 5 Year Limited Warranty
