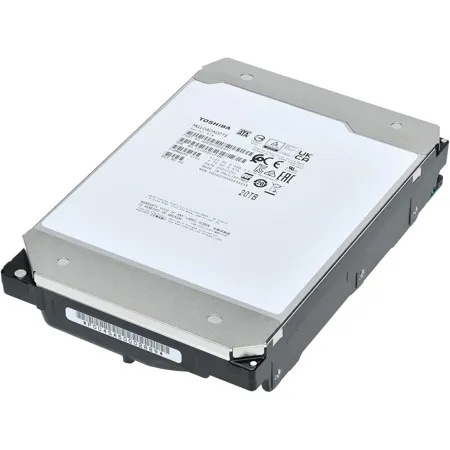

Toshiba MG10-F Series 22TB 3.5" Internal Hard Drive SAS

SKU: TOWMG10S22TE MFR: MG10SFA22TE
Earn VIP Reward Points

Key Features

  • Experience robust storage with the Toshiba 22TB hard disk drive, perfect for large-scale data.
  • Boost your system's capabilities using a reliable 7200 RPM HDD for quick data access and transfers.
  • This Toshiba internal hard drive offers a SATA interface, ensuring seamless integration with your setup.
  • Confidently store crucial files; this HDD is rated for 550TB per year workload with enterprise-class build.
  • Enjoy consistent performance with a large 512MiB buffer size, optimizing data handling on your HDD.
  • With a 2.5M hour MTTF, this 22TB Toshiba hard drive delivers long-lasting reliability for your data needs.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/07/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$54.99

2 Year

$89.99

3 Year

$139.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Toshiba MG10-F Specifications

General

General

Jump to...
  • Available Interfaces

    SATA-3.3
    SAS-3.0

  • Formatted Capacity

    22TB

  • Logical Data Block Length

    SATA: HOST 512 B, DISK 4096 B
    SAS:
    HOST 512 B, DISK 4096 B
    HOST 520 B, DISK 4160 B
    HOST 528 B, DISK 4224 B

Performance

Jump to...
  • Interface Speed

    SATA: 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s
    SAS: 12.0 Gbit/s, 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s

  • Rotation Speed

    7200 rpm

  • Buffer Size

    512 MiB

  • Max. Sustained Data Transfer Speed

    271 MiB/s (Typ.)

Supply Voltage

Jump to...
  • Allowable Voltage

    12V +/-10% / 5V+10%/-7%

Power Consumption

Jump to...
  • Write / Read (4KB Q1) (Typ.)

    SATA: 8.38W
    SAS: 8.86W

  • Active Idle (Typ.)

    SATA: 4.35W
    SAS: 4.82W

Acoustics (Sound Power)

Jump to...
  • Idle (Typ.)

    20 dB

  • Seek (Typ.)

    32 dB

Environmental

Jump to...
  • Ambient Temperature

    Operating: 41 to 131 Degree F (5 to 55 Degree C) (No condensation)
    Non-Operating: -40 to 158 Degree F (-40 Degree C to 70 Degree C) (No condensation)

  • Enclosure surface temperature

    Operating: 41 to 140 Degree F (5 to 60 Degree C) (No condensation)

  • Relative Humidity

    Operating: 5 to 90% R.H. (No condensation)
    Non-Operating: 5 to 95% R.H. (No condensation)

  • Altitude

    Operating: -1000.66 to 10000' (-305 to +3048m)
    Non-Operating: -1000.66 to 40000' (-305 to +12192m)

  • Shock

    Operating: 490 sq. m/s (50 G) (2 ms duration)
    Non-Operating: 1960 sq. m/s (200 G) (2 ms duration)

  • Vibration

    Operating:
    7.35 sq. m/s (0.75 G) (5 to 300 Hz)
    2.45 sq. m/s (0.25 G) (300 to 500 Hz)

    Non-Operating:
    29.4 sq. m/s (3.0 G) (5 to 500 Hz)

Reliability

Jump to...
  • MTTF / MTBF (AFR)

    2 500 000 hours (0.35 %)

  • Non-recoverable Error Rate

    10 per 1016 bits read

  • Load / Unload

    600 000 times

  • Rated Annual Workload

    550 TB per year

Physical

Jump to...
  • Weight

    25.39 oz (720g)

  • UPC Code

    723844002817

About Toshiba MG10-F

Rethink Your Data Storage Toshiba Enterprise HDDs
The MG10F Series provides upto 22TB of conventional magnetic recording (CMR) capacity. The drive feature a 550TB per year workload rating with 7,200 rpm performance in a 10-disk helium-sealed, industry-standard 3.5-inch form factor. The MG10F integrates easily into existing drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure.

The MG10F supports File, Object and Block storage making it an excellent choice for business critical servers and storage systems. The MG10F Series delivers optimum storage capacity and application compatibility, with unsurpassed data reliability.

Massive Capacity
Up to 22 TB of Conventional Magnetic Recording (CMR) capacity. Available in SATA and SAS models with 512e or 4Kn Advanced Format Sector Technology.

Enterprise Grade Reliability
Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events (512e models).

Industry Leading Mechanical Design
Industry-leading 10-disk helium-sealed design for superior storage density.

Toshiba Precision Laser Welding Technology
Seals helium inside the 10-disk mechanics to reduce aerodynamic drag and deliver a lower operational power profile.

Lower Total Cost of Ownership (TCO)
Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO.

Applications
• Cloud-scale Server and Storage Infrastructure
• Tiered Object Storage for Cloud Hybrid Cloud and Private Cloud
• Scale-out File and Object Storage Infrastructure
• Distributed files systems
• OLTP (Online Transaction Processing) and HPC (High Performance Computing) applications
• High Capacity RAID storage
• Secure Enterprise Backup and Restore
• Data Retention and Compliance Data Archives
• Data Analytics
• Centralized Surveillance

Toshiba MG10-F Features

  • 22TB capacity
  • Conventional Magnetic Recording (CMR) for broad compatibility
  • Industry-leading 10-disk helium-sealed design for superior storage density
  • Industry Standard 3.5", 26.1mm height Form Factor
  • 7200 rpm Performance
  • Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
  • 550 Total TB Transferred per Year Workload Rating
  • Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience robust storage with the Toshiba 22TB hard disk drive, perfect for large-scale data.
  • Boost your system's capabilities using a reliable 7200 RPM HDD for quick data access and transfers.
  • This Toshiba internal hard drive offers a SATA interface, ensuring seamless integration with your setup.
  • Confidently store crucial files; this HDD is rated for 550TB per year workload with enterprise-class build.
  • Enjoy consistent performance with a large 512MiB buffer size, optimizing data handling on your HDD.
  • With a 2.5M hour MTTF, this 22TB Toshiba hard drive delivers long-lasting reliability for your data needs.

What's in the box:

  • Toshiba MG10-F Series 22TB 3.5" Internal Hard Drive
  • Toshiba 5 Year Limited Warranty
