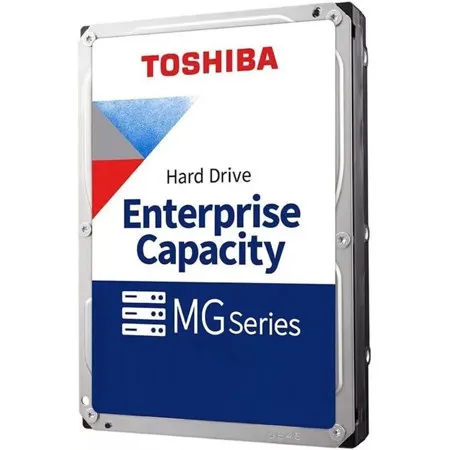

Toshiba MG11 Series 24TB SAS III 3.5" Internal Hard Drive

SKU: TOWMG1124TE MFR: MG11SCA24TE
Earn VIP Reward Points

Key Features

  • Experience robust storage with this 24TB Toshiba hard disk drive, perfect for large-scale data centers.
  • Maximize your server's potential; this 7200 RPM HDD ensures swift data access and reliable performance.
  • Trust in enterprise-grade reliability with a Toshiba hard drive, featuring a 2.5M hour MTTF for peace of mind.
  • Ensure data integrity; this SAS III interface HDD supports up to 550TB per year workload with ease.
  • Optimize your data infrastructure with a Toshiba 3.5" hard drive, designed for continuous operation.
  • Enjoy fast data transfers; this Toshiba HDD provides up to 295 MiB/s sustained transfer speed for efficiency.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$54.99

2 Year

$89.99

3 Year

$139.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Toshiba MG11 Specifications

General

General

Jump to...
  • Interface

    SAS-3 and later

  • Formatted Capacity

    24TB

  • Logical Data Block Length

    HOST 512 B, DISK 4096 B
    HOST 520 B, DISK 4160 B
    HOST 528 B, DISK 4224 B

Performance

Jump to...
  • Interface Speed

    12.0 Gbit/s, 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s

  • Rotation Speed

    7200 rpm

  • Buffer Size

    1 GiB

  • Max. Sustained Data Transfer Speed

    295 MiB/s (Typ.)

Supply Voltage

Jump to...
  • Allowable Voltage

    12V +/-10 % / 5V +10/-7 %

Power Consumption

Jump to...
  • Write / Read (4KB Q1) (Typ.)

    8.57W

  • Active Idle (Typ.)

    4.83W

Acoustics (Sound Power)

Jump to...
  • Idle (Typ.)

    20 dB

  • Seek (Typ.)

    32 dB

Environmental Limits

Jump to...
  • Ambient Temperature

    Operating: 41 to 131 Degree F (5 to 55 Degree C) (No condensation)
    Non-Operating: -40 to 158 Degree F (-40 Degree C to 70 Degree C) (No condensation)

  • Enclosure surface temperature

    Operating: 41 to 140 Degree F (5 to 60 Degree C) (No condensation)

  • Relative Humidity

    Operating: 5 to 90% R.H. (No condensation)
    Non-Operating: 5 to 95% R.H. (No condensation)

  • Altitude

    Operating: -1000.66 to 10000' (-305 to +3048m)
    Non-Operating: -1000.66 to 40000' (-305 to +12192m)

  • Shock

    Operating: 490 sq. m/s (50 G) (2 ms duration)
    Non-Operating: 1960 sq. m/s (200 G) (2 ms duration)

  • Vibration

    Operating:
    7.35 sq. m/s (0.75 G) (5 to 300 Hz)
    2.45 sq. m/s (0.25 G) (300 to 500 Hz)

    Non-Operating:
    29.4 sq. m/s (3.0 G) (5 to 500 Hz)

Reliability

Jump to...
  • MTTF / MTBF (AFR)

    2 500 000 hours (0.35 %)

  • Non-recoverable Error Rate

    10 per 1016 bits read

  • Load / Unload

    600 000 times

  • Rated Annual Workload

    550 TB per year

Physical

Jump to...
  • Weight

    25.75 oz (730g)

  • UPC Code

    723844002985

About Toshiba MG11

Rethink Your Data Storage Toshiba Enterprise HDDs
Built on 50 years of Toshiba's HDD innovation, the MG11 Series delivers new levels of capacity, performance, and quality. Packing up to 24TB into a standard 3.5-inch conventional magnetic recording (CMR) HDD, the MG11 Series enables cloud-scale infrastructure to build higher storage densities at lower TCO. The MG11 Series features up to a 10-disk helium-sealed 3.5-inch design, which leverages Toshiba's innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology to achieve 2.4TB per disk. Built to meet growing data storage demands, the MG11 Series has a high workload rating of 550TB with 7200 rpm, and is available 12Gbps SAS interfaces. Engineered for 24/7 quality and enterprise reliability, the MG11 Series has an MTTF of 2.5 million hours. SED and SIE options are available to secure data and deliver peace of mind.

Massive Capacity
Up to 24TB of Conventional Magnetic Recording (CMR) capacity. Available in SAS models with 512e or 4Kn Advanced Format Sector Technology.

Enterprise Grade Reliability
Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events (512e models).

Industry Leading Mechanical Design
10-disk design for superior storage density.

Toshiba Precision Laser Welding Technology
Seals helium inside the 10-disk mechanics to reduce aerodynamic drag and deliver a lower operational power profile.

Lower Total Cost of Ownership (TCO)
Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO.

Applications
• Data Center Applications
• Big Data
• Video Surveillance
• Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
• Compliance Data Archives and Data Life-Cycle Management Storage Systems
• Data Back-up Infrastructure

Toshiba MG11 Features

  • 24TB capacity
  • Conventional Magnetic Recording (CMR) for broad compatibility
  • Toshiba 2nd generation Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) Technology
  • Industry-leading 10-disk helium-sealed design for superior storage density
  • Industry Standard 3.5", 26.1mm height Form Factor
  • 7200 rpm Performance
  • Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
  • 550 Total TB Transferred per Year Workload Rating

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience robust storage with this 24TB Toshiba hard disk drive, perfect for large-scale data centers.
  • Maximize your server's potential; this 7200 RPM HDD ensures swift data access and reliable performance.
  • Trust in enterprise-grade reliability with a Toshiba hard drive, featuring a 2.5M hour MTTF for peace of mind.
  • Ensure data integrity; this SAS III interface HDD supports up to 550TB per year workload with ease.
  • Optimize your data infrastructure with a Toshiba 3.5" hard drive, designed for continuous operation.
  • Enjoy fast data transfers; this Toshiba HDD provides up to 295 MiB/s sustained transfer speed for efficiency.

What's in the box:

  • Toshiba MG11 Series 24TB SAS III 3.5" Internal Hard Drive
  • Toshiba 5 Year Limited Warranty
