Toshiba X300 Pro Performance SATA III 3.5" Internal Hard Drive Specifications

General

General

Jump to...
  • Available Capacities

    4TB, 6TB, 8TB, 10TB, 12TB, 14TB, 16TB, 18TB, 20TB

  • Interface

    SATA III 6.0 Gbit/s

  • Form Factor

    3.5" (8.89cm)

  • Sector Size

    512e

Features

Jump to...
  • Shock Sensor

    Yes

  • Drive Stabilization Technology

    10TB, 12TB, 14TB, 16TB, 18TB, 20TB: Yes (Dual Tied)

  • Toshiba Cache Technology

    Yes

  • Ramp Load Technology

    Yes

Performance

Jump to...
  • Rotational Speed

    7200 RPM

  • Cache Size

    4TB, 6TB, 8TB: 256MB
    10TB, 12TB, 14TB, 16TB, 18TB, 20TB: 512MB

Reliability

Jump to...
  • Workloads

    300 TB/Year

  • MTTF

    1,000,000 Hours

  • Unrecoverable Error Rate

    4TB, 6TB, 8TB: 1 Per 1016
    10TB, 12TB, 14TB, 16TB, 18TB: 1 Per 1014
    20TB: 1 Per 1015

  • Load/Unload Cycles

    300000

Power Management

Jump to...
  • Supply Voltage

    5V DC + 10% / -7%
    12V DC +/- 10%

  • Power Consumption (Operating)

    4TB: 7.76W
    6TB: 8.50W
    8TB: 9.29W
    10TB, 12TB: 6.85W
    14TB: 7.38W
    16TB, 18TB: 7.48W
    20TB: 7.3W

  • Power Consumption (Idle)

    4TB: 4.07W
    6TB: 4.90W
    8TB: 5.61W
    10TB, 12TB: 3.30W
    14TB: 3.77W
    16TB, 18TB, 20TB: 4.14W

Environmental

Jump to...
  • Temperature (Operating)

    41 to 149 Degree F (5 to 65 Degree C)

  • Temperature (Non-Operating)

    -40 to 158 Degree F (-40 to 70 Degree C)

  • Vibration (Operating)

    7.35 (0.75G) (5 to 300Hz)
    2.45 (0.25G) (300 to 500Hz)

  • Vibration (Non-Operating)

    29.4 m/sq. s (3.0G) (5 to 500Hz)

  • Shock (Operating)

    4TB, 6TB, 8TB:784 m/sq. s (80G) (2ms duration)
    10TB, 12TB, 14TB, 16TB, 18TB: 686 m/sq. s (70G) (2ms duration)
    20TB: 490 m/sq. s (50G) (2ms duration)

  • Shock (Non-Operating)

    4TB: 2,940 m/sq. s (300G) (2 ms duration)
    6TB, 8TB, 10TB, 12TB, 14TB, 16TB, 18TB: 2,450 m/sq. s (250G) (2 ms duration)
    20TB: 1960 m/sq. s (200G) (2ms duration)

  • Acoustics (Idle Model)

    4TB, 6TB, 8TB: 31dB
    10TB, 12TB, 14TB, 16TB, 18TB, 20TB: 20dB

Physical

Jump to...
  • Bottom Holes Type

    4TB ,6TB, 8TB: Type 2
    10TB, 12TB, 14TB, 16TB, 18TB: Type 1

  • Dimensions

    1.02 x 5.78 x 4.01" (26.1 x 147 x 101.85mm)

  • Weight

    4TB: 24.44 oz (693g)
    6TB: 24.69 oz (700g)
    8TB, 16TB, 18TB, 20TB: 25.39 oz (720g)
    10TB, 12TB: 24.34 oz (690g)
    14TB: 24.86 oz (705g)

  • UPC Codes

    4TB: 723844001209 | 6TB: 723844001193 | 10TB: 723844001100 | 8TB: 723844001186

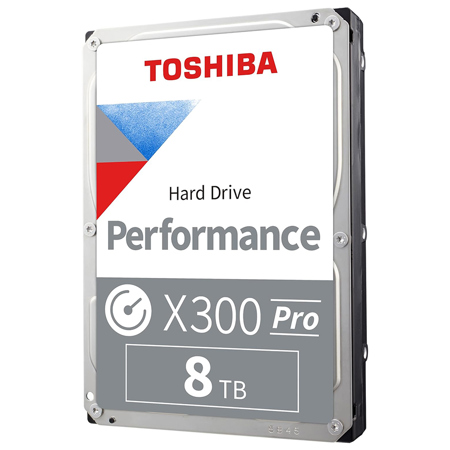

About Toshiba X300 Pro Performance SATA III 3.5" Internal Hard Drive

Capacity to Create. Built to Perform.
Take your creativity to the next level with the enhanced speed, reliability, and capacity of the Toshiba X300 Pro Performance Internal Hard Drive. Designed for the creative professional, the X300 Pro hard drive is built to support your large workload and storage needs, so you can create without limits.

Built for high-end workstations and multi-media systems, the X300 Pro can support high intensity workloads up to 300TB/yr with increased reliability of up to MTTF 1.0 million hours and room up to 20TB of storage capacity.

Optimized to handle high-end graphics and videos, the X300 Pro hard drive delivers a fast 7200 RPM rotational speed and large cache size to help shorten response time. Toshiba's cache technology helps optimize cache allocation during read/write cycles to help provide high drive performance in real time. Plus, the X300 Pro's innovative actuator designs help optimize positioning accuracy and read/write performance for quick access to data.

Applications:
• Professional desktop workstations
• High-end gaming computers
• High workload performance PC
• Multimedia design workstations

Enhanced Performance Designed for the Creative Pro
• 7,200RPM speed with large cache sizes up to 512MB
• Supports high intensity workload with up to 300 TB/year Workload Rate
• State-of-the-art actuator enables high-precision head positioning with accurate data tracking
• CMR technology delivers consistent performance and broad compatibility

Massive Storage Capacity
Impressive high storage capacity up to 20TB to accommodate your large multimedia files and expanding gaming library.

Toshiba Cache Technology
On-board cache algorithm and buffer management optimize cache allocation between read and write cycles for improved real-time drive performance.

Data Protection Technology
Ramp loading technology reduces wear to the recording head and media for improved drive reliability. Built-in shock sensors detect impact, shielding adjacent track data.

Drive Stabilization Technology
Secured motor shaft at both ends helps reduce system-induced vibrations, stabilizing the platters for improved tracking accuracy and performance during read and write operations.

Peace of Mind
High reliability with MTTF up to 1.0 million hours

Toshiba X300 Pro Performance SATA III 3.5" Internal Hard Drive Features

  • 7200 RPM speed with up to 512 MB cache size
  • Supports high intensity workload with upto 300 TB/year Workload Rate
  • State-of-the-art actuator enables high-precision head positioning with accurate data tracking
  • CMR technology delivers consistent performance and broad compatibility
  • Impressive high storage capacity up to 20TB to accommodate your large multimedia files
  • High reliability with MTTF up to 1.0 million hours

Key Features

  • 7200 RPM speed with up to 512 MB cache size
  • Supports high intensity workload with upto 300 TB/year Workload Rate
  • State-of-the-art actuator enables high-precision head positioning with accurate data tracking
  • CMR technology delivers consistent performance and broad compatibility
  • Impressive high storage capacity up to 20TB to accommodate your large multimedia files
  • High reliability with MTTF up to 1.0 million hours

What's in the box:

  • Toshiba X300 Pro Performance SATA III 3.5" Internal Hard Drive
  • Toshiba 5 Year Limited Warranty
