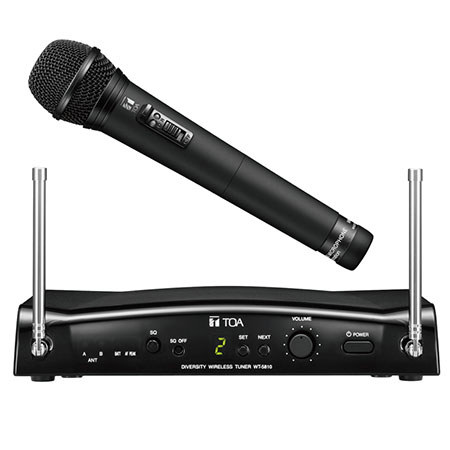

TOA Electronics WS5265 Wireless Hand-held Microphone System, Includes WM-5265 UHF Hand-held Dynamic Mic Transmitter, WT-5810 Diversity Tuner, F01 636-666MHz Frequency

SKU: TOWS5265F01 MFR: WS5265F01
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless handheld microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range, ideal for presentations and stage use.
  • This microphone system's durable build ensures long-lasting performance, making it great for events.
  • The diversity tuner minimizes signal dropouts, providing consistent sound quality for every performance.
  • With easy setup, this wireless microphone is user-friendly for both beginners and seasoned professionals.
  • Achieve professional-grade sound with a wide frequency response, capturing every nuance of your voice.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics WS5265 Specifications

  • WM-5265: Microphone Element

    Dynamic microphone unit: Unidirectional

  • WM-5265: Modulation

    Frequency modulation

  • WM-5265: Frequency Range

    636-666MHz, UHF

  • WM-5265: Selectable Channels

    64 channels (the number of channels may differ from country to country)

  • WM-5265: Power

    RF Carrier: 50 mW or less

  • WM-5265: Frequency

    Tone: 32.768 kHz

  • WM-5265: Oscillator

    PLL synthesized

  • WM-5265: Maximum Input Level

    132 dB SPL

  • WM-5265: Maximum Deviation

    +/-40 kHz

  • WM-5265: Frequency Response

    Audio: 100 Hz to 15 kHz

  • WM-5265: Dynamic Range

    95 dB or more (with WT-5800)

  • WM-5265: Battery

    WB-2000 rechargeable battery (option) or AA alkaline dry cell battery

  • WM-5265: Battery Life

    Approximately 13 hours (when the WB-2000 rechargeable battery is used)
    Approximately 10 hours (when the alkaline battery is used)

  • WM-5265: Battery Info

    Required, not included

  • WM-5265: Battery Material

    Alkaline

  • WM-5265: Battery Quantity

    1

  • WM-5265: Battery Type

    AA

  • WM-5265: Indicators

    Power/Battery lamps

  • WM-5265: Antenna

    Built-in type

  • WM-5265: Operating Temperature

    14 to 122 deg. F (-10 to 50 deg. C) except battery

  • WM-5265: Operating Humidity

    30 to 85% RH (No condensation)

  • WM-5265: Finish

    Resin coating

  • WT-5810: Power Source

    120 V AC (Supplied AC-DC adapter must be used.)

  • WT-5810: Power Consumption

    130 mA (12 V DC)

  • WT-5810: Receiving Frequency

    636-666MHz, UHF

  • WT-5810: Selectable Channel

    16 channels

  • WT-5810: Receiving System

    Double super-heterodyne

  • WT-5810: Diversity System

    Space diversity

  • WT-5810: AF Output MIC

    MIC: -60 dB, 600 Ohms, balanced, XLR-3-32 type connector
    LINE: -20 B, 600Ohms, unbalanced, phone jack

  • WT-5810: AF Mixing Input

    20 dB, 10 kOhms, unbalanced, phone jack

  • WT-5810: Antenna

    Rod antenna

  • WT-5810: Receiving Sensitivity

    Over 90 dB, S/N ratio (20dBmV input, 40 kHz deviation)

  • WT-5810: Squelch Sensitivity

    18-40 dBmV variable

  • WT-5810: Squelch System

    Using together of noise SQ, carrier SQ and tone SQ

  • WT-5810: Tone Frequency

    32.768 kHz

  • WT-5810: Indicator

    ANT A/B, Audio (peak), Battery alarm, Channel number

  • WT-5810: Channel Check

    Usable frequencies scanning

  • WT-5810: S/N Ratio

    Over 104 dB (A-weight, unbalanced output)

  • WT-5810: Harmonic Distortion

    Under 1% (typical)

  • WT-5810: Frequency Response

    100 -15000 Hz, +/-3 dB

  • WT-5810: Operating Temperature

    -10 deg. C to +50 deg. C (14 to 122 deg. F)

  • WT-5810: Finish

    Resin Black

  • Dimensions

    WM-5225 (Dia. x H): 43.6 x 231.5mm (1.71 x 9.11")
    WT-5810 (W x H x D): 206 x 40.6 x 152.7mm (8.11 x 1.59 x 6.01")

  • Weight

    WM-5225 (With battery): 6.35oz / 180g
    WT-5810: 20.81oz / 590g

About TOA Electronics WS5265

Under the trusted brand of TOA Electronics, the WS5265 Wireless Hand-held Microphone System is a high-quality, durable, and versatile audio solution. Operating within the F01 636-666MHz frequency range, this system includes the WM-5265 UHF Hand-held Dynamic Microphone Transmitter and the WT-5810 Diversity Tuner, making it an ideal choice for a wide array of applications.

The WM-5265 Wireless Microphone is a key component of this system. It employs a dynamic microphone capsule, making it suitable for diverse applications, from live performances to professional speaking engagements. With the aid of a PLL-synthesizer system, it offers 64 different operating frequencies, providing a high degree of flexibility. Its high output power ensures stable radio signal transmission, guaranteeing clear and consistent audio quality.

Complementing the microphone is the WT-5810 Wireless Tuner. This portable, space diversity 16-channel tuner operates on the UHF band, making it perfect for vocal or speech reinforcement applications. It features a compander circuit that effectively minimizes the influence of ambient noise, ensuring your voice is heard clearly, even in noisy environments.

The WT-5810 E01US Wireless Tuner is a PLL-synthesizer controlled double superheterodyne true diversity tuner. This advanced technology is designed for use in UHF wireless systems and employs a compander noise reduction circuit to further minimize the influence of ambient RF noise.

In summary, the TOA Electronics WS5265 Wireless Hand-held Microphone System is a portable, easy-to-use, and reliable solution for all your audio needs. Whether you're a professional performer or a public speaker, this system offers the flexibility and mobility to deliver your best performance.

TOA Electronics WS5265 Features

  • Includes WM-5265 UHF Hand-held Dynamic Microphone Transmitter and WT-5810 Diversity Tuner

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience crystal-clear audio with this wireless handheld microphone system, perfect for live performances.
  • Enjoy freedom of movement with a reliable wireless range, ideal for presentations and stage use.
  • This microphone system's durable build ensures long-lasting performance, making it great for events.
  • The diversity tuner minimizes signal dropouts, providing consistent sound quality for every performance.
  • With easy setup, this wireless microphone is user-friendly for both beginners and seasoned professionals.
  • Achieve professional-grade sound with a wide frequency response, capturing every nuance of your voice.

What's in the box:

  • TOA Electronics WS-5265 Hand-held Dynamic Microphone Transmitter
  • Microphone Holder W3/8 " with Stand Adapter
  • Screw Driver
  • Storage Case
  • WT-5810 Diversity Tuner
  • AC-DC Adapter
  • TOA Electronics 5 Year Limited Warranty
