TOA Electronics WS-5265 Handheld Dynamic Wireless Microphone Kit,G02: 606-636MHz
See all TOA Electronics items

TOA Electronics WS-5265 Handheld Dynamic Wireless Microphone Kit Includes WM-5265H Transmitter, WT-5810 Diversity Tuner, G02: 606-636MHz Frequency Range

SKU: TOWS5265G02

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TOA Electronics WS-5265 Specifications

  • WT-5810: Power Source

    120 V AC (Supplied AC-DC adapter must be used.)

  • WT-5810: Power Consumption

    130 mA (12 V DC)

  • WT-5810: Receiving Frequency

    G02: 606-636MHz

  • WT-5810: Selectable

    Channel 16 channels

  • WT-5810: Receiving System

    Double super-heterodyne

  • WT-5810: Diversity System

    Space diversity

  • WT-5810: AF Output

    MIC-60 dB*, 600 Ohms , balanced, XLR-3-32 type connector
    LINE -20 dB*, 600 Ohms , unbalanced, phone jack

  • WT-5810: AF Mixing Input

    -20 dB*, 10 k Ohms , unbalanced, phone jack

  • WT-5810: Antenna

    Rod antenna

  • WT-5810: Receiving Sensitivity

    Over 90 dB, S/N ratio (20 dBuV input, 40 kHz deviation)

  • WT-5810: Squelch Sensitivity

    18 - 40 dBuV variable

  • WT-5810: Squelch System

    Using together of noise SQ, carrier SQ and tone SQ

  • WT-5810: Tone Frequency

    32.768 kHz

  • WT-5810: Indicator

    ANT A/B, Audio (peak), Battery alarm, Channel number

  • WT-5810: Channel Check

    Usable frequencies scanning

  • WT-5810: S/N Ratio

    Over 104 dB (A-weight, unbalanced output)

  • WT-5810: Harmonic Distortion

    Under 1% (typical)

  • WT-5810: Frequency Response

    100 - 15000 Hz, +/-3 dB

  • WT-5810: Operating Temperature

    -10 deg. C to +50 deg. C / 14 deg. F to 122 deg. F

  • WM-5265: Microphone Element

    Dynamic microphone unit: Unidirectional

  • WM-5265: Modulation

    Frequency modulation

  • WM-5265: Frequency Range

    G02: 606-636MHz

  • WM-5265: Channel Selectable

    64 channels (the number of channels may differ from country to country)

  • WM-5265: RF Carrier Power

    50 mW or less

  • WM-5265: Tone Frequency

    32.768 kHz

  • WM-5265: Oscillator

    PLL synthesized

  • WM-5265: Maximum Input Level

    132 dB SPL

  • WM-5265: Maximum Deviation

    +/-40 kHz

  • WM-5265: Audio Frequency Response

    100 Hz - 15 kHz

  • WM-5265: Dynamic Range

    95 dB or more (with WT-5800)

  • WM-5265: Battery

    WB-2000 rechargeable battery (option) or AA alkaline dry cell battery

  • WM-5265: Battery Life

    Approx. 13 h (when the WB-2000 rechargeable battery is used)
    Approx. 10 h (when the alkaline battery is used)

  • WM-5265: Indicator

    Power/Battery lamps

  • WM-5265: Antenna

    Built-in type

  • WM-5265: Operating Temperature

    -10 deg. C to +50 deg. C (14 deg. F to 122 deg. F) (except battery)

  • WM-5265: Operating Humidity

    30 % to 85 %RH

  • Dimensions

    WT-5810: 8.11 x 1.59 x 6.01" / 206 x 40.6 x 152.7mm (excluding antenna)
    WM-5265: 1.97 x 9.02" / 50.03 x 229.10mm

  • Weight

    WT-5810: 20.81oz / 590g
    WM-5265: 0.45lbs / 0.20Kg (with battery)

About TOA Electronics WS-5265

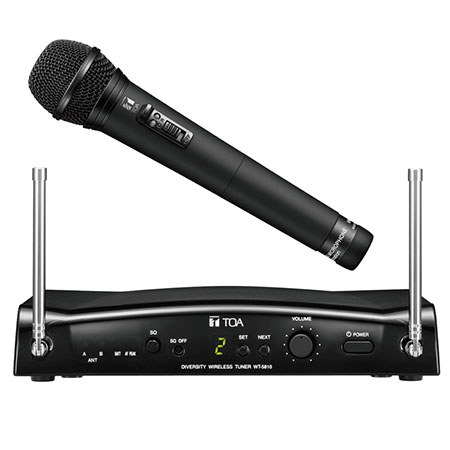

The TOA Electronics WS-5265 Handheld Dynamic Wireless Microphone Kit includes a handheld wireless microphone WM-5265 and diversity wireless tuner WT-5810. The WM-5265 wireless microphone employs a dynamic microphone capsule, has a G02: 606-636MHz Frequency Range and is suitable for any application. With the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The WT-5810 is a PLL-synthesizer controlled double super-heterodyne diversity tuner designed to be used with UHF wireless system. It employs compander noise reduction circuit to minimize the influence of ambient RF noise.

TOA Electronics WS-5265 Features

  • Dynamic mic element suitable for live vocal
  • Unidirectional (hyper-cardiod) pickup pattern
  • ON/OFF switch with tab prevents microphone from rolling
  • Single AA battery provides up to ten hours of continuous operation
  • Charging contacts on bottom of microphone barrel for compatibility with optional charging stations. Accepts optional WB-5000-2 NiMH rechargeable batteries
  • Low battery indication
  • Built-in antenna
  • Compact design for shelf-mount applications
  • Scanner function
  • Transmitter battery status display
  • 16 selectable channels
  • TOA Space Diversity reception

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Dynamic mic element suitable for live vocal
  • Unidirectional (hyper-cardiod) pickup pattern
  • Single AA battery provides up to ten hours of continuous operation
  • Low battery indication
  • Built-in antenna
  • Compact design for shelf-mount applications

What's in the box:

  • TOA Electronics WS-5265 WM-5265H Transmitter
  • WT-5810 Diversity Tuner
  • TOA Electronics 5 Year Limited Warranty
