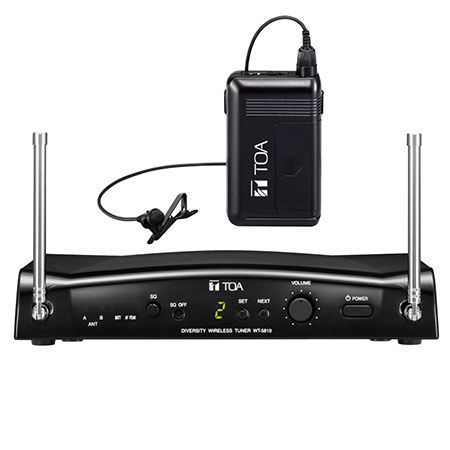

TOA Electronics WS-5325U Wireless Headset Mic System, WM-5325 UHF Body-pack Transmitter, YP-M5300 Unidirectional Lavalier Mic, WT-5810 Diversity Tuner, H01 Frequency

SKU: TOWS5325UH01 MFR: WS5325UH01
Earn VIP Reward Points

Key Features

  • Achieve crystal-clear audio with this wireless lavalier microphone system, great for interviews.
  • This wireless microphone system operates on a reliable UHF band, minimizing interference.
  • Enjoy freedom of movement with the body-pack transmitter, perfect for dynamic presentations.
  • The included unidirectional lavalier mic ensures focused sound capture, reducing background noise.
  • With up to 16 selectable channels, this wireless system adapts to various environments seamlessly.
  • The diversity tuner enhances signal stability, providing consistent audio quality for recordings.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics WS-5325U Specifications

  • WT-5810: Power Source

    120 V AC (Supplied AC-DC adapter must be used.)

  • WT-5810: Power Consumption

    130 mA (12 V DC)

  • WT-5810: Receiving Frequency

    576-606MHZ, UHF

  • WT-5810: Selectable Channel

    16 channels

  • WT-5810: Receiving System

    Double super-heterodyne

  • WT-5810: Diversity System

    Space diversity

  • WT-5810: AF Output MIC

    MIC: -60 dB, 600 Ohms, balanced, XLR-3-32 type connector
    LINE: -20 B, 600Ohms, unbalanced, phone jack

  • WT-5810: AF Mixing Input

    20 dB, 10 kOhms, unbalanced, phone jack

  • WT-5810: Antenna

    Rod antenna

  • WT-5810: Receiving Sensitivity

    Over 90 dB, S/N ratio (20dBmV input, 40 kHz deviation)

  • WT-5810: Squelch Sensitivity

    18-40 dBmV variable

  • WT-5810: Squelch System

    Using together of noise SQ, carrier SQ and tone SQ

  • WT-5810: Tone Frequency

    32.768 kHz

  • WT-5810: Indicator

    ANT A/B, Audio (peak), Battery alarm, Channel number

  • WT-5810: Channel Check

    Usable frequencies scanning

  • WT-5810: S/N Ratio

    Over 104 dB (A-weight, unbalanced output)

  • WT-5810: Harmonic Distortion

    Under 1% (typical)

  • WT-5810: Frequency Response

    100 -15000 Hz, +/-3 dB

  • WT-5810: Operating Temperature

    -10 deg. C to +50 deg. C (14 to 122 deg. F)

  • WT-5810: Finish

    Resin Black

  • WM-5325: Modulation

    Frequency modulation

  • WM-5325: Frequency Range

    576-606MHZ, UHF

  • WM-5325: Selectable Channels

    64 channels (the number of channels may differ from country to country)

  • WM-5325: Power

    RF Carrier: 50 mW or less

  • WM-5325: Frequency

    Tone: 32.768 kHz

  • WM-5325: Oscillator

    PLL synthesized

  • WM-5325: Maximum Input Level

    -14 to -29db

  • WM-5325: Maximum Deviation

    +/-40 kHz

  • WM-5325: Frequency Response

    Audio: 100 Hz to 15 kHz

  • WM-5325: Battery

    WB-2000 rechargeable battery (option) or AA alkaline dry cell battery

  • WM-5325: Battery Life

    Approximately 13 hours (when the WB-2000 rechargeable battery is used)
    Approximately 10 hours (when the alkaline battery is used)

  • WM-5325: Battery Info

    Required, not included

  • WM-5325: Battery Material

    Alkaline

  • WM-5325: Battery Quantity

    1

  • WM-5325: Battery Type

    AA

  • WM-5325: Indicators

    Power/Battery lamps

  • WM-5325: Antenna

    Built-in type

  • WM-5325: Operating Temperature

    14 to 122 deg. F (-10 to 50 deg. C) except battery

  • WM-5325: Operating Humidity

    30 to 85% RH (No condensation)

  • WM-5325: Finish

    Resin coating

  • YP-5300: Type

    Electret Condenser Type

  • YP-5300: Directivity

    Unidirectional

  • YP-5300: Sensitivity

    -63dB +/-3 dB

  • YP-5300: Frequency Response

    100Hz-12kHz

  • YP-5300: Maximum Input Level

    120dB SPL

  • YP-5300: Cord Length

    1.3m (4.26')

  • YP-5300: Terminal

    3.5mm Mini plug

  • Dimensions

    WM-5325 (W x H x D): 62 x 102.5 x 23 (2.44 x 4.03 x 0.9")
    WT-5810 (W x H x D): 206 x 40.6 x 152.7mm (8.11 x 1.59 x 6.01")

  • Weight

    WM-5325 (With battery): 3.17oz / 90g
    WT-5810: 20.81oz / 590g
    YP-5300 (Cable Included): 20g /0.7oz

About TOA Electronics WS-5325U

Are you seeking professional-grade, reliable wireless audio transmission for your live performances or broadcasts Look no further than the TOA Electronics WS-5325U Wireless Headset Microphone System. This comprehensive system, operating in the H01 576-606MHz frequency range, is designed to deliver high-quality, clear sound in a variety of settings.

The package includes the WM-5325 UHF Body-pack Transmitter, a durable and stylish device designed for use with the UHF system. With its PLL-synthesizer system, it offers 64 different operating frequencies, ensuring a high output power for stable radio signal transmission. This makes it an ideal choice for speech reinforcement applications.

Also included is the YP-M5300 Unidirectional Lavalier Microphone, a discreet, high-quality microphone that can be easily attached to a performer's clothing for hands-free operation. It employs an unidirectional electret microphone element, ensuring your voice is captured clearly and accurately, regardless of the ambient noise.

The system is completed with the WT-5810 Diversity Tuner, a portable, space diversity 16-channel wireless tuner designed for use on the UHF band. Suitable for vocal or speech reinforcement applications, it features a compander circuit to minimize the influence of ambient noise. This PLL-synthesizer controlled double superheterodyne true diversity tuner is designed to be used in UHF wireless systems, employing a compander noise reduction circuit to minimize the influence of ambient RF noise.

In summary, the TOA Electronics WS-5325U Wireless Headset Microphone System is a comprehensive solution for those seeking high-quality, reliable wireless audio transmission. Its combination of a headset microphone, body-pack transmitter, lavalier microphone, and diversity tuner ensures a clear, interference-free signal in a variety of settings.

TOA Electronics WS-5325U Features

  • Includes WM-5325 UHF Body-pack TX, YP-M5300 Unidirectional lav mic & WT-5810 Diversity Tuner

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Achieve crystal-clear audio with this wireless lavalier microphone system, great for interviews.
  • This wireless microphone system operates on a reliable UHF band, minimizing interference.
  • Enjoy freedom of movement with the body-pack transmitter, perfect for dynamic presentations.
  • The included unidirectional lavalier mic ensures focused sound capture, reducing background noise.
  • With up to 16 selectable channels, this wireless system adapts to various environments seamlessly.
  • The diversity tuner enhances signal stability, providing consistent audio quality for recordings.

What's in the box:

  • TOA Electronics WM-5325 UHF Body-pack Transmitter
  • Screw Driver
  • Storage Case
  • Neck Strap
  • WT-5810 Diversity Tuner
  • AC-DC Adapter
  • YP-M5300 Unidirectional Lavalier Microphone
  • TOA Electronics 5 Year Limited Warranty
