19% Off

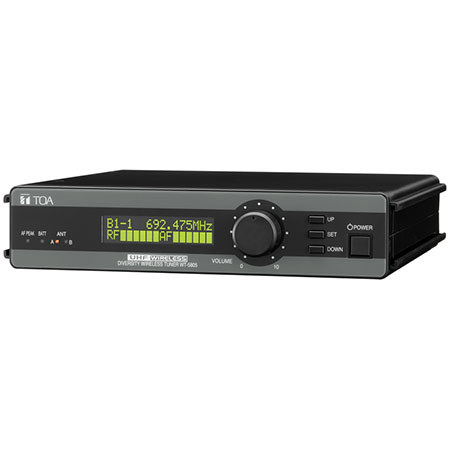

TOA Electronics WT-5805 Wireless Space Diversity Tuner, 64 Channel Selectable, 90 dB Sensitivity, H01:576-606MHz Frequency Range

SKU: TOWT5805H01U MFR: WT5805H01US
Earn VIP Reward Points

Key Features

  • Experience clear audio with this wireless tuner's exceptional 90dB sensitivity.
  • Select from 64 frequencies for interference-free sound using this wireless receiver.
  • Enjoy a wide 576-606MHz frequency range, perfect for professional audio setups.
  • This wireless system's space diversity ensures stable signal and reduces dropouts.
  • Easily monitor audio levels with the built-in 6-step audio peak indicator.
  • Scan for usable frequencies, optimizing your wireless microphone setup quickly.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics WT-5805 Specifications

  • Power Source

    AC mains (supplied AC adapter must be used)

  • Power Consumption

    200 mA (12 V DC)

  • Receiving Frequency

    H01:576-606MHz

  • Channel Selectable

    64 selectable frequencies

  • Receiving System

    Double super-heterodyne

  • Diversity System

    Space diversity

  • Mixing Output

    MIC/LINE (selectable): -60 dB (MIC)/-20 dB (LINE), 600 Ohms
    phone jack (unbalanced), 600 Ohms XLR-3-32 type connector (balanced)

  • Mixing Input

    -20 dB, 10 kOhms, unbalanced, phone jack

  • Antenna Input

    75 Ohms, BNC (phantom powering for antenna), 9 V DC, 30 mA (max)

  • Receiving Sensitivity

    90 dB or more, Signal to Noise ratio (20 dBuV input, 40 kHz deviation)

  • Squelch Sensitivity

    16 - 40 dBuV variable

  • Squelch System

    Using together of noise SQ, carrier SQ and tone SQ

  • Tone Frequency

    32.768 kHz

  • Indicator

    Audio (6 steps), RF (6 steps), ANT A/B, Audio (peak), Battery alarm

  • Channel Check

    Usable frequencies scanning

  • Signal to Noise Ratio

    110 dB or more (A-weight, unbalanced output)

  • Harmonic Distortion

    1 % or less (typical)

  • Frequency Response

    100 Hz - 15 kHz, +/-3 dB

  • Operating Temperature

    -10 deg. C to +50 deg. C (14 deg. F to 122 deg. F)

  • Operating Humidity

    30 % to 85 %RH (no condensation)

  • Dimensions (W x H x D)

    8.26 x 1.73 x 8.07" / 210 x 44 x 205.1mm (8.27" x 1.73" x 8.07")

  • Weight

    24.69oz / 700g

About TOA Electronics WT-5805

How can you elevate your professional audio and video setup The TOA Electronics WT-5805 Wireless Space Diversity Tuner is the answer for those seeking a high-tech, advanced solution to wireless signal reception. This sophisticated tuner is engineered with a PLL-synthesizer controlled double superheterodyne system, ensuring precise frequency stability and clear signal acquisition within the H01: 576-606MHz frequency range.

With its state-of-the-art space diversity technology, the WT-5805 tuner boasts an impressive 90 dB sensitivity, allowing it to adeptly pick up even the weakest of signals while significantly reducing interference. This feature is paramount for professionals who require uninterrupted, high-quality audio and video transmission.

The tuner's 64 channel selectability offers unparalleled flexibility, enabling users to find the most interference-free frequencies for their specific location and application. This level of customization is essential for those operating in environments with a high density of wireless activity, where finding a clear channel can be challenging.

In addition, the WT-5805 is equipped with an innovative compander noise reduction circuit. This advanced circuitry works tirelessly to minimize the impact of ambient RF noise, ensuring that the audio quality remains crisp and clear, free from the distractions of the surrounding environment.

Designed with the professional in mind, the WT-5805 Wireless Space Diversity Tuner is an essential component for any serious audio and video setup. Its robust build and innovative features make it a standout choice for those who cannot afford to compromise on signal clarity and reliability. Whether you're setting up for a live event, broadcast, or recording session, the WT-5805 will deliver the performance and dependability that professionals demand.

TOA Electronics WT-5805 Features

  • Same core features as WT-5800
  • TOA Space Diversity reception

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Experience clear audio with this wireless tuner's exceptional 90dB sensitivity.
  • Select from 64 frequencies for interference-free sound using this wireless receiver.
  • Enjoy a wide 576-606MHz frequency range, perfect for professional audio setups.
  • This wireless system's space diversity ensures stable signal and reduces dropouts.
  • Easily monitor audio levels with the built-in 6-step audio peak indicator.
  • Scan for usable frequencies, optimizing your wireless microphone setup quickly.

What's in the box:

  • TOA Electronics WT-5805 Wireless Space Diversity Tuner
  • AC adapter
  • 2x Whip Antenna
  • 4x Rubber Foot
  • TOA Electronics 5 Year Limited Warranty
