19% Off

TOA Electronics WT-5810 UHF Space Diversity Wireless Tuner, 16 Channel Selectable, G02: 606-636MHz Receiving Frequency

SKU: TOWT5810G02U MFR: WT5810G02US
Earn VIP Reward Points

Key Features

  • Experience reliable wireless audio with the TOA WT-5810 wireless tuner.
  • Enjoy clear sound quality with a wide 100-15000 Hz frequency response.
  • Minimize interruptions with space diversity technology for stable reception.
  • Easily select from 16 channels to find the clearest wireless frequency.
  • Achieve low latency for seamless audio syncing during live performances.
  • This durable wireless microphone receiver operates reliably from 14°F to 122°F.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TOA Electronics WT-5810 Specifications

  • Power Source

    120 V AC, 60 Hz(Supplied AC-DC adapter must be used.)

  • Power Consumption

    130 mA (12 V DC)

  • Receiving Frequency

    G02: 606-636MHz, UHF

  • Selectable Channel

    16 channels

  • Receiving System

    Double super-heterodyne

  • Diversity System

    Space diversity

  • AF Output

    MIC-60 dB, 600 Ohms, balanced, XLR-3-32 type connector
    LINE -20 dB, 600 Ohms, unbalanced, phone jack

  • AF Mixing Input

    -20 dB, 10 kOhms, unbalanced, phone jack

  • Antenna

    Whip antenna

  • Receiving Sensitivity

    Over 90 dB, S/N ratio (20 dBuV input, 40 kHz deviation)

  • Squelch Sensitivity

    16 - 40 dBuV variable

  • Squelch System

    Using together of noise SQ, carrier SQ and tone SQ

  • Tone Frequency

    32.768 kHz

  • Indicator

    ANT A/B, Audio (peak), Battery alarm, Channel number

  • Channel Check

    Usable frequencies scanning

  • S/N Ratio

    Over 104 dB (A-weight, unbalanced output)

  • Harmonic Distortion

    Under 1% (typical)

  • Frequency Response

    100 - 15000 Hz, +/-3 dB

  • Operating Humidity

    30 % to 85 %RH

  • Operating Temperature

    -10 deg. C to +50 deg. C / 14 deg. F to 122 deg. F

  • Dimensions

    8.11 x 1.59 x 6.01" / 206 x 40.6 x 152.7mm (excluding antenna)

  • Weight

    20.81oz / 590g

About TOA Electronics WT-5810

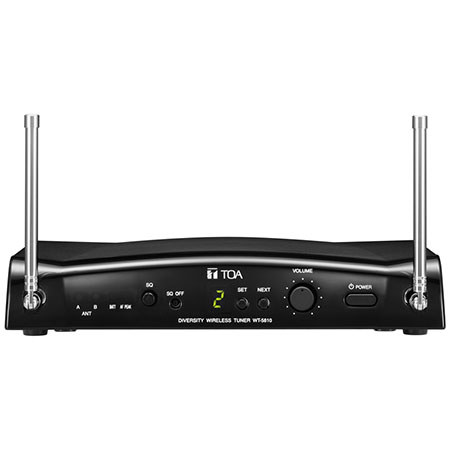

Discover the advanced capabilities of the TOA Electronics WT-5810 UHF Space Diversity Wireless Tuner. This high-quality, durable tuner is a PLL-synthesizer controlled double superheterodyne diversity tuner, specifically designed to optimize your UHF wireless system. With its unique space diversity feature, it can receive signals from multiple antennas, ensuring a more stable and reliable signal, even in challenging environments.

The WT-5810 operates within a receiving frequency range of 606-636MHz, making it an ideal choice for a wide array of applications, including wireless microphones, in-ear monitors, and other professional audio equipment. This broad frequency range enhances its versatility, allowing it to adapt to various audio setups and requirements.

Equipped with a compander noise reduction circuit, this compact wireless tuner effectively minimizes the impact of ambient RF noise, delivering clear, high-quality sound. Plus, with its 16-channel selectability, you can easily set it to different frequencies to avoid interference with other wireless devices.

Designed by TOA Electronics, a renowned name in professional audio equipment, the user-friendly WT-5810 UHF Space Diversity Wireless Tuner is a testament to the company's commitment to delivering superior sound quality and performance. Experience the difference with this advanced, feature-packed wireless tuner.

TOA Electronics WT-5810 Features

  • Compact design for shelf-mount applications
  • Scanner function
  • Transmitter battery status display
  • 16 selectable channels
  • TOA Space Diversity reception
  • Front panel: Built-in antennas
  • Front panel: Output volume control
  • Front panel: Power switch
  • Front panel: Channel display and adjust
  • Front panel: Squelch adjust and bypass
  • Front panel: LEDs, Antenna A/B, Battery, Peak and Power
  • Rear panel: Outputs: XLR-M (mic) and 1/4" phone jack (line)
  • Rear panel: Mix-In 1/4" jack (line)

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Experience reliable wireless audio with the TOA WT-5810 wireless tuner.
  • Enjoy clear sound quality with a wide 100-15000 Hz frequency response.
  • Minimize interruptions with space diversity technology for stable reception.
  • Easily select from 16 channels to find the clearest wireless frequency.
  • Achieve low latency for seamless audio syncing during live performances.
  • This durable wireless microphone receiver operates reliably from 14°F to 122°F.

What's in the box:

  • TOA Electronics WT-5810 UHF Space Diversity Wireless Tuner
  • AC Adapter
  • TOA Electronics 5 Year Limited Warranty
