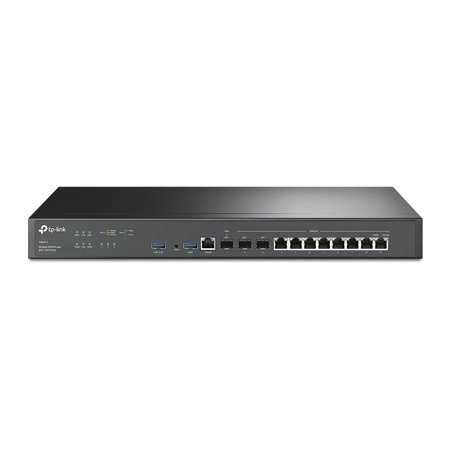

TP-Link Omada ER8411 VPN Gateway with 10G Ports

SKU: TPLER8411 MFR: ER8411
Earn VIP Reward Points

Key Features

  • Experience lightning-fast internet with 10G SFP+ ports, ensuring a reliable connection for all your devices.
  • Effortlessly set up your network with the intuitive Omada SDN platform, simplifying management for businesses.
  • Safeguard your data with robust VPN Gateway features, offering strong security for remote access and privacy.
  • Achieve broad coverage and seamless connectivity across your entire network with advanced routing capabilities.
  • Optimize bandwidth with intelligent load balancing, ensuring smooth performance for critical applications.
  • Benefit from comprehensive parental controls and filtering options, creating a safe online environment.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

TP-Link ER8411 Specifications

Security

Security

Jump to...
  • DPI

    Deep Packet Inspection
    Support 2421 type Applications

  • IDS/IPS

    Signature-based IPS/IDS threat detection

  • Access Control

    Source/Destination IP Based ACL
    Stateful ACL
    IPv4/IPv6 ACL
    National Based ACL
    FQDN

  • DNS Proxy

    DNSSEC, DoH, DoT, and DNS Override

  • Filtering

    WEB Group Filtering
    URL Categories and URLs Filtering
    Web Security

  • ARP Inspection

    Sending GARP Packets
    ARP Scanning
    IP-MAC Binding
    ARP Detection

  • Attack Defense

    TCP/UDP/ICMP Flood Defense
    Block TCP Scan (Stealth FIN/Xmas/Null)
    Block Ping from WAN

Hardware

Jump to...
  • Enclosure

    Steel

  • Standards and Protocols

    LLDP

  • Interface

    2x 10GE SFP+ Ports (1x WAN, 1x WAN/LAN)
    1x 1GE SFP WAN/LAN Ports
    8x 1GE RJ45 WAN/LAN Ports
    1x RJ45 Console Port
    2x USB 3.0 Ports (One supports LTE backup with LTE dongle)

  • Network Media

    10BASE-T: UTP category 3, 4, 5 cable (Max 328.08' (100m))
    EIA/TIA-568 100 Ohm STP (Max 328.08' (100m))
    100BASE-TX: UTP category 5, 5e cable (Max 328.08' (100m))
    EIA/TIA-568 100 Ohm STP (Max 328.08' (100m))
    1000BASE-T: UTP category 5e, 6 cable (Max 328.08' (100m))

  • Fan Quantity

    2x

  • Button

    Reset Button

  • Power Supply

    Redundant Dual Power Supplies (100-240 VAC, 50/60 Hz)

  • Flash

    4MB SPI NOR + 256 MB NAND

  • RAM

    4GB DDR4

  • LED

    PWR, SYS, WAN, LAN, USB, FAN

  • Protection

    4 kV surge protection

  • Mounting

    Rack Mountable

  • Max. Power Consumption

    26.36 W (with USB 3.0 connected)
    19.12 W (without USB 3.0 connected)

Performance

Jump to...
  • Concurrent Session

    2300000

  • New Sessions /Second

    20000

  • NAT (Static IP)

    Upload: 9445.82 Mbps
    Download: 9449.26 Mbps

  • NAT(DHCP)

    Upload: 9426.83 Mbps
    Download: 9426.20 Mbps

  • NAT(PPPoE)

    Upload: 9413.96 Mbps
    Download: 9102.01 Mbps

  • NAT (L2TP)

    Upload: 9064.66 Mbps
    Download: 8587.57 Mbps

  • NAT (PPTP)

    Upload: 8712.11 Mbps
    Download: 8505.61 Mbps

  • 1,518 Byte Packet forwarding rate

    Upload: 820,982 pps
    Download: 820,982 pps

  • IPsec VPN Throughput

    ESP-SHA1-AES256: 3099.4 Mbps
    ESP-SHA256-AES256: 2928.4 Mbps
    ESP-SHA384-AES256: 2935.7 Mbps
    ESP-SHA512-AES256: 2878 Mbps

  • GRE

    Unencrypted: 8437 Mbps
    Encrypted: 2775 Mbps

  • WireGuard VPN

    1411 Mbps

  • OpenVPN

    1043 Mbps

  • L2TP VPN Throughput

    Unencrypted: 10497 Mbp
    Encrypted: 3178.5 Mbps

  • DPI Throughput

    TCP: 9067 Mbps
    UDP: 5873 Mbps

  • 64 Byte Packet Forwarding Rate

    Upload: 2,109,375 pps
    Download: 2,011,719 pps

  • SSL VPN Throughput

    1006 Mbps

  • IPS Throughput

    TCP: 9388 Mbps
    UDP: 7538 Mbps

Basic Functions

Jump to...
  • LAN DNS

    Yes

  • WAN Connection Type

    Static/Dynamic IP
    PPPoE
    PPTP
    L2TP
    6 to 4 Tunnel
    Pass-Through
    Mobile Broadband: 4G/3G modem for backup via USB port

  • MAC Clone

    Modify WAN/LAN MAC Address

  • DHCP

    DHCP Server/Client
    DHCP Address Reservation
    Multi-net DHCP
    Multi-IP Interfaces
    WAN DHCP 60

  • IPv6

    WAN Connection

  • VLAN

    802.1Q VLAN

  • IPTV

    IGMP v2/v3 Proxy

Advanced Features

Jump to...
  • Advanced Routing

    Static Routing
    Policy Routing
    RIP
    OSPF

  • Bandwidth Control

    IP/Port-based Bandwidth Control
    Guarantee & Limited Bandwidth

  • Load Balance

    Intelligent Load Balance
    Application Optimized Routing
    Link Backup (Timing, Failover)
    Online Detection

  • NAT

    One-to-One NAT
    Multi-Net NAT
    Port Forwarding
    Port Triggering
    NAT-DMZ
    FTP/H.323/SIP/IPSec/PPTP ALG
    UPnP
    Disable NAT

  • Session Limit

    IP-based Session Limit

  • GRE

    Yes (Only in Standalone Mode)

  • SD-WAN

    Yes (Only in Controller Mode)

  • SSL VPN

    SSL VPN Server
    500 SSL VPN Tunnels

  • IPsec VPN

    300 IPSec VPN Tunnels
    LAN-to-LAN, Client-to-LAN
    Main, Aggressive Negotiation Mode
    DES, 3DES, SHA1, SHA256, SHA384, SHA512, AES128, AES192, AES256 Encryption Algorithm
    IKE v1/v2
    MD5, SHA1 Authentication Algorithm
    NAT Traversal (NAT-T)
    Dead Peer Detection (DPD)
    Perfect Forward Secrecy (PFS)

  • PPTP VPN

    PPTP VPN Server
    PPTP VPN Client (32)
    300 Tunnels (Shared with L2TP)
    PPTP with MPPE Encryption

  • L2TP VPN

    L2TP VPN Server
    L2TP VPN Client (32)
    300 Tunnels (Shared with PPTP)
    L2TP over IPSec

  • OpenVPN

    OpenVPN Server
    OpenVPN Client (10)
    110 OpenVPN Tunnels

  • WireGuard VPN

    Yes

Authentication

Jump to...
  • Web Authentication

    No Authentication
    Simple Password
    Hotspot(Local User / Voucher / SMS / Radius
    External Radius Sever
    External Portal Sever

Management Features

Jump to...
  • Omada App

    Yes. Requiring the use of an Omada Controller

  • Centralized Management

    Omada Hardware Controller
    Omada Software Controller
    Omada Central (Cloud-Based)

  • Cloud Access

    Yes. Requiring the use of an Omada Controller

  • Service

    Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

  • Maintenance

    Web Management Interface
    Remote Management
    Export & Import Configuration
    SNMP v1/v2c/v3
    Diagnostics (Ping & Traceroute)
    NTP Synchronize
    Port Mirroring
    Syslog Support

  • Management Features

    Automatic Device Discovery
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule
    Captive Portal Configuration
    ZTP (Zero-Touch Provisioning)

General

Jump to...
  • System Requirements

    Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux

  • Certification

    CE, FCC, RoHS

  • Environment

    Operating Temperature: 32 to 104 Degree F (0 to 40 Degree C)
    Storage Temperature: -40 to 158 Degree F (-40 to 70 Degree C)
    Operating Humidity: 10-90% RH non-condensing
    Storage Humidity: 5-90% RH non-condensing

  • Country of Origin

    Vietnam

  • Dimensions (W x D x H)

    17.3 x 8.7 x 1.7" (440 x 220 x 44mm)

  • UPC Code

    840030703300

About TP-Link ER8411

High-Capacity Performance with Quad-Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.

Maximize the 10G Broadband with Omada Enterprise Gateway
Maximized 10G Broadband with the Omada Enterprise Gateway. Build your lightning-fast network with Omada ER8411 - an enterprise VPN gateway with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.

Easily Build a Whole 10G Multi-gigabit Network

10x WAN Ports & One USB WAN for Mobile Broadband
• Load Balancing up to 10x WAN Ports
• 2x WAN Ports up to 10G
• 1x USB 3.0 Port for LTE WAN Backup

High-Security and High-Performance VPN
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GREDelta /SSL VPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study in distributed environments.

Smart Connectivity & Intelligent Protection Optimize Your Network with Ease

Intelligent DPI & Content Filtering
DPI delivers precise application identification and intelligent traffic control to keep your network at peak performance, and Content Filtering offers flexible category- and time-based rules, simplifying internet management and facilitating the enforcement of policies for employees or families.

SD-WAN for Multi-Site Connectivity
Connect branch offices to headquarters in just a few clicks-no complex VPN setup required. Centralized management delivers reliable site-to-site connectivity and seamless scalability as the network grows.

Always-On DoS/DDoS Protection
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

Empowering Businesses with Reliable Omada SDN Solutions
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

TP-Link ER8411 Features

  • Quad-Core 2.2 GHz CPU
  • 2x 10G SFP+ Slots (1x WAN, 1x WAN/LAN) & 9x Gigabit Ports (1x SFP WAN/LAN, 8 x RJ45 WAN/LAN)
  • 2x USB 3.0 Ports (One Supports LTE Backup with LTE Dongle), 1x RJ45 Console Port
  • Load Balancing on up to 10 WAN Ports
  • 1 + 1 Redundant Power Supply
  • IPSec/PPTP/L2TP/OpenVPN/GRE/WireGuard/SSL VPN
  • DPI, IPS/IDS, DoS/DDoS Protection, IP/MAC/URL/Content Filtering
  • SD-WAN for Multi-Site Connectivity
  • Centralized Cloud Management via Omada App or Web

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience lightning-fast internet with 10G SFP+ ports, ensuring a reliable connection for all your devices.
  • Effortlessly set up your network with the intuitive Omada SDN platform, simplifying management for businesses.
  • Safeguard your data with robust VPN Gateway features, offering strong security for remote access and privacy.
  • Achieve broad coverage and seamless connectivity across your entire network with advanced routing capabilities.
  • Optimize bandwidth with intelligent load balancing, ensuring smooth performance for critical applications.
  • Benefit from comprehensive parental controls and filtering options, creating a safe online environment.

What's in the box:

  • TP-Link Omada ER8411 VPN Gateway with 10G Ports
  • Power Cord
  • RJ45 Console Cable
  • Rackmount Set
  • Mounting Hardware
  • TP-Link 5 Year Limited Warranty
