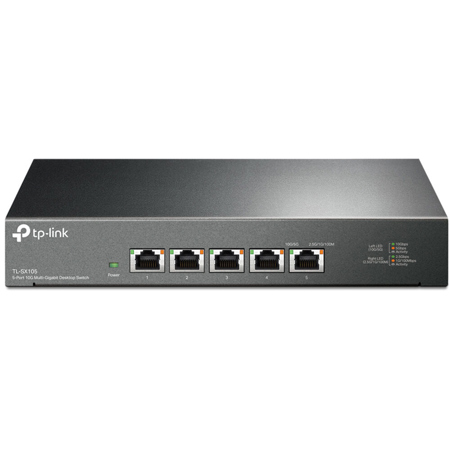

TP-Link TL-SX105 5-Port 10G Desktop/Wall-Mount Unmanaged Ethernet Switch

SKU: TPLSX105

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TP-Link TL-SX105 Specifications

Hardware

Hardware

Jump to...
  • Standards and Protocols

    IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz

  • Interface

    5x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX

  • Fan Quantity

    Fanless

  • External Power Supply

    External Power Adapter (Output: 12 VDC / 2.0 A)

  • LED Indicator

    System Power: 1
    Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port

  • Max Power Consumption

    21.4 W

Performance

Jump to...
  • Switching Capacity

    100 Gbps

  • Packet Forwarding Rate

    74.4 Mpps

  • MAC Address Table

    32 K

  • Packet Buffer Memory

    2 Mb

  • Jumbo Frame

    10 KB

Software Features

Jump to...
  • Advanced Features

    802.3X Flow Control
    802.1p/DSCP QoS

  • Transfer Method

    Store and Forward

  • Certification

    CE, FCC, RoHS

  • Environment

    Operating Temperature: 32-104 Degree F (0-40 Degree C)
    Storage Temperature: -40-158 Degree F (-40-70 Degree C)
    Operating Humidity: 10-90% RH non-condensing
    Storage Humidity: 5-90% RH non-condensing

Physical

Jump to...
  • Dimensions (W x D x H)

    8.9 x 5.2 x 1.4" (226 x 131 x 35mm)

  • UPC Code

    845973088057

About TP-Link TL-SX105

Are you seeking to unlock the highest performance of 10G/Multi-Gig bandwidth and devices Look no further than the TL-SX105, our flagship 10G product. This 5-port 10G desktop switch is designed to provide up to 100 Gbps of switching capacity, making it a powerful addition to your network setup.

The TL-SX105 features auto-negotiation 5-speed 10G connections that intelligently sense link speeds and adjust for compatibility and optimal performance. This ensures seamless connectivity for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 10G WiFi 6 AP, 8K video, desktop, and more.

Ready to upgrade your network to 10G The TL-SX105 offers reliable, lightning-fast connections and the lowest possible latency, making it ideal for gaming, as well as small office and home office use. Say goodbye to laggy LAN parties and enjoy unparalleled speed and smooth gaming experiences.

The TL-SX105 is also perfect for home entertainment. Enjoy fun game time and 8K videos with friends and family, without ever worrying about buffering. Moreover, it's an excellent choice for small and home offices, offering lightning-fast connections to workstations and WiFi 6 access points.

The TL-SX105 is designed for silent operation with an industry-leading fanless design. Its durable metal casing, desktop/wall-mounting design, and professional heat dissipation design make it suitable for various environments.

Setting up the TL-SX105 is a breeze with its plug-and-play design, eliminating the need for a technician. Auto MDI/MDIX removes the need for crossover cables. The versatile mounting system allows for flexible deployment options, whether on a desktop or mounted to a wall.

The TL-SX105 is designed to integrate seamlessly into existing gigabit Ethernet network infrastructures, guaranteeing speeds 5x faster using standard Cat5e Ethernet cables. There's no need for Cat6 wiring. With Cat6a or higher rated cables, 10G connections can be built up to 100 meters (328 feet).

In summary, the TL-SX105 5-Port 10G Desktop/Wall-Mount Unmanaged Ethernet Switch is a robust and efficient solution for those looking to enhance their network performance and connectivity.

TP-Link TL-SX105 Features

  • Five 10 Gbps Ports: 5 x 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity
  • Lightning-Fast Connections: Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more
  • Ideal for Various Scenarios: Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations
  • Optimal 5-Speed Connections: Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance
  • Silent Operation: The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business
  • Durable Metal Casing: Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments
  • Plug and Play: Allows for easy deployment without the need for a technician

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • High-performance 5-port 10G desktop switch with up to 100 Gbps switching capacity
  • Auto-negotiation 5-speed 10G connections for optimal device performance
  • Ideal for gaming, small office and home office use with low-latency, high-speed connections
  • Seamless integration into existing gigabit Ethernet network infrastructures
  • Silent operation with industry-leading fanless design and durable metal casing
  • Easy setup with plug-and-play design and flexible desktop or wall-mounting options

What's in the box:

  • TP-Link TL-SX105 5-Port 10G Desktop/Wall-Mount Unmanaged Ethernet Switch
  • Power Cord
  • Rubber Feet
  • Installation Guide
  • TP-Link Lifetime Limited Warranty
