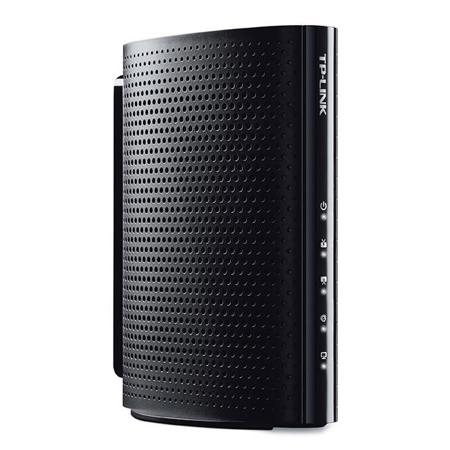

TP-Link TC-7610 DOCSIS 3.0 Cable Modem
See all TP-Link items

TP-Link TC-7610 DOCSIS 3.0 Cable Modem

SKU: TPLTC7610

This item is no longer available.

Recommended Alternatives

TP-Link TL-SG1008D: Picture 1 regular
TP-Link TL-SG1008D 8-Port 10/100/1000M Gigabit Switch
$34.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Windows 7 Pro compatible?MEYNARDO A : It's actually compatible with any operating system as long as your internet provider supports the modem. I am on time warner/spectrum with the 100mps plan and it works great.AARON H : Yes.

Reviews about this item

Review Summary

2015-12-25T10:18:03

Rated 5 out of 5

No more cable box rentals

It's great and easy to set up.

Terrell H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

TP-Link TC-7610 DOCSIS 3.0 Cable Modem Specifications

  • Downstream

    Channel Bonding: Up to 8
    Channel Width: 48 MHz (8 channels) / 6 MHz (single channel)
    Modulation: 64 QAM / 256 QAM
    Symbol Rate: 5.057 Msym/s (64 QAM) / 5.361 Msym/s(256 QAM)
    Maximum Data Rate: Up to 343 Mbps
    Frequency Range: 108 to 1002 MHz (edge to edge)

  • Upstream

    Channel Bonding: Up to 4
    Channel Width: 200KHz / 400KHz / 800KHz / 1.6MHz / 3.2MHz / 6.4MHz
    Modulation: QPSK, 8/ 16/ 32/ 64/ 128 QAM
    Symbol Rate: 160 / 320 / 640 / 1280 / 2560 / 5120 Ksym/s
    Maximum Data Rate: Up to 143Mbps
    Frequency Range: 5 to 42MHz (edge to edge)

  • Network Function

    IP Stack: Supports IPv4 and IPv6 dual stack
    DHCP: DHCP Client
    VPN Passthrough: PPTP, L2TP, IPSec
    Muticast: Support IGMP v1/v2/v3

  • Certification

    FCC, UL
    Cablelabs
    RoHS

  • Operating System

    Windows 8/Windows 7/ Windows Vista, Service Pack 1 or later/ Windows XP, Service Pack 2 or later/ Mac 10.4 or later (Ethernet Connection Only) UNIX Linux

  • Protocol Support

    Network: IP, ICMP, ARP
    Transport: TCP, UDP
    Application: SNMP (v1, 2c and 3), TFTP,DHCP, ToD

  • Power Supply

    12VDC/1A

  • Environment

    Operating Temperature: 32 - 104°F (0 - 40°C)
    Storage Temperature: -40 - 58°F (-40 - 70°C)
    Operating Humidity: 10% - 90% Non Condensing
    Storage Humidity: 5% - 90% Non Condensing

  • Interface

    1 F-Connector (female 75)
    1 10/100/1000 Mbps Ethernet Interface (RJ45)
    1 Power Jack

  • Button

    1 Reset Button

  • Dimensions

    5.6 x 4.5 x 2.3" (141.5 x 115.5 x 57.9mm)

  • UPC Code

    845973091712

About TP-Link TC-7610 DOCSIS 3.0 Cable Modem

FEATURED REVIEWS

No more cable box rentals

By Terrell H.

It's great and easy to set up.

Own Your Cable Modem - TP-Link TC-7610 3.0 Cable Modem

Eliminate monthly rental fees
Owning your modem saves you the rental fees charged by many Internet Service Providers. In fact, purchasing your own cable modem typically costs less than a year's worth of monthly rental fees.

• Compatible with major cable ISPs: XFINITY, Time Warner Cable, Cablevision
• Eliminate monthly rental fees
• CableLabs Certified DOCSIS 3.0 backwards compatible to DOCSIS 1.0, 1.1 and 2.0 provides users comprehensive network compatibility
• Channel bonding of up to 8 downstream channels and 4 upstream channels provide data rates up to 343 Mbps for downstream, and 143 Mbps for upstream
• Gigabit port ensures ultimate fast transfer speeds
• IPv4 and IPv6 dual stack
• Well-designed LEDs clearly display device and network status

DOCSIS 3.0 for Faster, Future-Proof Internet
The TC-7610's CableLabs-certified DOCSIS 3.0 technology delivers speeds 8x faster than DOCSIS 2.0. The modem also features innovative 8x4 channel bonding for even faster throughput.
• 8 Downstream channels
• 4 Upstream channels

Stream and Game Without Slowing Down
With 343Mbps download and 143 Mbps upload speeds, as well as a lightning-fast Gigabit Ethernet port, the TC-7610 lets you enjoy lag-free online gaming and HD streaming.

Quick, Easy Setup
• Connect the coaxial cable to the modem
• Connect your computer or router to the modem using an Ethernet cable
• Call your ISP or service provider self-activation process to activate the modem

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • TP-Link TC-7610 DOCSIS 3.0 Cable Modem
  • Ethernet Cable
  • Power Adapter
  • Quick Installation Guide
  • TP-Link 1 Year Limited Warranty
