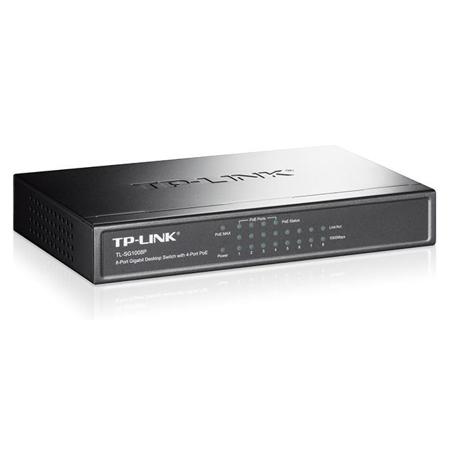

TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE

TL-SG1008P is an 8 10/100/1000Mpbs ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af complaint Powered Devices(PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Camerasot iPhones, etc.

• Supports PoE IEEE 802.3af compliant PDs
• Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
• 8K entry MAC address table of the TL-SG1008P with auto-learning and auto-aging
• LED indicators for monitoring power, link, activity and speed
• External power adapter supply
• 8 10/100/1000Mbps RJ45 ports
• With four PoE ports, transfers data and power on one single cable
• Requires no configuration and installation

Power Over Ethernet
4 of 8 auto negotiation RJ45 ports (1 port to port 4) of the switch support power over Ethernet (PoE)Functions. These PoE ports can automatically detect and supply power with those IEEE 802.3af complaint powered devices(PDs).

• IEEE802.a3f standard
• Supports PoE power up to 15.4W for each PoE port
• Supports PoE power up to 53W for all PoE ports
• Supports priority function to protect the system when the system power is overloaded.

High Performance
• Auto -MDI/MDIX
• Auto-negotiation
• Store and forward
• IEEE 802.3x flow control for Full -duplex mode
• Backpressure for Half duplex mode
• 8k MAC address auto- learning and auto- aging

Port Priority Function
Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w and Port3 will use 10w and no power will be supplied to Port 4.

Easy To Use
TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.

• Plug and play design
• Fanless design

Overload Arrangement
TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

What This Product Does
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

How This Product Works
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
