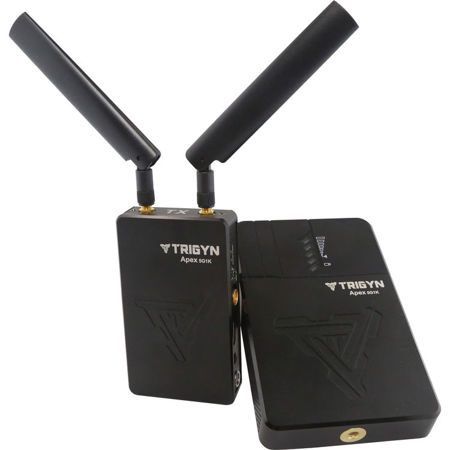

TRIGYN APEX 5G1K Long-Range Wireless Video Transmission Kit, Includes 2x Antennas and ABS Protection Case

SKU: TRIAPEX5G1K MFR: APEX 5G1K
Earn VIP Reward Points

Key Features

  • Experience reliable video transmission with this long-range wireless system up to 1000'.
  • Enjoy high resolution, uncompressed wireless video with low latency for seamless monitoring.
  • The APEX 5G1K supports multicasting to up to 4 receivers, ideal for larger production crews.
  • Easy setup with plug-and-play functionality; includes all necessary cables and accessories.
  • Use the included articulating arm and hot-shoe adapter for versatile mounting options.
  • Rugged ABS case protects your wireless video transmitter and receiver during transport.
See More Product Details
Special Order?Estimated to Ship: 09/13/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Amin F : Quality, audio out, build.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

TRIGYN APEX 5G1K Kit Specifications

Transmitter

Transmitter

Jump to...
  • 3G-SDI & HDMI

    In: SDI (BNC) & HDMI (Type A)

  • Video Resolution

    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080psf: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.4/50
    480p: 59.94/576p50 (HDMI Only)
    480i: NTSC
    576i: PAL

  • Audio Resolution

    Embedded 48kHz 24-bit PCM, First

  • Multicasting

    Pair up to 4Rx

  • Compression

    No Compression

  • Encryption

    AES-128 bit

  • Color Sampling

    YCbCr: 4:2:2 10-bit

  • RF Power

    18dbm

  • Antenna

    2 External 5GHz Omni-directional RP-SMA 5dbi

  • Frequency

    Non-DFS ISM 5GHz

  • Bandwidth

    40MHz per channel

  • Modulation

    OFDM 16-QAM

  • Line of Straight Range

    Stable transmission with 500' (150m) / Connecting distance Up to 1000' (300m)

  • Power Consumption

    <6.5W

  • Power Input

    LEMO-4-pin to DTap male cable

  • DC Input Voltage

    7-36V

  • Battery Adapter

    Pre-Installed Sony F970 Compatible

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Protection & Certification

    Plug-n-play safe +/- 8KV ESD Protection
    FCC CE certified

  • Indicator

    Power: 1 Green LED for power
    Video Status: 1 Yellow LED for video
    Power Switch: On/Off

  • Enclosure Material

    Milled Aluminum

  • Mounting Accessories

    One 1/4"-20 screw hole
    One articulating arm
    One hot-shoe adapter

Receiver

Jump to...
  • 3G-SDI & HDMI

    Out: SDI (BNC) & HDMI (Type A)

  • Video Resolution

    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080psf: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.4/50
    480p: 59.94/576p50 (HDMI Only)
    480i: NTSC
    576i: PAL

  • Audio Resolution

    Embedded 48kHz 24-bit PCM, First

  • Multicasting

    Pair up to 4Rx

  • Compression

    No Compression

  • Color Sampling

    YCbCr: 4:2:2 10-bit

  • Sensitivity

    -75dbm

  • Antenna

    5 Internal Antenna

  • Frequency

    Non-DFS ISM 5GHz

  • Bandwidth

    40MHz per channel

  • Modulation

    OFDM 16-QAM

  • Line of Straight Range

    Stable transmission with 500' (150m) / Connecting distance Up to 1000' (300m)

  • Power Consumption

    <7.5W

  • Power Input

    LEMO-4-pin to DTap male cable

  • DC Input Voltage

    7-36V

  • Battery Adapter

    Pre-Installed Sony F970 Compatible

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Protection & Certification

    Plug-n-play safe +/- 8KV ESD Protection
    FCC CE certified

  • Indicator

    R.S.S.I: 4 Blue LEDs
    Power: 1 Yellow LED for power
    Video Status: 1 Yellow LED for video
    Power Switch: On/Off

  • Enclosure Material

    Plastic/ Milled Aluminum

  • Mounting Accessories

    One 1/4"-20 screw hole
    One articulating arm
    One hot-shoe adapter

General

Jump to...
  • Dimensions (LxWxH)

    Transmitter: 4.5 x 2.64 x 0.9" (114.30 x 67.06 x 22.86mm) (Antennas not Included)
    Receiver: 6 x 3.74 x 0.9" (152.40 x 95.00 x 22.86mm) (Antennas not Included)

  • Weight

    Transmitter: 9.5 oz (269.32g)
    Receiver: 12.52 oz (354.94g)

About TRIGYN APEX 5G1K Kit

From the field to the studio, the APEX 5G1K Long-Range Wireless Video Transmission Kit by TRIGYN is a robust and advanced solution for professionals seeking to transmit high-definition video and audio wirelessly. With the capability to deliver 1080p 60fps uncompressed HD content up to an impressive distance of 600 feet, the APEX 5G1K stands out in the market, offering roughly double the range of many competing products.

Crafted with durability in mind, this high-quality kit includes two powerful antennas designed to enhance signal strength and ensure reliable, stable transmission even in challenging environments where interference is a concern. The inclusion of an ABS protection case further underscores the product's commitment to longevity and resilience in various operational conditions.

The APEX 5G1K is not only innovative in its long-range capabilities but also in its versatility. It features both HDMI and 3G-SDI inputs and outputs, accommodating a wide array of devices and setups. The support for 10-bit 4:2:2 video ensures that the integrity of your video's color and detail is maintained during transmission.

Flexibility is at the heart of the APEX 5G1K's design, offering options to operate on ten different frequencies to avoid congestion and maintain a clear signal. Its multicasting function is particularly noteworthy, allowing a single feed to be transmitted to up to four receivers simultaneously, which is ideal for multi-camera shoots or complex monitoring setups.

Additional advanced features include HDMI-SDI cross conversion for seamless signal integration and AES encryption to secure your wireless video feeds against unauthorized access. This level of security is paramount for broadcasters and live event producers who need to protect their content.

Moreover, the APEX 5G1K boasts cross-compatibility with all APEX models, including the APEX 5G2K and APEX 5G2K-T (Tally and Intercom), ensuring a cohesive and scalable system for users who may expand their setup in the future.

In summary, the APEX 5G1K Long-Range Wireless Video Transmission Kit is an exceptional choice for professionals who require a durable, high-quality, and innovative wireless transmission solution that delivers advanced features and reliable performance. Whether for outdoor surveillance, remote monitoring, or live event broadcasting, the APEX 5G1K is engineered to exceed expectations and enhance your video production capabilities.

TRIGYN APEX 5G1K Kit Features

  • High-definition, long-range wireless video transmission up to 600 feet
  • Includes two powerful antennas for enhanced signal strength and stability
  • Features both HDMI and 3G-SDI inputs and outputs for versatility
  • Supports 10-bit 4:2:2 video for maintaining color and detail integrity
  • Multicasting function for transmitting feed to up to four receivers simultaneously
  • Offers AES encryption for secure wireless video feeds and cross-compatibility with all APEX models

Key Features

  • Experience reliable video transmission with this long-range wireless system up to 1000'.
  • Enjoy high resolution, uncompressed wireless video with low latency for seamless monitoring.
  • The APEX 5G1K supports multicasting to up to 4 receivers, ideal for larger production crews.
  • Easy setup with plug-and-play functionality; includes all necessary cables and accessories.
  • Use the included articulating arm and hot-shoe adapter for versatile mounting options.
  • Rugged ABS case protects your wireless video transmitter and receiver during transport.

What's in the box:

  • TRIGYN Transmitter
  • Receiver
  • 2x Antennas
  • 2x Flat-Head Screwdrivers
  • 7 " Articulating Arm
  • 1/4-20 Screw to ISO518 Hotshoe Converter
  • Metal Clamp
  • 2x D-Tap to 4-Pin LEMO Converter Cable
  • User Manual
  • ABS Protection Case
  • 2x SDI Cables
  • 2x HDMI Cables
  • 2x Micro-HDMI Cables
  • TRIGYN 1 Year Warranty
