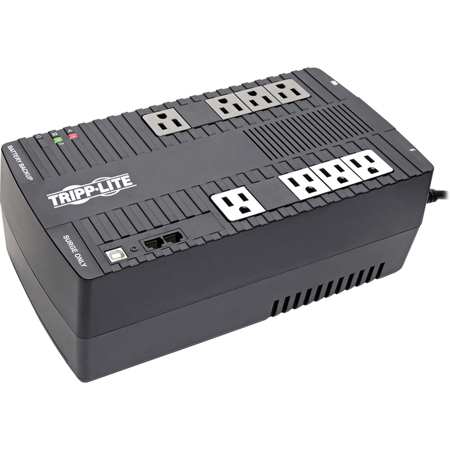

Tripp Lite AVR900U 12-Outlet 900VA/480W Line-Interactive UPS System

SKU: TLAVR900U MFR: AVR900U
Earn VIP Reward Points

Key Features

  • Ensure uninterrupted productivity with 900VA/480W power capacity, perfect for home office devices.
  • Experience reliable battery runtime, offering 10 minutes of backup for essential electronics during outages.
  • Safeguard your valuable equipment with robust surge protection and automatic voltage regulation (AVR).
  • Connect all your peripherals easily using the 12 versatile outlets, accommodating various devices.
  • Enjoy a compact desktop form factor that seamlessly integrates into any workspace without clutter.
  • Keep your critical systems running smoothly with cold-start operation, even during a complete power failure.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Tripp Lite AVR900U Specifications

Input
  • Input Phase

    Single-Phase

  • Rated input current (Maximum Load)

    10A

  • Nominal Input Voltage(s) Supported

    120V AC

  • UPS Input Connection Type

    5-15P

  • Input Circuit Breakers

    10A

  • UPS Input Cord Length

    5' (1.5m)

  • Recommended Electrical Service

    15A 120V

  • Maximum Input Amps

    10

  • Output Capacity

    900VA, 0.9kVA, 480Watts, 0.48kW

  • Nominal Voltage Details

    120v nominal output in battery mode

  • Frequency Compatibility

    50 / 60 Hz

  • Output Voltage Regulation (Line Mode)

    120V (+6%/-12%)

  • Output Voltage Regulation (Battery Mode)

    120V ( +/-10%)

  • UPS Output Receptacles

    6 UPS outlets, 6 surge-only outlets (Surge Suppression Only)

  • Hot-Swap PDU options

    PDUB15 (2U / 8 5-15R outlets)

  • Output AC Waveform (AC/Battery Mode)

    PWM sine wave

  • Nominal Output Voltages Supported

    110V; 115V; 120V

  • Output Receptacles

    (12) 5-15R

Battery

Jump to...
  • Battery

    Valve Regulated Lead Acid (VRLA)

  • Runtime Load (min.)

    Full: 2.7 min. (480W)
    Half: 10 min. (240W)

  • DC System Voltage (VDC)

    12

  • Battery Recharge Rate

    8 hours (10% to 90%) (Included Batteries)

  • Battery Access

    Battery access door

  • Internal UPS Replacement Batt. Cartridge

    RBC51

  • Battery Replacement Description

    Replaceable internal batteries

  • Battery Info

    Required, Included

  • Battery Material

    Lead-Acid

  • Battery Type

    Non universal

  • Battery Quantity

    1

Voltage Regulation

Jump to...
  • Voltage Regulation Description

    Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145

  • Overvoltage Correction

    Input voltages between 128 and 145 are reduced by 15%

  • Undervoltage Correction

    Input voltages between 89 and 108 are boosted by 18%

User Interface, Alerts & Controls

Jump to...
  • Switches

    Power off/on switch

  • Audible Alarm

    UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace battery conditions

  • LED Indicators

    2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

Surge / Noise Suppression

Jump to...
  • UPS Dataline Suppression

    1 line TEL/DSL or Ethernet

  • EMI / RFI AC Noise Suppression

    Yes

  • AC Suppression Joule Rating

    316

  • AC Suppression Response Time

    Instantaneous

Environmental

Jump to...
  • Operating Temperature Range

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature Range

    5 Degree to 113 Degree F (-15 Degree to 45 Degree C )

  • Relative Humidity

    0-90% non-condensing

  • AC Mode BTU / Hr. (Full Load)

    41

  • AC Mode Efficiency Rating (100% Load)

    >96%

  • Operating Elevation

    0-10000' (0-3000m)

Communications

Jump to...
  • Communications Cable

    USB interface cable included

  • WatchDog Compatibility

    Supports Watchdog application, OS and hard-reboot restart options for remote applications

  • Network Management Card Description

    Network management not supported

  • Communications Interface

    USB (HID enabled)

Line / Battery Transfer

Jump to...
  • Transfer Time

    6 milliseconds typical (10 milliseconds max)

  • Low Voltage Transfer to Battery Power

    89 (Setpoint)

  • High Voltage Transfer to Battery Power

    145 (Setpoint)

Features

Jump to...
  • Cold Start

    Cold-start operation supported (Startup in Battery Mode During a Power Failure)

  • High Availability UPS Features

    Automatic Voltage Regulation (AVR); Surge/noise protection

  • Green Energy-Saving Features

    Greater than 95% efficiency - GREEN UPS

  • Grounding Details

    Includes optional side-panel grounding lug

Applications

Jump to...
  • UPS Applications

    Home/Office Desktop; Audio/Video; Retail/Point of Sale; Hospitality

Standards & Compliance

Jump to...
  • Certifications

    RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778

  • Compliance

    ENERGY STAR Qualified; RoHS; FCC Part 15 Class A (USA)

General

Jump to...
  • Color

    Black

  • Material

    ABS

  • UPS Type

    Line-Interactive

  • Primary Form Factor

    Desktop

  • Rack Height

    0U

  • Installation Form Factors Supported

    Tower; Ultra-compact desktop; Wall mount (with Included Accessories)

  • Country of Origin

    Taiwan

  • Dimensions (H x W x D)

    4.14 x 7.48 x 12" (10.52 x 19 x 30.4cm)

  • Weight

    16.5 lbs (7.4kg)

  • UPC Code

    037332211491

About Tripp Lite AVR900U

Desktop UPS provides battery backup support with automatic voltage regulation (AVR) for your home/office network system or home theater.

900VA/480W/120V Battery Backup for PCs, Home Theater or Digital Signage
The line-interactive AVR900U UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, over voltages, surges and line noise that can damage valuable electronics or destroy data. The 12-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.

Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 47 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

12 NEMA 5-15R Outlets Protect Your Connected Components
Six 5-15R outlets provide battery backup, surge protection and voltage regulation for your computer, monitor and other crucial components. The other six 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout. A high >96% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and over voltages. The AVR900U can correct brownouts as low as 89V and over voltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.

316 Joules Fight Back Against Unexpected Power Surges
A 316-joule surge suppression rating protects connected components from the harmful effects of power surges.

Combats Electromagnetic Interference That Can Harm Equipment
Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The AVR900U incorporates technology that filters out disruptive line noise so that it won't affect your equipment.

Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
The UPS remains silent in both line and battery backup modes. The alarm sounds only to report low battery, battery replace, overload and fault condition. Dual front-panel LEDs report line and battery mode operation.

HID-Compliant USB Port Allows for Automatic Saves and Shutdowns
This USB port connects the AVR900U to a computer running free downloadable Power Alert software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included.

Compact Housing Compatible with Easy Desktop or Wall-Mount Installation
The space-saving ABS housing fits on a desktop, shelf or anywhere else convenient to your workstation or home theater. Keyhole mounting tabs on the rear allow easy wall-mount installation. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.

Tripp Lite AVR900U Features

  • Protects equipment against blackouts, brownouts, over voltages, surges and line noise
  • Keeps AC power running during blackouts to allow time for file saves and safe shutdown
  • 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
  • Home-friendly alarm remains silent in backup mode, sounding only when imperative
  • High >96% efficiency with low BTU ratings saves electricity and lowers your energy costs

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Ensure uninterrupted productivity with 900VA/480W power capacity, perfect for home office devices.
  • Experience reliable battery runtime, offering 10 minutes of backup for essential electronics during outages.
  • Safeguard your valuable equipment with robust surge protection and automatic voltage regulation (AVR).
  • Connect all your peripherals easily using the 12 versatile outlets, accommodating various devices.
  • Enjoy a compact desktop form factor that seamlessly integrates into any workspace without clutter.
  • Keep your critical systems running smoothly with cold-start operation, even during a complete power failure.

What's in the box:

  • Tripp Lite AVR900U 12-Outlet 900VA/480W Line-Interactive UPS System
  • USB Cable
  • User Manual
  • Tripp Lite 3 Year Limited Warranty
