Traynor SB500H Small Block 500W Ultra-Compact and Lightweight Bass Head with 4-Band EQ, Low Frequency Expander

SKU: TRSB500H MFR: SB500H
Earn VIP Reward Points

Key Features

  • Experience powerful bass tones with this 500-watt Traynor bass amp head for any gig.
  • Shape your sound perfectly using the responsive 4-band EQ control on this bass head.
  • Ultra-compact and lightweight at only 4lbs, this bass amplifier head is easy to transport.
  • Enjoy reliable performance with built-in clip, thermal, and overcurrent protection features.
  • Connect seamlessly with Speakon outputs & balanced line out for recording or live sound.
  • Use the low frequency expander to add depth, making this bass amp head perfect for any style.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Traynor SB500H Specifications

  • Power @ Min. Impedance

    500 Watt

  • Minimum Impedance

    4 Ohm

  • Burst Power 2 Cycle

    600 Watt

  • Inputs

    Passive 0 dB, Active -6 dB

  • Controls

    Gain, Bass, Low Mid, High Mid, Treble, Low Expander, Master Volume

  • Inline Effects Loop

    Yes - 1/4-inch Send and Return- Rear

  • Line Out (type / configuration)

    Balanced Pre/Post EQ Line Out with Ground Lift Switch

  • Line Out Sensitivity (Vrms)

    1 Vrms

  • LED Indicators

    Blue - Power / Red - Protect/Mute

  • Protection

    Clip, Thermal, Overcurrent

  • External Speaker Output/Location

    Speakon (x2 - Rear)

  • Other Features

    Headphone Out /Mute / Tuner Out

  • Dimensions (D x W x H)

    9.5 x 12 x 2.5" (22 x 30 x 6.5cm)

  • Weight

    4.0 lb (1.8kg)

  • UPC Code

    840402034759

About Traynor SB500H

Delivering a full 500 Watts at 4 ohms, the ultra compact and lightweight Traynor SB500H is the ideal professional bass head for the musician on the move. Loaded with essential features including Active and Passive level instrument inputs XLR DI output, a versatile four band EQ with an additional low frequency expander, the SB500H allows virtually any tone to be dialed in quickly and easily.

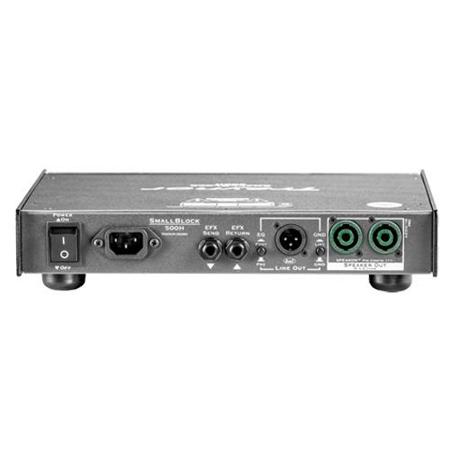

The all-metal chassis with front mounted handles to protect the knobs and jacks ensures the SB500H is fully road ready. A rear mounted in-line effects loop, selectable Pre/Post EQ XLR DI output, front mounted tuner out (with mute) and heavy duty Speakon speaker outs are included.

Traynor SB500H Features

  • 500-watt Ultra Compact and Lightweight Bass Head
  • Versatile 4-band EQ with Additional Low Frequency Expander
  • All-Metal Chassis
  • Active and Passive Inputs
  • Selectable Pre / Post EQ XLR DI Output
  • Rear Mounted In-Line Effects Loop
  • Speakon Outputs
  • Made in Canada

Key Features

  • Experience powerful bass tones with this 500-watt Traynor bass amp head for any gig.
  • Shape your sound perfectly using the responsive 4-band EQ control on this bass head.
  • Ultra-compact and lightweight at only 4lbs, this bass amplifier head is easy to transport.
  • Enjoy reliable performance with built-in clip, thermal, and overcurrent protection features.
  • Connect seamlessly with Speakon outputs & balanced line out for recording or live sound.
  • Use the low frequency expander to add depth, making this bass amp head perfect for any style.

What's in the box:

  • SB500H Small Block 500W Ultra-Compact Bass Head
  • Traynor 2 Year Warranty
